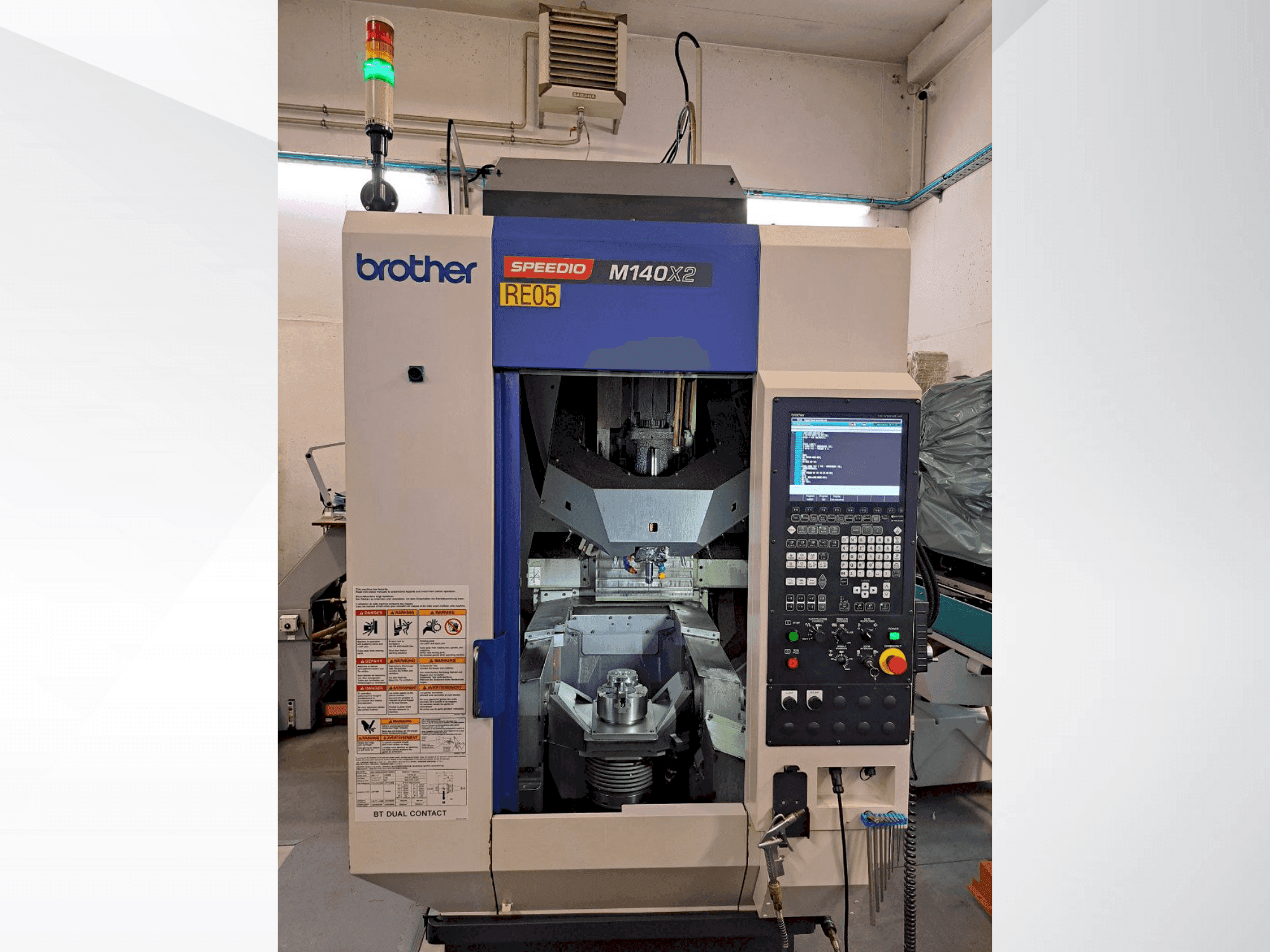

Front view of Brother SPEEDIO M140X2  machine

Brother SPEEDIO M140X2

Brother - SPEEDIO M140X2

2017

Rs. 9,641,750
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-Axis vertical machine center was manufactured in 2017. With a machining area of 200mm x 440mm x 305mm, the BROTHER Speedio M140X2 offers precise positioning accuracy of 0.006mm and repeatability of less than 0.004mm across its 5 axes. Equipped with a D140 spindle, it boasts a tool change speed of 0.9 seconds and a tool storage capacity of 22 tools. Invest in this BROTHER Speedio M140X2 vertical machine center for efficient and accurate machining operations. Contact us for further information.

Overview

  • brand: Brother
  • year: 2017
  • MODEL: SPEEDIO M140X2
  • production hours: 2609
  • application type: Milling
  • Location: Slovenia
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • GINDUMAC ID: SI-MIL-BRO-2017-00001

Technical Information

General Data

  • Machine weight: 2603 KG

Main drive

  • Spindle speed range: Maximum 6000 1/MIN
  • Tool taper: 7/24 taper No. 30

Tools

  • Slots in storage: 22
  • Max weight: 3 KG
  • Max tool diameter: 80 MM
  • Max tool length: 200 MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Machining area dimensions: x axis - 200 mm, y axis - 440 mm, z axis - 305 mm
      • - Spindle type: d140
      • - Tool change speed: 0. 9 seconds
      • - Power supply: ac v±10%, 50/60hz±1hz
      • - Recommended air pressure: 0. 5 mpa
      • - Recommended floor space: 1,280 mm x 3,829 mm
      • - Positioning accuracy: 0. 006 mm for x, y, z axes
      • - Repeatability positioning: less than 0. 004 mm for x, y, z axes
      • - Tool selection mode: random shortcut
      • - Main spindle power (10 minutes / continuous): 7/24 taper no. 30, 10. 1 kw / 9. 5 kw at 10,000 revolutions per minute (option)

    Extra information

    • - -Axis movement motors: 1 kW for X, Y, Z axes -Rotary spindle motor: 0.4 kW -Power supply: 10.1 kW at 10,000 revolutions per minute (option)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
