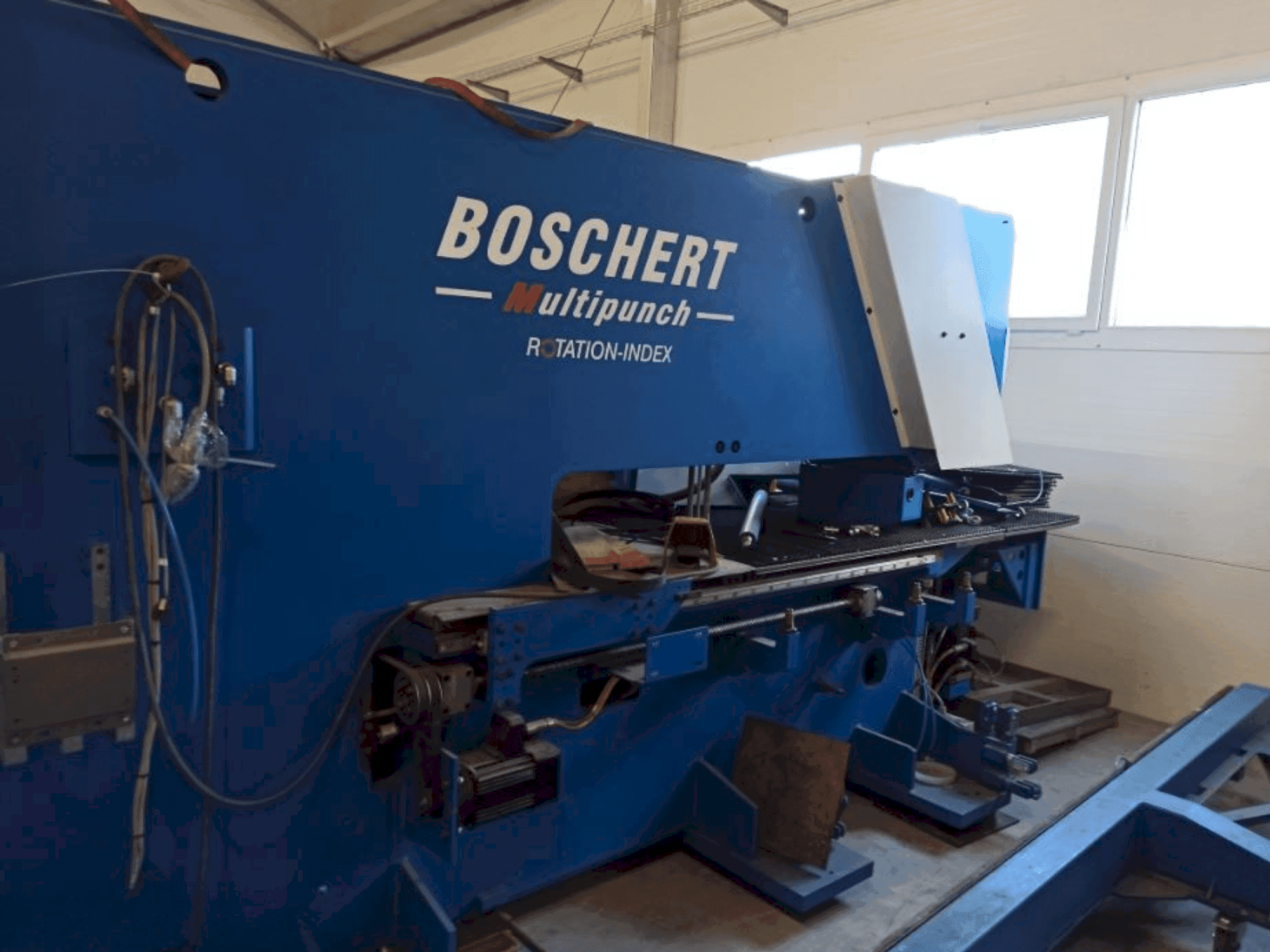

BOSCHERT MULTIPUNCH 1250

Photo Gallery

BOSCHERT - MULTIPUNCH 1250PL-PUN-BOS-2013-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used BOSCHERT MULTIPUNCH 1250 For Sale | gindumac.com

Show in original language

This BOSCHERT MULTIPUNCH 1250 was manufactured in 2013. Ideal for those in need of a reliable CNC punching machine. Contact us for more information.

Overview

brand: BOSCHERT
year: 2013
MODEL: MULTIPUNCH 1250
application type: Punching
Location: Poland
machine type: CNC Punching Machine

Technical Information - BOSCHERT MULTIPUNCH 1250

Dimensions

Machine Depth: 1250 mm
Machine Weight: 14000 kg

Additional Information

Additional equipment

Options included: 3x Revotool/ Tool holders, sizes 1 and 2 / Some additional tools as shown in the photos

Machine Benefits

Qualitative Machine Benefits

The machine had a general overhaul in 2020 and was in operation until 2023.
In 2023, the x-axis started to fail – it lost accuracy when punching holes.
The hydraulic system is expected to be in working condition.
The electrical system is mostly complete, but a few components are missing: one servo drive, one motor protection fuse, and one cabinet fan.

Technical Machine Benefits

Max. Positioning speed (x-axis): 60 m/min/max. Positioning speed (y-axis): 60 m/min/max. Positioning speed (x & y simultaneous): 85 m/min
Max. Workpiece weight: 200 kg
Max. Sheet thickness: 7 mm/max. Sheet length: 9999 mm (by repositioning)
Revotool: 4 mm/tooling system: trumpf® tooling system/max. Punching diameter: 70 mm or any shape within 70 mm/tool changing time: 1–5 seconds
Max. Hydraulic punching power: 280 kn
Max. Strokes (standard hydraulic): 250 strokes/min/max. Strokes (fast hydraulic): 800 strokes/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
