➤ Used TRUMPF Trupunch 3000 S11 For Sale | gindumac.com

Show in original language

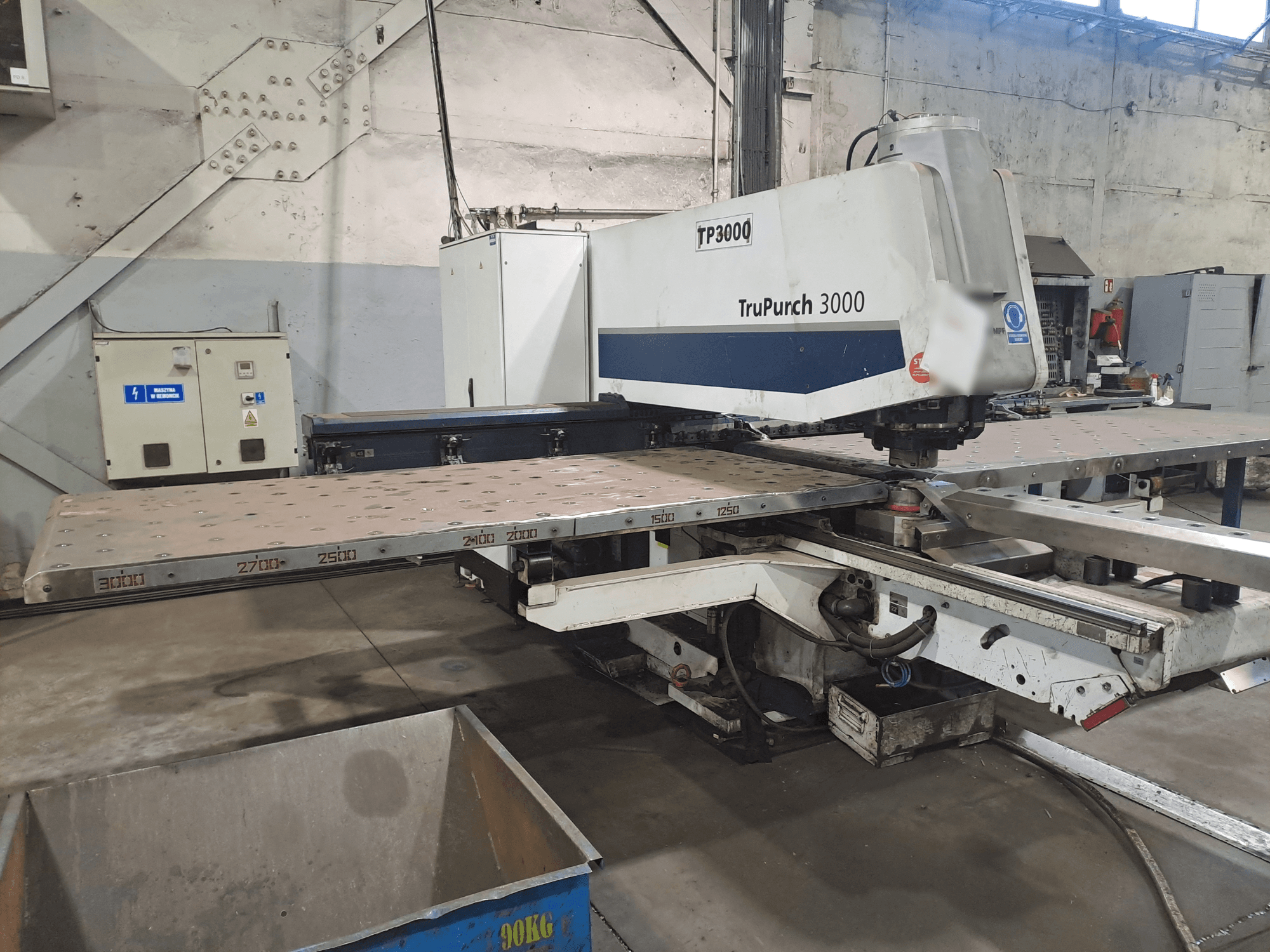

This TRUMPF TruPunch 3000 S11 was manufactured in 2012. It features a Bosch MTX CMP70 control system, with X/Y-axis travels of 2500 / 1250 mm, and can handle sheet weights up to 160 kg. The machine includes a linear tool magazine with 18 stations and offers functions like MultiTool, MultiBend, and thread forming. Consider the opportunity to buy this TRUMPF TruPunch 3000 S11 CNC punching machine. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2012
MODEL: Trupunch 3000 S11
application type: Punching
Location: Poland
machine type: CNC Punching Machine
control unit brand: BOSCH

Technical Information - TRUMPF Trupunch 3000 S11

Control Unit

Control Brand: BOSCH
Control Model: MTX CMP70

Dimensions

Machine Height: 2252 mm
Machine Length: 6500 mm

Movement

X-axis Travel: 2500 mm
Y-axis Travel: 1250 mm

Technical Specification

Max. Sheet Thickness: 6.4 mm
Punching Force: 180 Kn

Additional Information

Maximum sheet weight: 160 kg
Performance:
- Punching strokes (E = 1 mm): 1000 strokes/min
- Marking strokes: 2500 strokes/min
- MultiTool tool-change time: 0.3 s
Power consumption:
- Standby with auto-shutdown: 0.3 kW (average)
- During production: 5.6 kW (average)
Equipment & features:
- MultiTool function
- MultiBend function
- Thread forming function with tool breakage monitoring
- Surface marking/embossing function
- Deburring and roller technology
Tool magazine: Linear, 18 stations
Documentation: TruPunch 3000 documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
