TRUMPF - TRUMATIC 5000RPL-PUN-TRU-2001-00002

Rs. 2,701,492
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

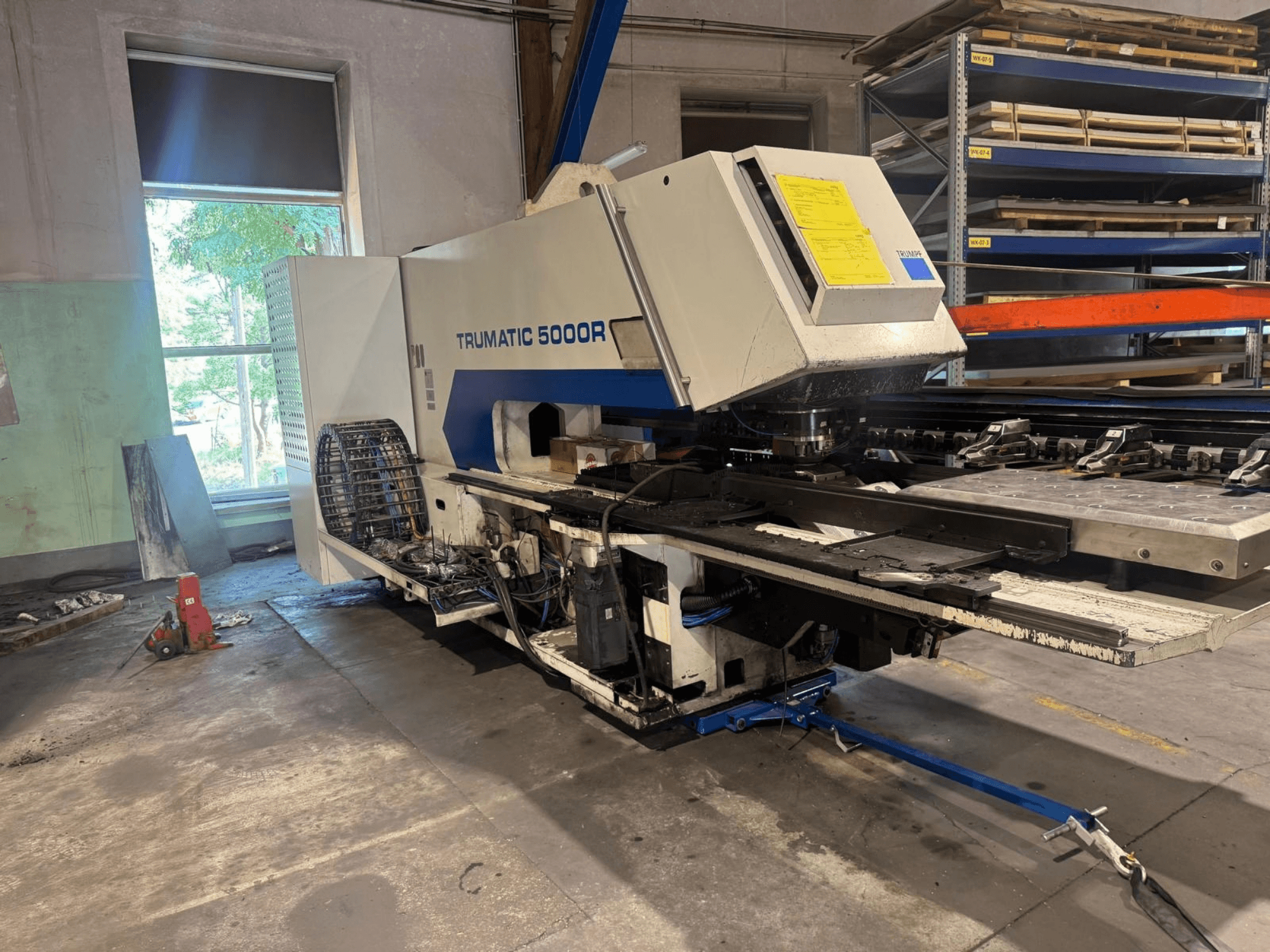

CNC punching machine manufactured in 2001. This TRUMPF TRUMATIC 5000 R features a maximum punching force of 220 kN and a working area of 2,535 × 1,280 mm. It is equipped with a Siemens SINUMERIK 840D control system and a tool magazine with 18 positions. If you are looking to get high-quality punching capabilities, consider the TRUMPF TRUMATIC 5000 R machine we have for sale. Contact us for further details.

Overview

  • brand: TRUMPF
  • year: 2001
  • MODEL: TRUMATIC 5000R
  • application type: Punching
  • Location: Poland
  • machine type: CNC Punching Machine
  • control unit brand: SIEMENS

Technical Information - TRUMPF TRUMATIC 5000R

Control Unit

  • Control Brand: SIEMENS
  • Control Model: SINUMERIK 840D

Dimensions

  • Machine Weight: 17500 kg

Technical Specification

  • Max. Sheet Thickness: 8 mm
  • Punching Force: 2200 Kn

Additional Information

  • Working area without repositioning: 2,535 × 1,280 mm

  • Maximum workpiece weight: 230 kg

  • Maximum positioning speed (X): 100 m/min

  • Maximum positioning speed (Y): 60 m/min

  • Maximum simultaneous positioning speed (X/Y): 116 m/min

  • Maximum punching rate: 1,200 strokes/min

  • Maximum tool diameter: 76.2 mm

  • Tool magazine: 18-position linear magazine

  • Drive system: Hydraulic

  • Compressed-air connection: 7–14 bar

  • Electrical supply: 400 V / 50 Hz

  • Connected load: 29 kVA

  • Control voltage: 24 V DC

  • Required fuse protection: 3 × 50 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
