TRUMPF - TRUPUNCH 3000 (S11) AE-PUN-TRU-2012-00001

Rs. 6,603,414
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

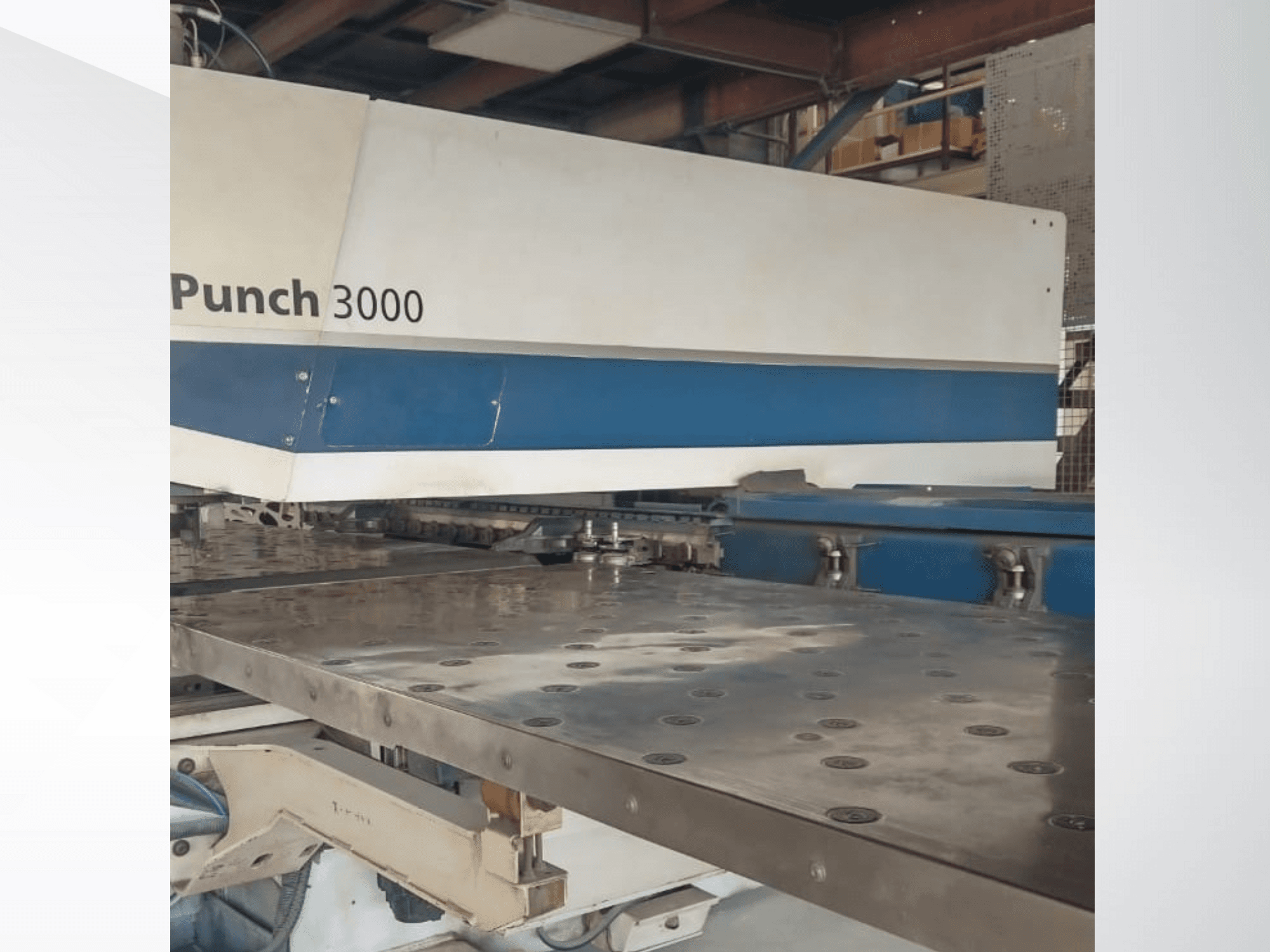

This TRUMPF TRUPUNCH 3000 (S11) was manufactured in 2012. It features a Bosch Rexroth MTX CMP70 control, a maximum sheet format of 2,500 × 1,250 mm, and can handle sheet thicknesses up to 6.4 mm. The punching force reaches 180 kN, with a maximum workpiece weight of 160 kg. It includes a linear magazine with 20 stations and supports various roller tools. Consider the opportunity to buy this TRUMPF TRUPUNCH 3000 (S11) CNC punching machine. Contact us for more information.

Overview

  • brand: TRUMPF
  • year: 2012
  • MODEL: TRUPUNCH 3000 (S11)
  • production hours: 17724
  • application type: Punching
  • Location: United Arab Emirates
  • machine type: CNC Punching Machine

Technical Information - TRUMPF TRUPUNCH 3000 (S11)

Dimensions

  • Machine Depth: 6500 mm
  • Machine Height: 2252 mm
  • Machine Length: 5000 mm
  • Machine Weight: 9300 kg

Additional Information

  • X-axis speed: 90 m/min

  • Y-axis speed: 60 m/min

  • Simultaneous X/Y speed: 108 m/min

  • C-axis speed: 330 rpm

  • Max. punching force: 180 kN

  • Max. pressure foot force: 20 kN

  • Max. workpiece weight: 160 kg

  • Max. sheet thickness: 6.4 mm

  • Max. sheet format: 2500 × 1250 mm (with repositioning)

  • Electrical connected load: 18 kVA

  • Fuse protection: 35 A

  • Pneumatic connection: 7–14 bar

  • Compressed air consumption: 8–10 Nm³/h

  • Tapping

  • Filling level inspection

  • Multibend

  • Multitool

  • Roller tools including cutting, pinching, folding, beading, knurling, deburring

  • Monitoring filling level

  • Hydraulic unit

  • Punch lubrication

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
