UZMA - MAKINA PDM 30HU-PUN-UZM-2012-00001
Rs. 2,897,343
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used UZMA MAKINA PDM 30 For Sale | gindumac.com
Show in original language

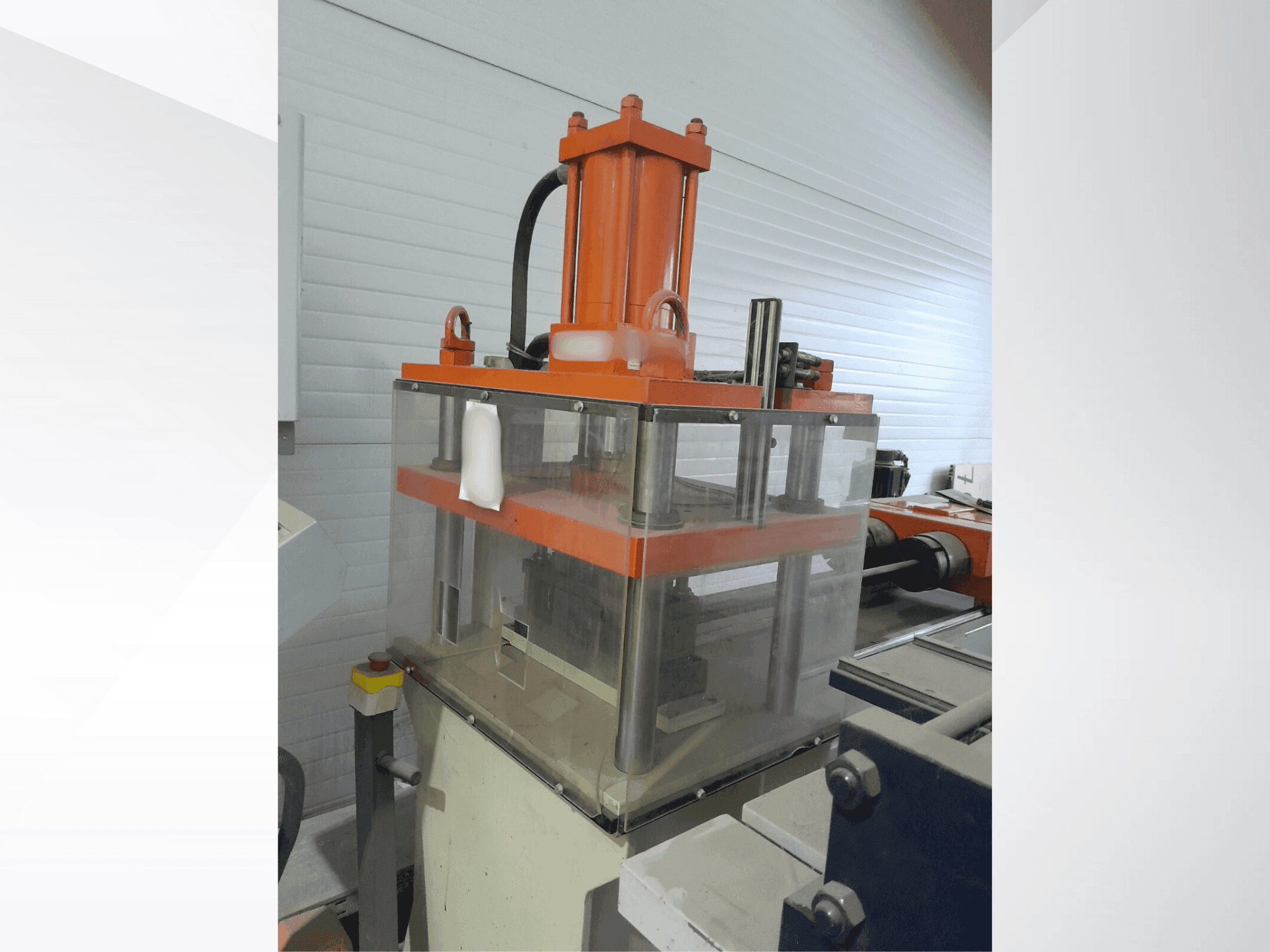

This UZMA MAKINA PDM 30 was manufactured in 2012. It features an electronic PLC with a standalone control system, a maximum tube diameter of 90 mm, and a profile size up to 40 x 80 / 60 x 60 mm. The hydraulic motor power is 4 kW, with a total motor power of 5.5 kW. Consider the opportunity to buy this UZMA MAKINA PDM 30 CNC punching machine. Contact us for more information.
Overview
- brand: UZMA
- year: 2012
- MODEL: MAKINA PDM 30
- application type: Punching
- Location: Hungary
- machine type: CNC Punching Machine
Technical Information - UZMA MAKINA PDM 30
Dimensions
- Machine Depth: 4000 mm
- Machine Height: 1000 mm
- Machine Weight: 2000 kg
Additional Information
Machine Benefits
Technical Machine Benefits
- Hydraulic motor power (kw): 4 kw
- Maximum tube diameter (mm): 90 mm
- Maximum profile size (mm): 40 x 80 mm / 60 x 60 mm
- Maximum wall thickness (mm): 3 mm
- Tube feeding speed (mm/sec): 350 mm/sec
- Maximum hydraulic pressure (bar): 190 bar
- Oil tank capacity (l): 150 l
- Network frequency: 380 v / 50 hz / three-phase
- Control voltage: 24v dc
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
