TRUMPF - Trumatic 500NL-PUN-TRU-1995-00001

Rs. 1,604,562
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

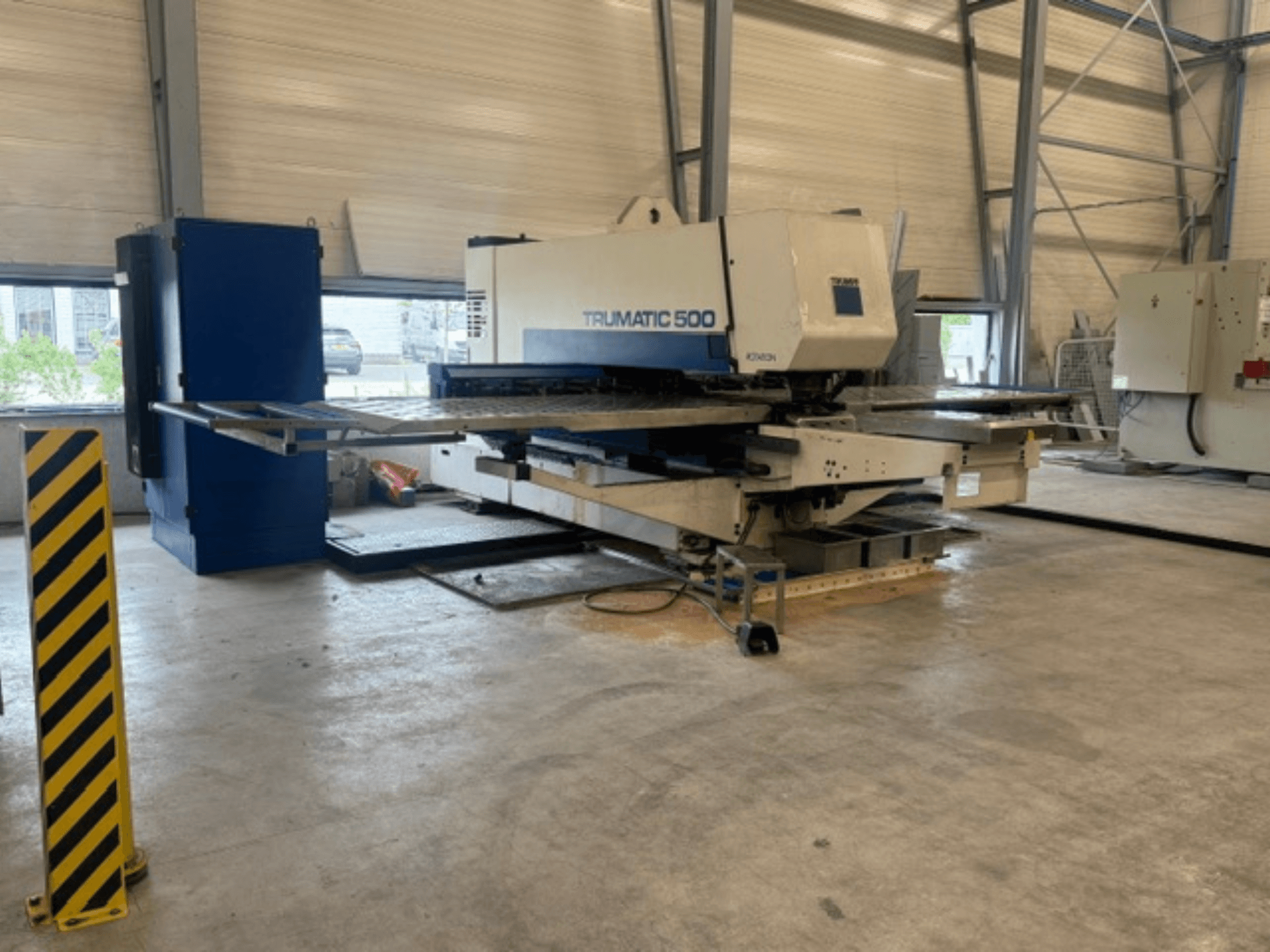

CNC punching machine manufactured in 1995. This TRUMPF Trumatic 500 features a maximum punching force of 220 kN, accommodating workpieces up to 150 kg. It offers a working range of 2500 mm along the X-axis and 1250 mm along the Y-axis, allowing for efficient processing of various sheet sizes. If you are looking to get high-quality punching capabilities, consider the TRUMPF Trumatic 500 machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: TRUMPF
  • year: 1995
  • MODEL: Trumatic 500
  • application type: Punching
  • Location: Netherlands
  • machine type: CNC Punching Machine

Technical Information - TRUMPF Trumatic 500

Dimensions

  • Machine Height: 2300 mm
  • Machine Length: 6900 mm
  • Machine Weight: 11050 kg
  • Machine Width: 6000 mm

Movement

  • Number of Axes: 2

Technical Specification

  • Max. Sheet Thickness: 6 mm
  • Punching Force: 220 Kn

Additional Information

  • Condition: In working condition; normal signs of use (scratches/dirt, especially near punch head); floor wear visible

  • Max sheet thickness (steel): 6 mm

    • Note: Current tooling set is suitable for up to 1.5 mm sheet thickness

  • Max punch diameter: 76.2 mm

  • Max workpiece weight: 150 kg

  • Working range: X = 2500 mm without repositioning (4 m sheets previously processed using repositioning/extension tables); Y = 1250 mm

  • Axis speeds: X up to 90 m/min; Y up to 60 m/min

  • Stroke rate (nibbling): up to 900 strokes/min

  • Table/Design: Flat perforated work table; mechanical punching head with hydraulic/pneumatic lines; long material support arm; control panel on cabinet with display, controls, and emergency stop

  • Utilities: 400 V / 50 Hz / 3-phase; connected load approx. 17 kVA; compressed air 6 bar

Additional equipment

  • Large set of punches, dies, and tool holders (complete tooling set)

  • Large metal cabinet with shelving for tool storage

  • Metal scrap container on casters (under-table)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
