TRUMPF - TRUMATIC 120RPL-PUN-TRU-1991-00002

Rs. 1,326,856
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

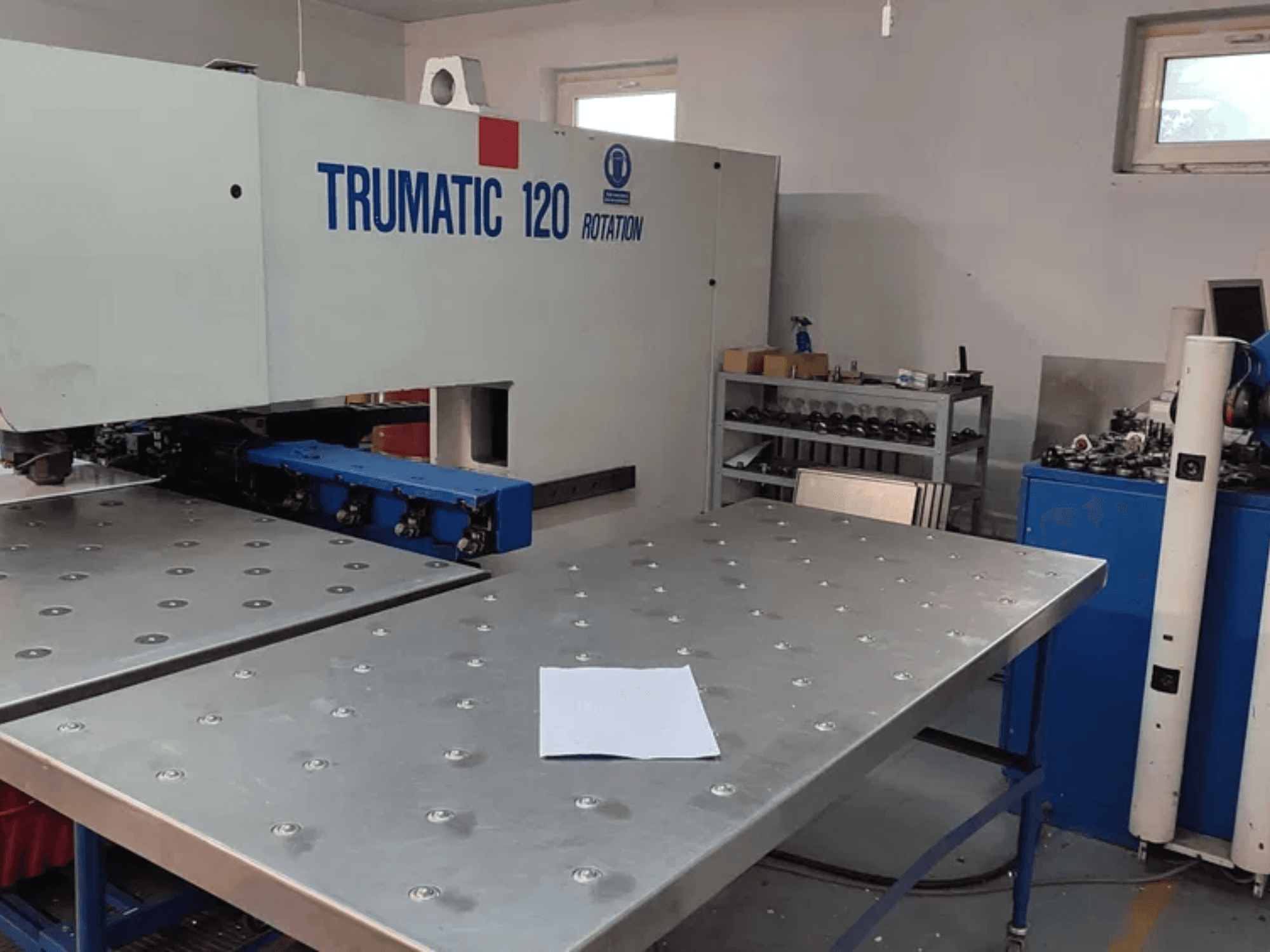

CNC punching machine manufactured in 1991. This TRUMPF TRUMATIC 120R features a punching force of 15 tons and a maximum punching diameter of 38 mm. It offers a working area of 1000 x 2000 mm with repositioning and includes a complete set of tools. If you are looking to get high-quality punching capabilities, consider the TRUMPF TRUMATIC 120R machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: TRUMPF
  • year: 1991
  • MODEL: TRUMATIC 120R
  • application type: Punching
  • Location: Poland
  • machine type: CNC Punching Machine

Technical Information - TRUMPF TRUMATIC 120R

Dimensions

  • Machine Length: 3800 mm
  • Machine Weight: 4300 kg

Technical Specification

  • Punching Force: 150 Kn

Additional Information

  • Maximum sheet thickness: 4 mm

  • Maximum punching diameter: 38 mm

  • Working area without repositioning: 1000 x 1000 mm

  • Working area with one repositioning: 1000 x 2000 mm

  • X/Y axis speed: not specified

  • Rotation speed: 360 degrees per second (full rotation)

  • Maximum stroke rate: 340 strokes per minute

  • Control system: TRUMAGRAPH CC 200

  • Automatic tool change: 9 tool stations

  • Power requirement: 15 kVA / 50 Hz

  • Documentation: Complete documentation included, together with machine history

Additional equipment

  • Large set of tools

  • Two additional tables to extend the working area

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
