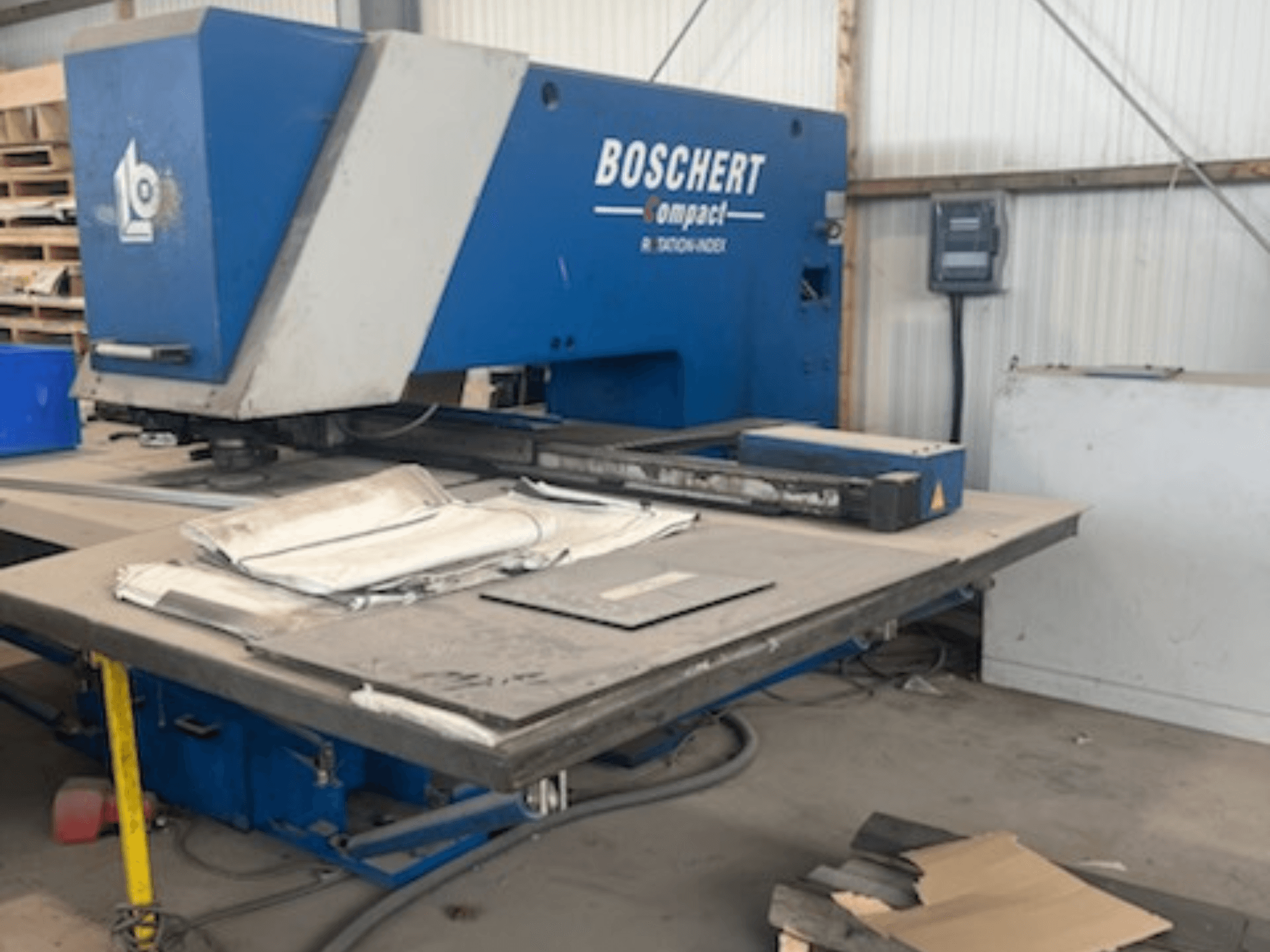

CNC Punching Machine manufactured in 2007. This BOSCHERT Compact 1000 features a working range of 1,000 × 2,000 mm and a maximum punching force of 280 kN. It is capable of handling workpieces up to 150 kg and can punch holes with a diameter of 105 mm. If you are looking to get high-quality sheet metal punching capabilities, consider the BOSCHERT Compact 1000 machine we have for sale. Contact us for further details.
Overview
- brand: BOSCHERT
- year: 2007
- MODEL: COMPACT 1000
- application type: Punching
- Location: France
- machine type: CNC Punching Machine
Technical Information - BOSCHERT COMPACT 1000
Dimensions
- Machine Height: 2020 mm
- Machine Length: 4900 mm
- Machine Weight: 9300 kg
- Machine Width: 3210 mm
Technical Specification
- Max. Sheet Thickness: 4 mm
- Punching Force: 280 Kn
Additional Information
Condition: Very good technical condition
Machine status: Under power
Previous application: Aluminium sheets, 1–3 mm thickness
Tools included: No
Working area
Working range without clamp reduction: 1,000 × 2,000 mm
Maximum X-axis travel with repositioning: 9,999 mm
Maximum workpiece weight: 150 kg
Punching unit
Maximum punched-hole diameter in one stroke: 105 mm
Nibbling frequency: 500 strokes/min
Axis speeds
Max X-axis positioning speed: 60 m/min
Max Y-axis positioning speed: 30 m/min
Max simultaneous X/Y positioning speed: 67 m/min
Accuracy
Machine tolerance (VDI 3441): ±0.1 mm
Tooling
Manual tool-change time: approx. 15 s
Maximum number of tools with RevoTool: 8
RevoTool change time: approx. 3 s
Revo Tools shown in the advertisement: Not included
Electrical data
Main circuit breaker: 32 A slow, 50 A
Installed power: 20 kVA / 25 kVA
Additional notes
Software requires an update (machine not used for ~2 years)
Loading and transport are not included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
