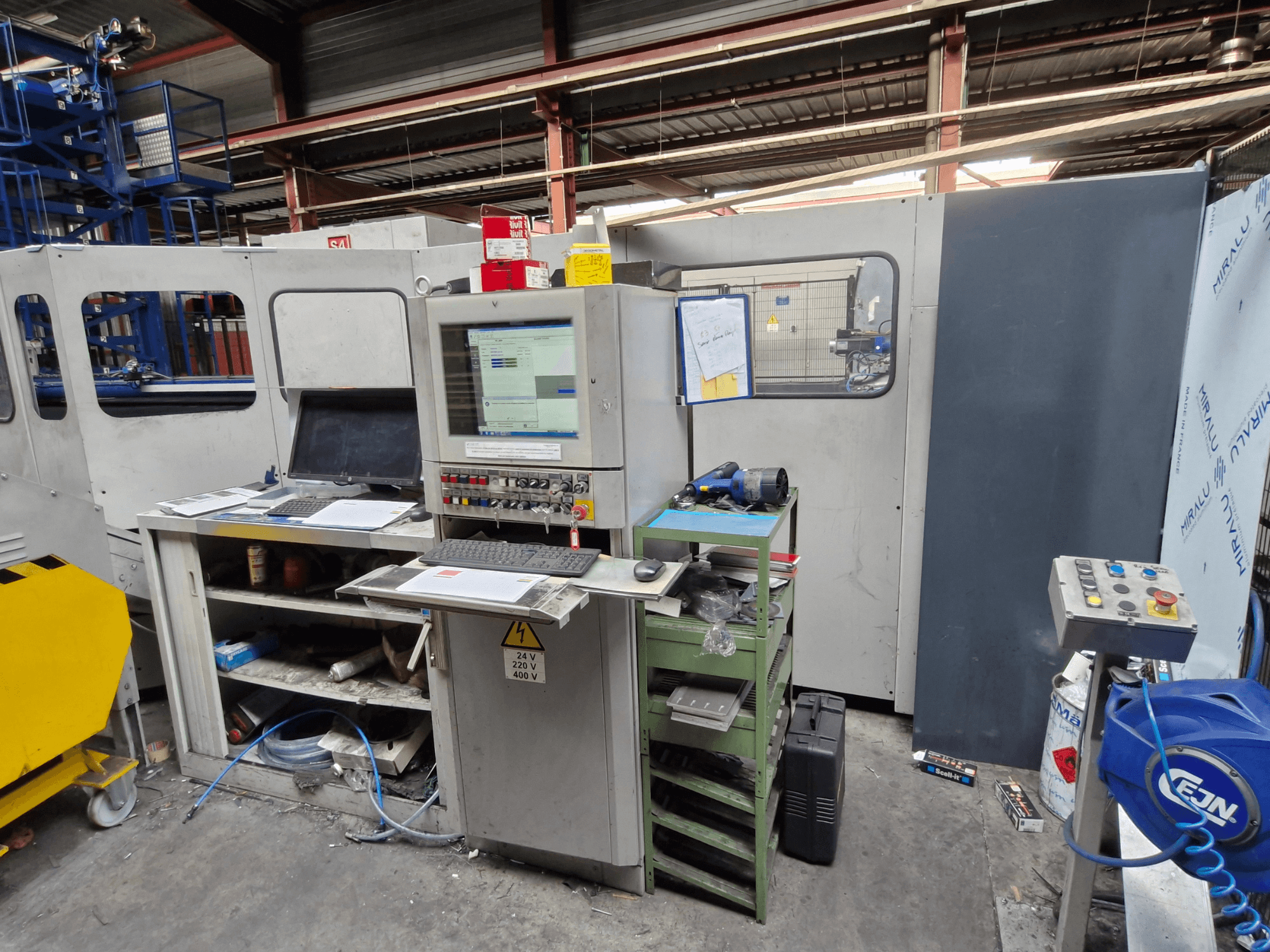

Salvagnini - S4-40FR-PUN-SAL-2001-00001

• Punching head: H-type

  • 40 stations – 70 kN

  • 4 stations – 120 kN

  • 2 rotating stations – 120 kN

  • 2 lower embossing stations (tonnage to be confirmed)

• Sheet capacity:

  • Maximum sheet size: 4064 x 1524 mm

  • Minimum finished part size: 250 x 80 mm

• Material thickness capacity:

  • Mild steel (410 N/mm²): 3.5 mm

  • High strength steel (600 N/mm²): 2.0 mm

  • Aluminium (260 N/mm²): 5.0 mm

  • Stainless steel: 3.5 mm

• Processable material strength:

  • 600 N/mm² at 2 mm thickness

  • 410 N/mm² at 3.5 mm thickness

  • 260 N/mm² at 5 mm thickness

• Electrical data:

  • Voltage: 400 V

  • Frequency: 50 Hz

  • Installed power: 79 kVA

  • Nominal current: 114 A

• Compressed air: 6–12 bar required pressure

• Nominal punching force: approx. 300 kN / 30 tons (to be confirmed; exact official records/nameplate data not available)

• Recorded hours: 53,019 h (2025 service report)

Additional equipment

• Loader magazine: MD4015
