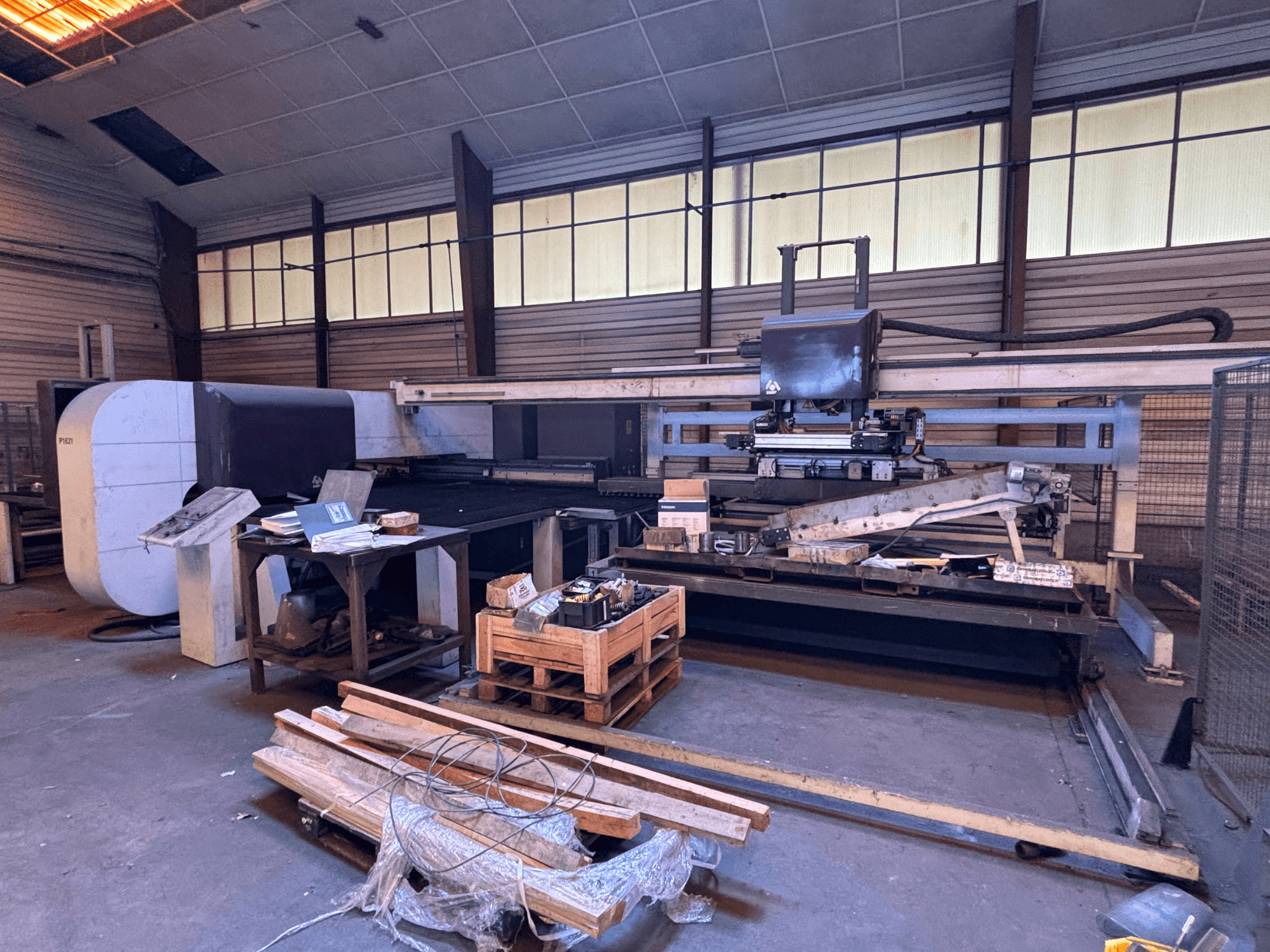

CNC Punching Machine manufactured in 2005. This DANOBAT P1631 features a punching force of 30 tons and can handle a maximum sheet thickness of 6 mm. It includes an automatic loading system, servo-driven axes, and a hydraulic punching system. If you are looking to get high-quality punching capabilities, consider the DANOBAT P1631 machine we have for sale. Contact us for further details.
Overview
- brand: DANOBAT
- year: 2005
- MODEL: P1631
- application type: Punching
- Location: France
- machine type: CNC Punching Machine
- control unit brand: FAGOR
Technical Information - DANOBAT P1631
Control Unit
- Control Brand: FAGOR
- Control Model: CNC 8070 Compact
Technical Specification
- Max. Sheet Thickness: 6 mm
- Punching Force: 300 Kn
Additional Information
Machine features:
Servo-driven axes
Hydraulic punching system
Bosch hydraulic axis system
Sercos bus communication
Central lubrication system
Automatic indexing system
Scrap extraction system
Scrap suction unit
Optical safety barriers
Automatic clamps: 3 pcs
Sheet thickness measuring system
Encoder feedback on servo axes
Axes:
X axis
Y axis
Y1 axis
T Punch axis
T Die axis
C Punch axis
C Die axis
U2 loading axis
V axis (hammer rotation)
Z3 axis (sorting axis vertical up/down movement)
U3 axis (sorting arm lateral movement)
V3 axis (sorting arm lateral movement)
W3 axis (sorting arm lateral movement)
X3 axis (sorting system translation axis)
Electrical data:
Voltage: 3x400V + PE
Frequency: 50/60 Hz
Main transformer: 30 kVA
24V / 20A power supply
Additional equipment
Automatic sheet loader (automatic loading system)
Automatic sheet elevator
Vacuum sheet handling system
Vacuum suction cups
Sheet separator blowing system
Ultrasonic height detector
Automatic centering system
OMRON inverter system
Electrical cabinet cooling fan
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
