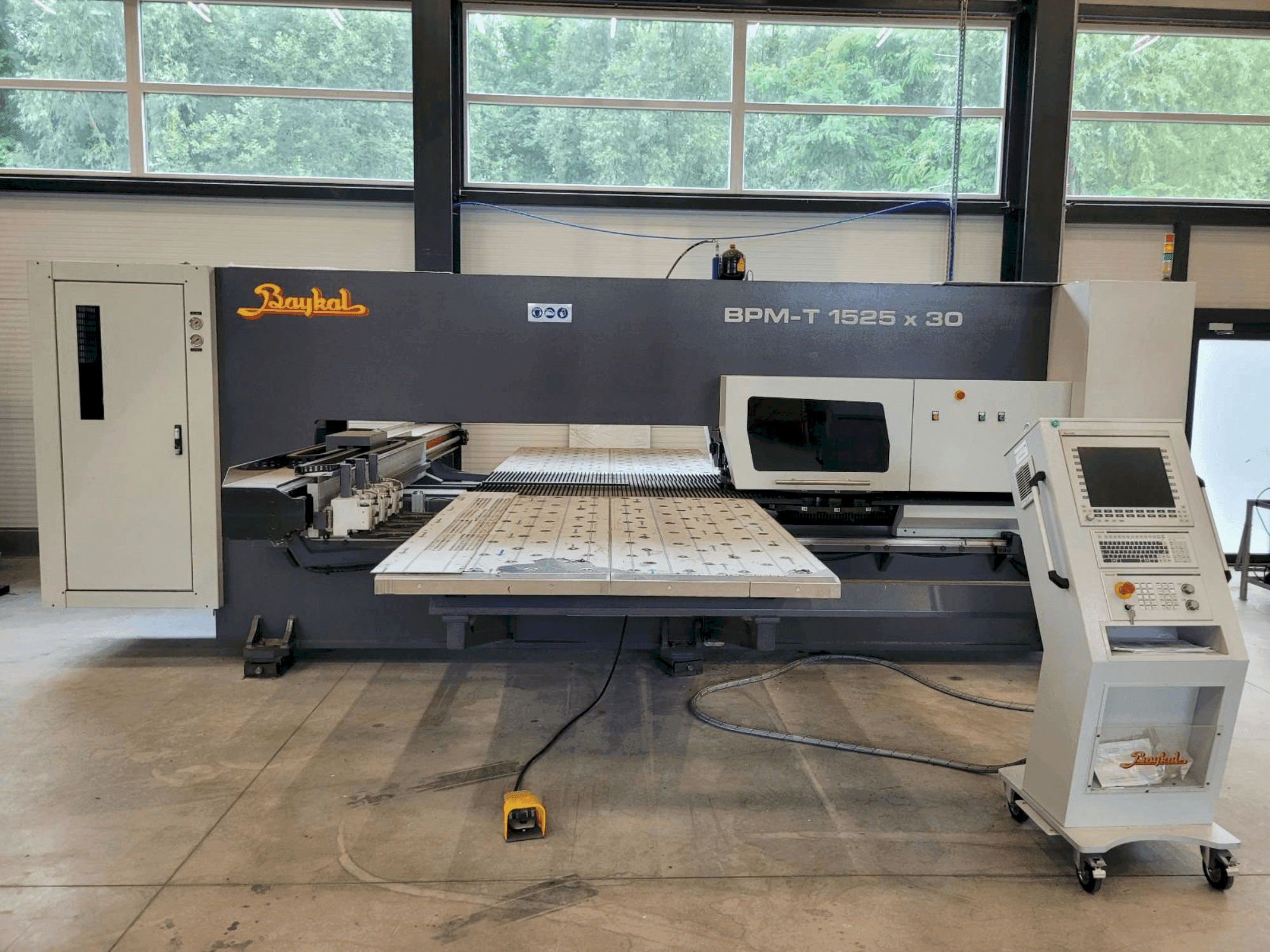

Baykal - BPM-T 1525X30PL-PUN-BAY-2020-00001

Additional equipment

• - Hydraulic Motor Power: 11 kW
• - Axes Drive Type (C1 and C2): Direct drive
• - Hydraulic Punching Force: 30 tons
• - Portable CNC Control Panel
• - Work Chute: Automatic system to take out cut parts
• - Mobile Storage Box for Cut Parts
• - Waste Box
• - Light Barriers

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Ce conformity
  • - Maximum sheet thickness: 6. 4 mm
  • - Maximum punching rate: 1 mm nibbling: 900 hits/min 25 mm nibbling: 580 hits/min
  • - Maximum punching diameter (for 6. 4 mm thickness): 25 mm
  • - Number of clamps: 3
  • - Tables: movable in y axis
  • - Table height: 980 mm
  • - Movable table: 1300 × 5200 mm with ball transfers

Extra information

• - The machine is in excellent condition, has only a few hours of operation, and is like new. Control Unit Control: Bosch MTX Operating System: Windows Hard Disk: 150 GB CPU: 2 GHz RAM: 2 GB Data Transfer: USB stick memory Display: 12" TFT LCD color screen Movement Axes: 6 (X, Y, Z, C1, C2, T) Axis Speeds: X: 100 m/min Y: 80 m/min X + Y combined: 128 m/min C1 / C2 rotation: 300 rot/min T axis: 20 rot/min Repositioning: Available Positioning Accuracy: ±0.1 mm Repeatability: 0.04 mm CAM Nesting Software: Lantek Turret Tool Rotation: Indexable Multitools Support: Available (3 or 8 tools) Total Number of Tool Stations: 20 Indexable Tool Holders: Standard 4 (option up to 10) Tool Change Time (multitools): 0.3 s Maximum Tool Change Time (turret): 3 s
