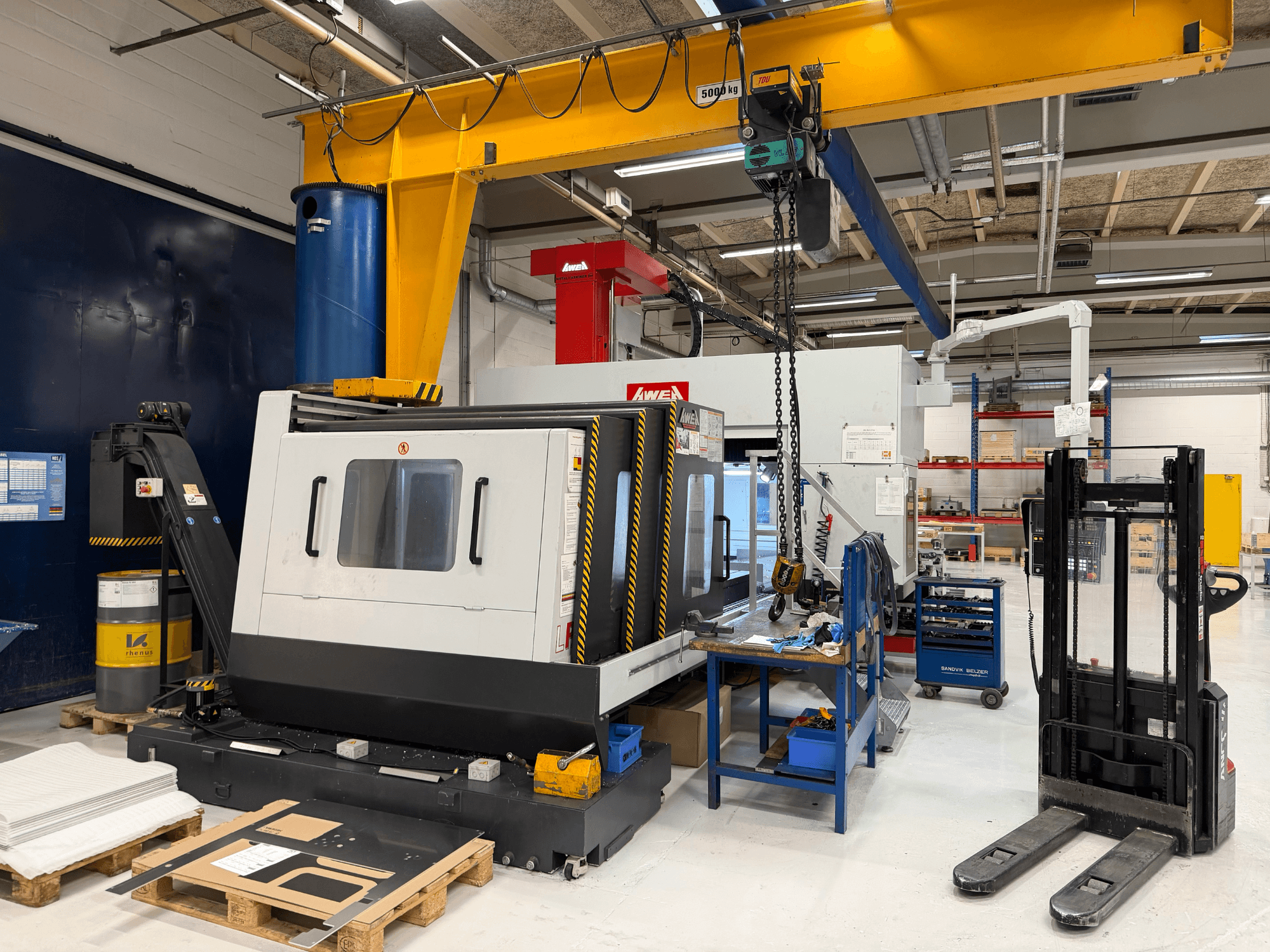

AWEA - LP3016YFDK-MIL-AWE-2021-00001

• Worktable: 3216 x 1,500 mm

• Max. workpiece weight: 10,000 kg

• Distance plane to spindle nose: 200–960 mm

• Distance between columns: 2,300 mm

• Spindle taper: MAS BBT50

• Rapid traverse (X/Y/Z): 20 m/min (15 m/min)

• Feed (X/Y/Z): 1–10,000 mm/min

• Tool changer: Arm type, 32 positions

  • Max. tool diameter: Ø127 mm

  • Max. tool diameter with free adjacent pockets: Ø215 mm

  • Max. tool length: 400 mm

Additional equipment

• Full machine encapsulation with roof (CE compliant)

• Cooling and thermal management:

  • 20 bar high-pressure coolant system with filters

  • Low-pressure pumps (Grundfos/Walrus)

  • Spindle oil cooling system / oil cooler

  • Cooling system, spindle exhaust, heat exchanger in electrical cabinet

• Chip handling:

  • Double screw-type chip conveyor along the table

  • Chain-type chip conveyor in Y-direction, located at one end

• Probing:

  • Renishaw 3D workpiece probe system

  • Renishaw TS 27R tool-setting probe

• Lighting: Double LED machine lighting plus LED spot

• Tooling package: 20 pcs BBT50 tool holders incl. 32 pcs tightening bolts (through-coolant)

• Power: 3x400V 50Hz CE transformer

• Base/accessories: Steel machine shoe

• F option (angle head and automation):

  • 90° angle head with automatic 5° indexed C-axis

  • Automatic change of vertical head; head stored in a box at the machine portal

  • Swing-away angle head storage

  • ATC change in both horizontal and vertical positions

  • Max. angle head rpm: 3,000 rpm

  • Transverse travel upgrade: Y = 1,900 mm (with F option)
