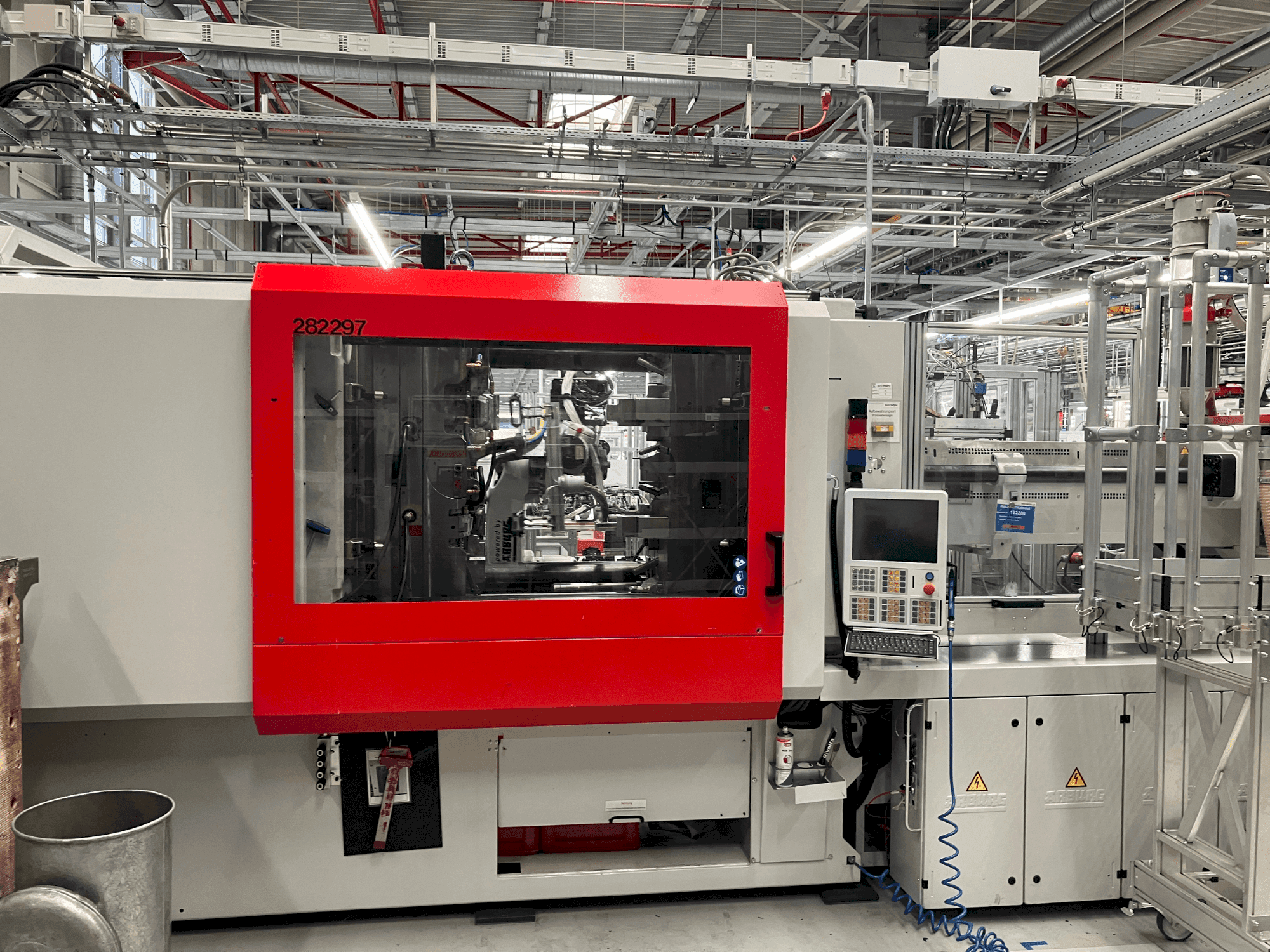

This Arburg Allrounder 920 S 5000-2100 was manufactured in 2017. It's a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing. Consider the opportunity to buy this Arburg Allrounder 920 S 5000-2100 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: Arburg
- year: 2017
- MODEL: Allrounder 920 S 5000-2100
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Arburg Allrounder 920 S 5000-2100
Dimensions
- Machine Depth: 9200 mm
Technical Specification
- Clamping Force: 5000 kN
- Screw Diameter: 70 mm
Additional Information
Equipped with the mucell process for series injection molding
Machine is fully hydraulic
The machine is equipped with the mucell process and can also be used for series injection molding.
Tonnage: 550 tons
Language options: german
Maximum opening: 900 mm / maximum plate distance: 1300-1950 mm / maximum ejector length: 250 mm
Coupling diameter: 45 mm / center ring diameter: 200 mm / valve gate: 4 pneumatic, 8 hydraulic
Hk control points: 24
Number of hydraulic core pulls (fixed side): 1 / number of hydraulic core pulls (moving side): 2
Ejector can open simultaneously with wkz. Core pulls are freely programmable. Ejector and removal can be adapted to each other. Clamping platen is height-adjustable
Power of the main motor 90 kw
Oil capacity: 600 liters
Additional equipment
Optional: Peripherals: 8x Temperature Control Unit Thermo 5 / Robot: KUKA KR30-3 / 2 x Conveyor belts
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
