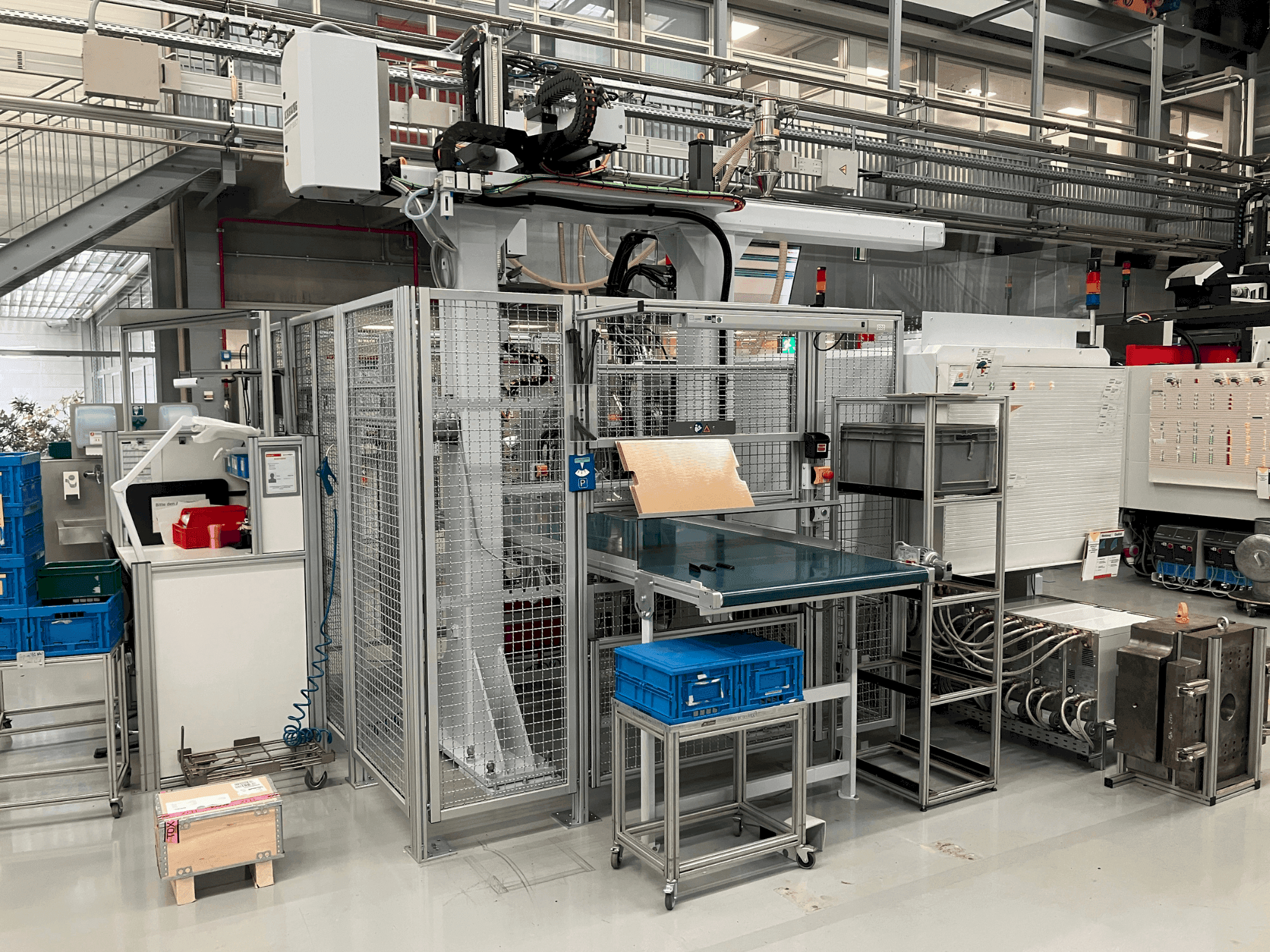

Front view of Arburg Allrounder 520 S 1600-400/170 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 520 S 1600-400/170

Photo Gallery

Arburg - Allrounder 520 S 1600-400/170DE-INJ-ARB-2019-00002

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 520 S 1600-400/170 For Sale

Show in original language

This Arburg Allrounder 520 S 1600-400/170 was manufactured in 2019. A hydraulic injection moulding machine, it's ideal for precision and efficiency in plastic processing. Consider the opportunity to buy this Arburg Allrounder 520 S 1600-400/170 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Arburg
year: 2019
MODEL: Allrounder 520 S 1600-400/170
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg Allrounder 520 S 1600-400/170

General Data

Measurements width: 3950 mm
Measurements depth: 5750 mm

Clamping unit

Clamping force: 160 kN
Distance between bars: 520 mm

Additional equipment

- Robot: Multilift Select
- 4x Temperature Control Units: Thermo 5
- Screw Diameter: 35 mm (Aggregate 1), 25 mm (Aggregate 2) / Stroke Volume: 154 ccm (Aggregate 1), 59 ccm (Aggregate 2)
- Injection Pressure: 2500 bar (Aggregate 1 and 2)
- Language Options: German, English
- Maximum opening: 575 mm / Maximum plate distance: 1025 mm / Maximum ejector length: 175 mm
- Center ring diameter: 125 mm / Valve gate: 4
- HK Control points: 42
- Number of hydraulic core pulls (Moving side): 2 / Number of pneumatic core pulls (Fixed side): 1

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tonnage: 160 to
- - Operating voltage: 400 v 3-phase 50 hz
- - Control voltage: 230 v 50 hz
- - Control voltage: 24 v dc
- - Motor/heating rated current: 148 / 143 a
- - Total connected load: 175 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
