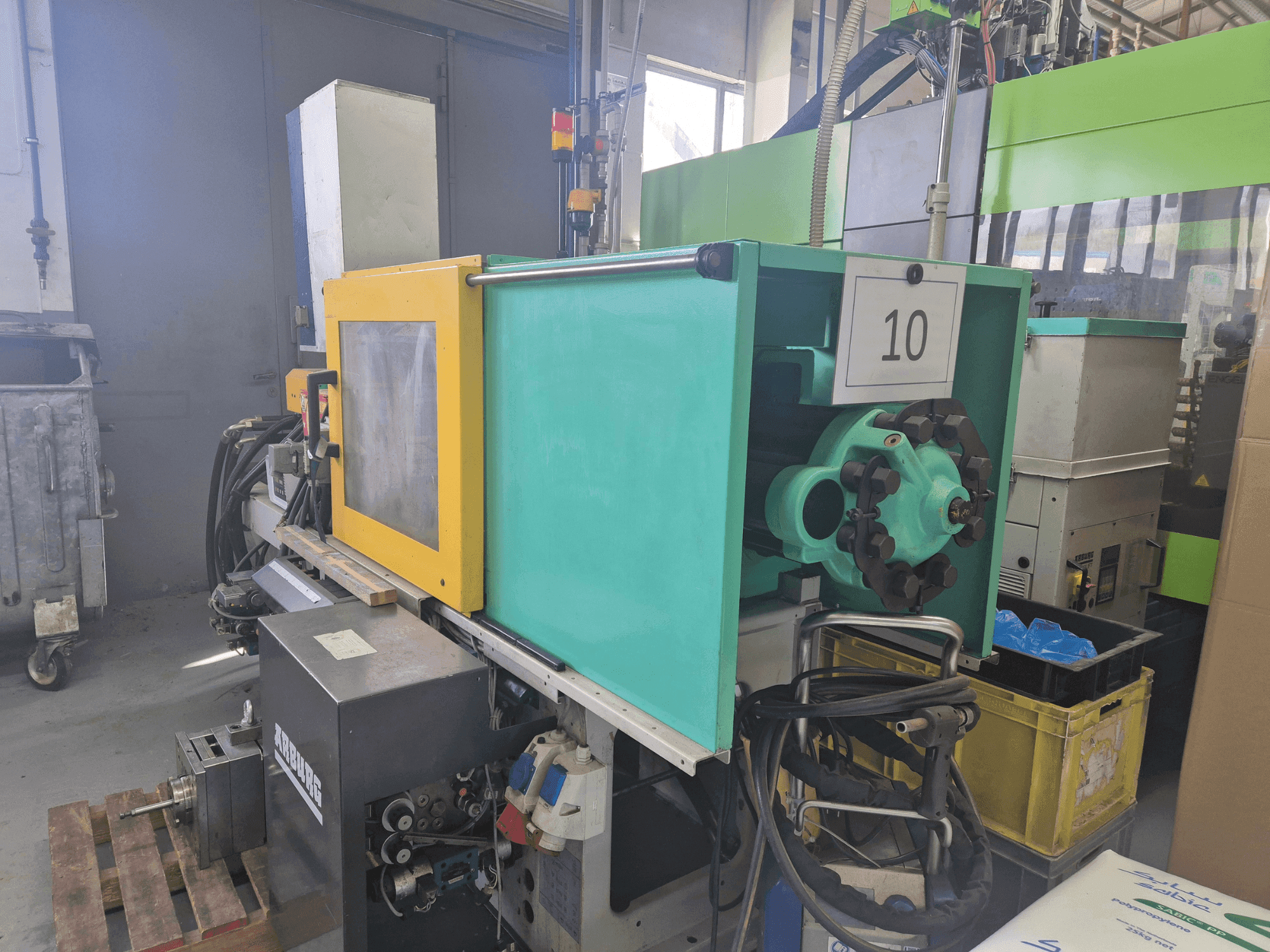

Arburg - Allrounder 270 C 400-70DE-INJ-ARB-2007-00007

Additional equipment

• - Oil Cooling: Programmable oil temperature regulation with heat exchanger.
• - Injection Control: 3-stage injection regulation (30-290 mm/s).
• - Nozzle Control Block: T2 type for 270-570 CG series.
• - Clamping Unit: WKZ-Schließeinheit 270 CS (base configuration). Minimum installation height: 200 mm.
• - Control System: CPU: Pentium III with USB interface. / I/O Cards: Digital (L-ARB 790) and analog (L-ARB 798) modules. /Temperature Control: 12-channel programmable card (L-ARB 777).
• - S-Systemdiskette CS/S/A/U (Version 03.060-00.000).
• - Direct Graphics Interface (Version 04.060-00.000).
• - Coolant Distribution: Regulated coolant circuits with manual valves and measuring pipes. / Additional connections for free inlet/outlet.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Clamping system: hasco
  • - Cylinder diameter: 18 mm
  • - Injection weight max (ps): 17 g
  • - Nozzle radius: r40
  • - Centring ring: 125
  • - Voltage: 400 v / 50 hz
  • - Hydraulic pump: model: rxp 45 + akp 18 + hssp 16 / d / drive unit: d38/d35 (5. 5-7. 5 kn) /motor: power: 7. 5/8. 6 kw / voltage range: 380-420v (50/60hz) or 440-480v (60hz)

Extra information

• - Machine still under power
