Krauss Maffei - 300-1400 CXDE-INJ-KRA-2007-00008

Name: Krauss Maffei 300-1400 CX
Brand: Krauss Maffei
SKU: DE-INJ-KRA-2007-00008
Price: 1669149 INR
Availability: InStock

Rs. 1,669,149

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Krauss Maffei 300-1400 CX For Sale | gindumac.com

Show in original language

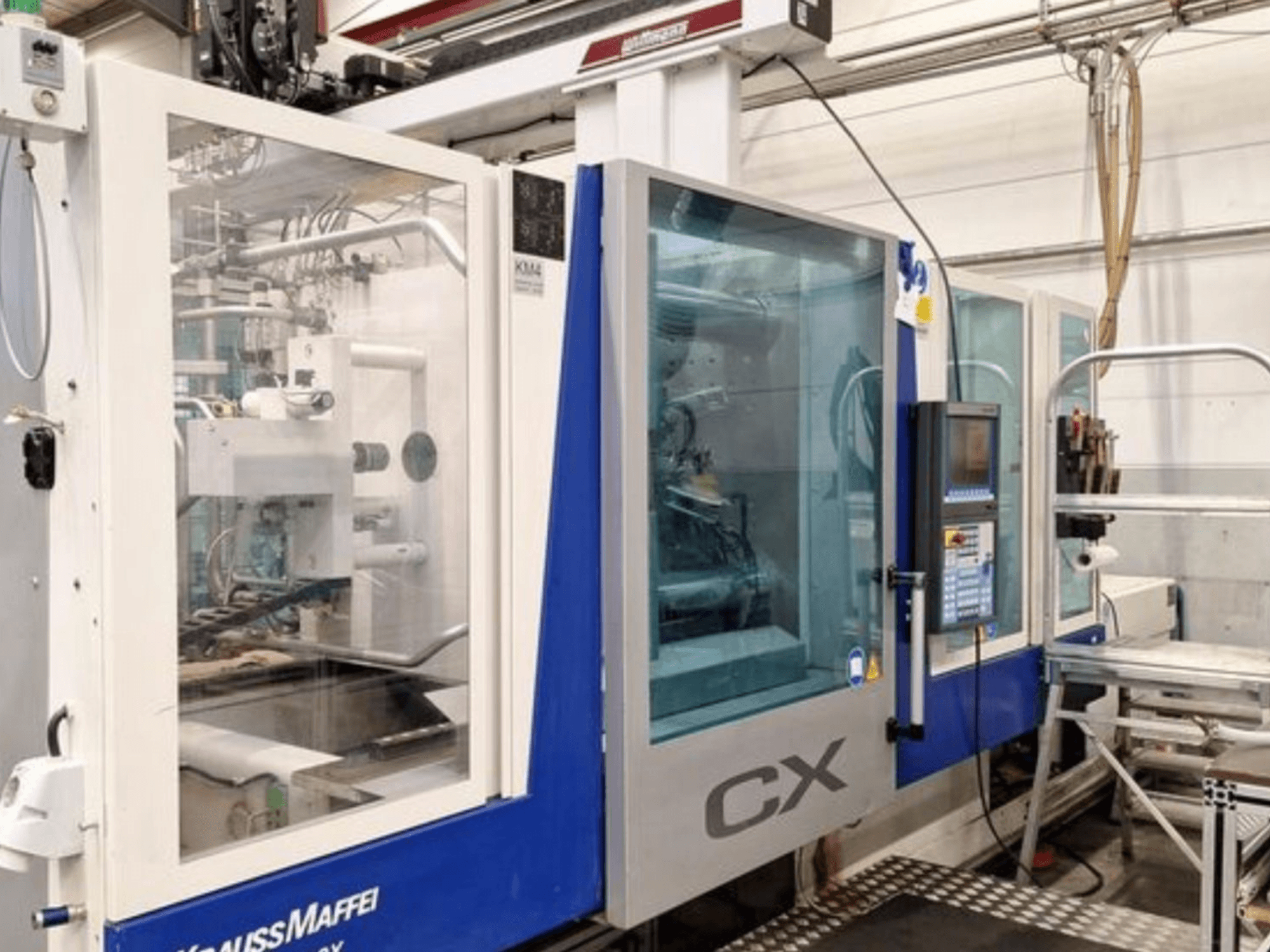

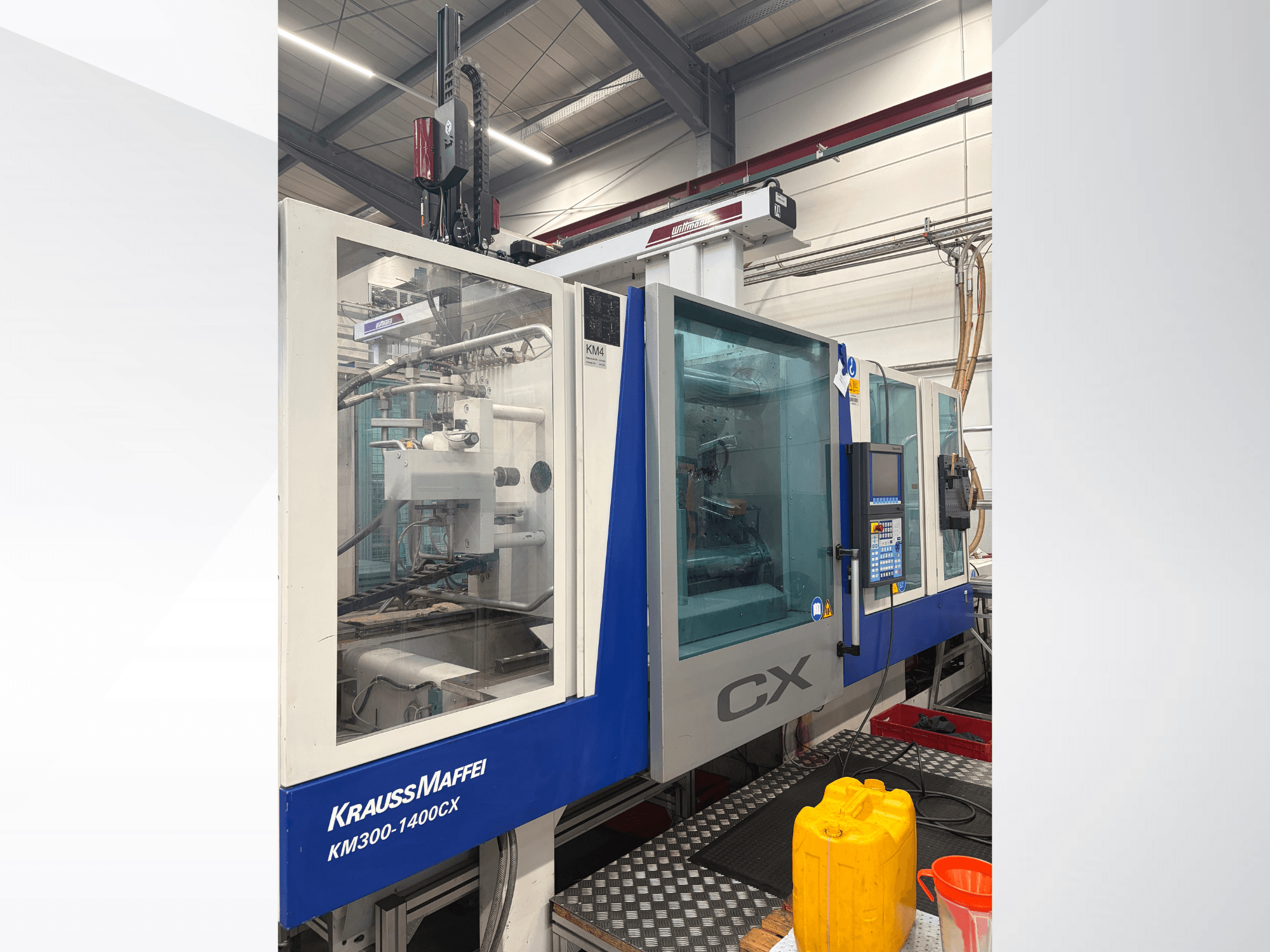

Hydraulic injection moulding machine manufactured in 2007. This Krauss Maffei 300-1400 CX features a clamping force of 3,000 kN and a tie bar distance of 630 × 630 mm. It includes a hydraulic clamping unit drive and an injection unit size of 300–1400. If you are looking to get high-quality moulding capabilities, consider the Krauss Maffei 300-1400 CX machine we have for sale. Contact us for further details.

Overview

brand: Krauss Maffei
year: 2007
MODEL: 300-1400 CX
production hours: 52536
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Krauss Maffei 300-1400 CX

Dimensions

Machine Weight: 14500 kg

Technical Specification

Clamping Force: 3000 kN
Screw Diameter: 60 mm

Additional Information

- Tie Bar Distance: 630 × 630 mm

- Platen Dimensions: 995 mm (W) x 1,050 mm (H)

- Centering Ring Diameter: Ø 125 mm

- Clamping Unit Drive: Hydraulic

- Injection Unit Drive: Hydraulic

- Injection Unit Size: 300–1400

- Ejector Drive: Hydraulic

- Core Pulls: 4

- Minimum Mold Height: 330 mm

- Maximum Mold Height: 1,150 mm

- Maximum Ejector Stroke: 200 mm

- Machine Weight: 14,500 kg

Included Accessories

Discharge chute: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
