Krauss Maffei - 4000-24500 MC DE-INJ-KRA-2002-00012

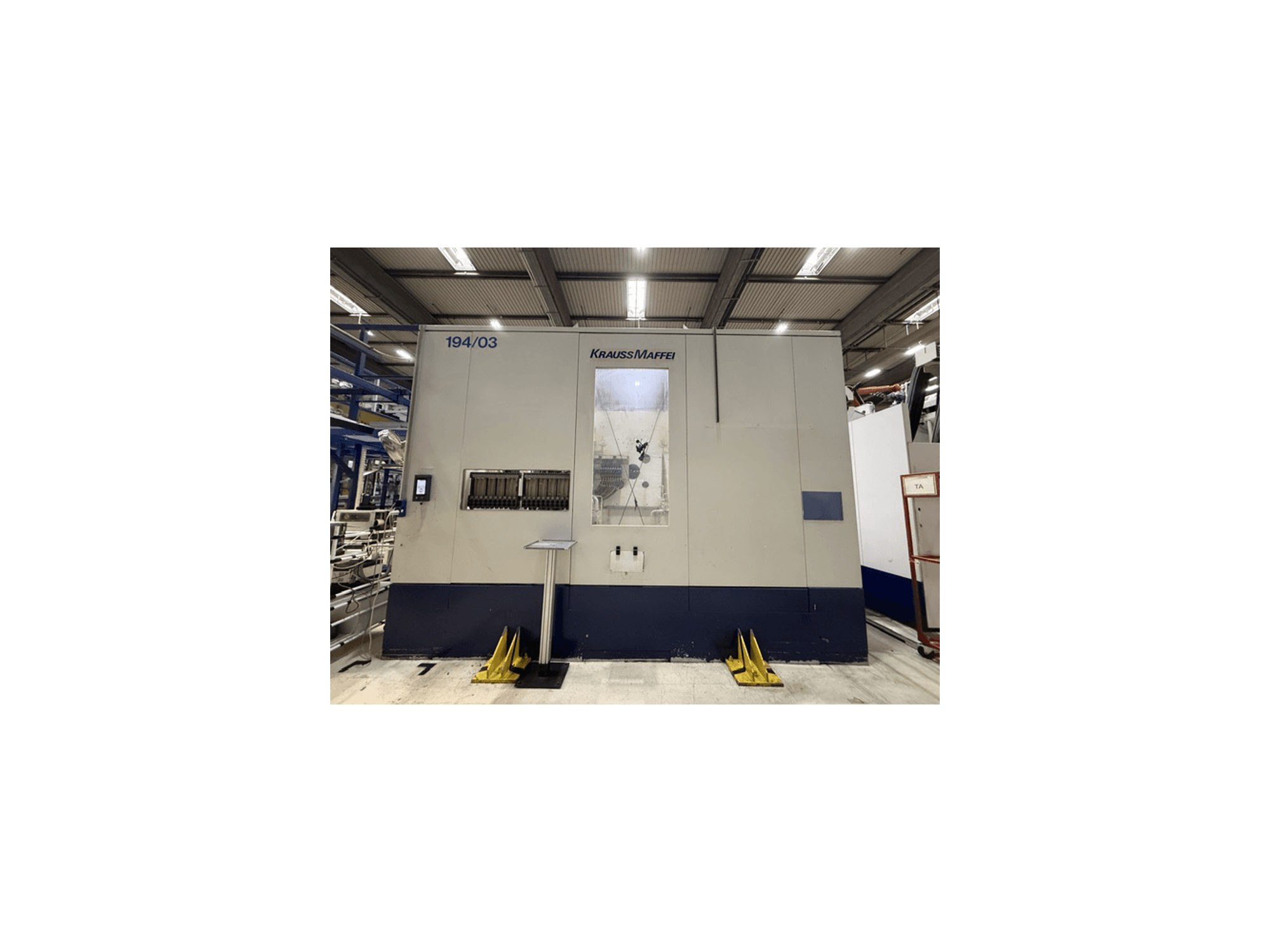

KraussMaffei 4000-24500 MC

• Clamping Force: 40,000 kN

• Injection Volume: 10,735 cm³

• Shot Weight (PS): 7,837 g

• Injection Pressure: 2,276 bar

• Screw Diameter: 135 mm

• Screw L/D Ratio: 23

• Nozzle Radius: 25 mm

• Nozzle Shut-Off: Hydraulic

• Nozzle Immersion Depth: 40 mm

• Platen Size (H × V): 3,315 × 2,920 mm

• Daylight Opening (H × V): 2,240 × 1,800 mm

• Minimum Opening Stroke: 2,200 mm

• Mold Installation Height: 1,100–2,000 mm

• Maximum Opening Width: 4,200 mm

• Centering Ring (Fixed Platen): 315 mm

• Centering Ring (Moving Platen): 315 mm

• Quick Mold Clamping System: QMC 101.450

• Hot Runner Control Zones: 48

• Pneumatic Cascade Control Circuits: 10

• Hydraulic Cascade Control Circuits: 12

• Core Pull Circuits (Fixed Platen): 3

• Core Pull Circuits (Moving Platen): 4

• Cooling Circuits (Fixed Platen): 18

• Cooling Circuits (Moving Platen): 18

• Temperature Control Units: 36

• Supply Voltage: 400 V

• Power Supply: 3-Phase

• Frequency: 50 Hz

• Motor Current: 622 A

• Heater Current: 583 A

• Motor Fuse: 630 A

• Heater Fuse: 630 A
