- ➤ Used Krauss Maffei 80-220 C1 For Sale | gindumac.com

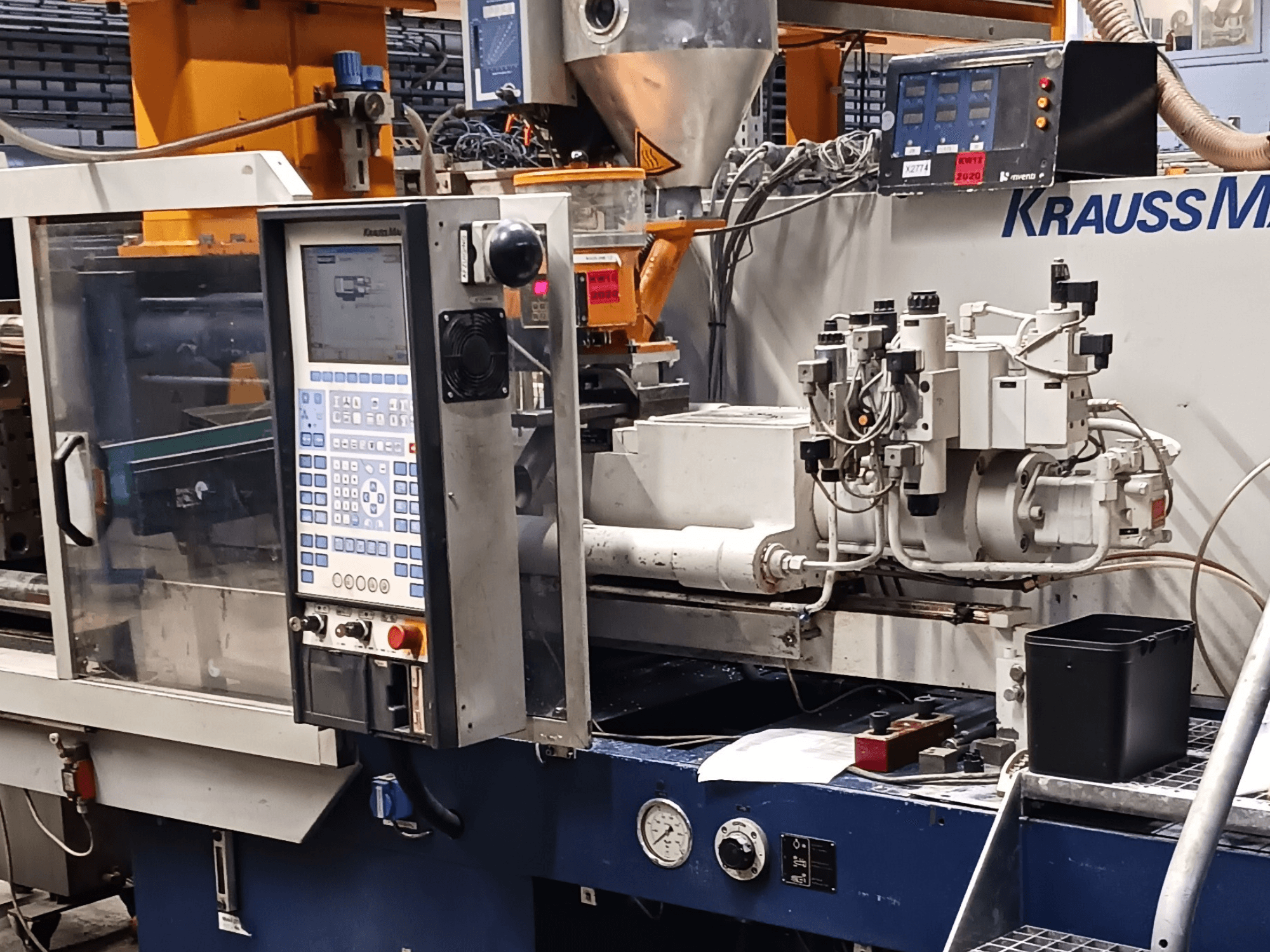

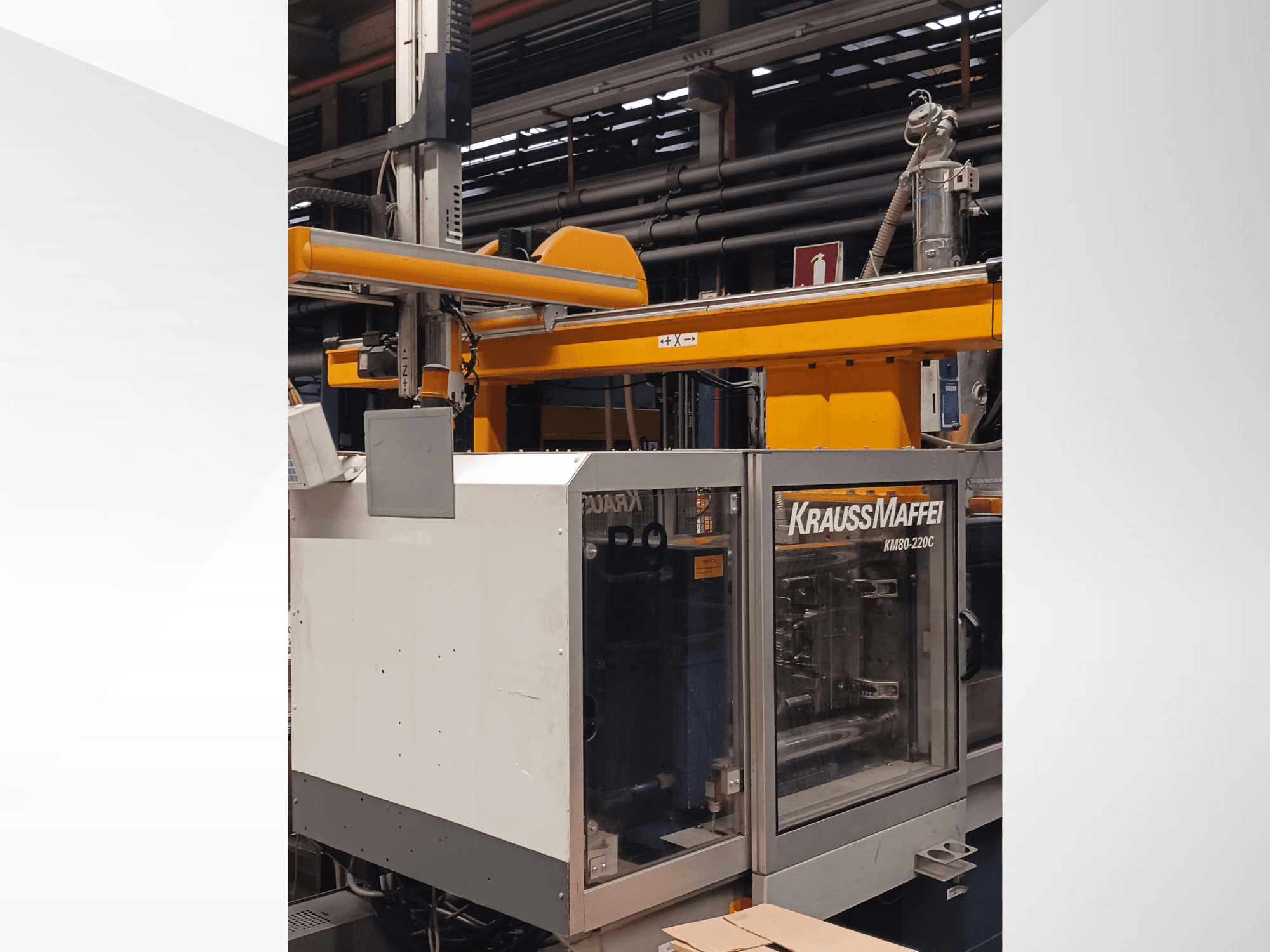

This Krauss Maffei 80-220 C1 was manufactured in 2001. It features a clamping force of 800kN and a mold opening force of 55kN. The machine includes a robot, although it has a vacuum malfunction. Ideal for those looking to enhance their production capabilities in injection moulding. Contact us for more information about this machine.
Overview
- brand: Krauss Maffei
- year: 2001
- MODEL: 80-220 C1
- application type: Injection Moulding
- Location: Netherlands
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Krauss Maffei 80-220 C1
Dimensions
- Machine Height: 405 mm
- Machine Length: 405 mm
Technical Specification
- Clamping Force: 800 kN
Additional Information
Mold opening force: 55 kN
Mold clamping plate size (L x W): 610 x 610 mm
Clearance between columns (L x W): 405 x 405 mm
Mold opening distance: 500 mm
Mold installation height: 250 mm
Additional equipment
Robot: Included (vacuum malfunction)
Water temperature control: Not included
Conveyor belt: Not included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
