➤ Used ACCUWAY UT-200 For Sale | gindumac.com

Show in original language

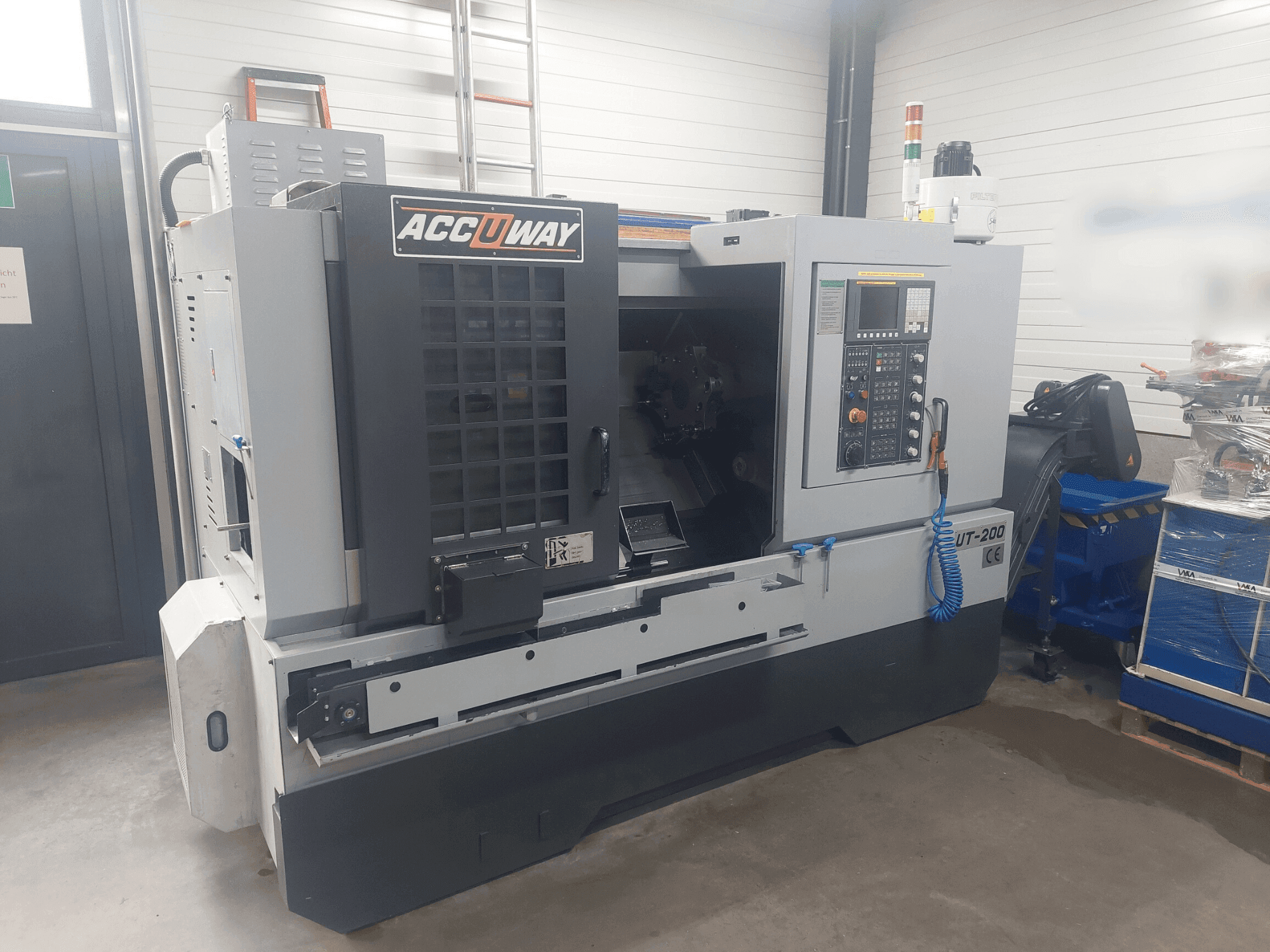

This ACCUWAY UT-200 was manufactured in 2016. A robust horizontal turning machine featuring a 12 station VDI-30 turret, Fanuc Oi-T control for advanced programming, and a main spindle with 11/15 kW power and 4,000 rpm speed. Includes a chip conveyor, high-pressure cooling, and a hydraulic unit. Ideal for precision machining with extensive tooling options and direct drive on all axes. Contact us for more information about this machine.

Overview

brand: ACCUWAY
year: 2016
MODEL: UT-200
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - ACCUWAY UT-200

Control Unit

Brand: FANUC
Model: Oi-T

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 11/15 kW
Tool taper: A2-6

Movement

X-AXIS Movement: 220 + 50 MM
X-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 600 MM
Z-AXIS Rapid traverse: 20 m/min

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Hydraulic unit
Programmable center
Central lubrication
Heat exchanger
Cooling tank with high pressure pump
Chuck including soft (3 sets) and hard (1 set) jaws
3 color warning light including buzzer
Set of tool holders
Skimmer
Filter mist

Machine Benefits

Qualitative Machine Benefits

Thread cutting
Rigid tapping
Alarm diagnosis
Electronic handwheel
Direct drive on all axes
Bar passage: 65 mm
Vdi-30 servo
Number of positions: 12
Tool holder: 20 mm
Round tool: 32 mm

Technical Machine Benefits

Automatic acceleration and deceleration
Axes interpolation
Memory capacity: 640 meters
Program memory: 400
Tool offsets: 64
8. 4 inch color screen
Graphic display
C. A. P. Dialog programming
Constant cutting speed
Nose radius correction

Extra Information

Machine still Under Power Toolsetter Collection tray/belt Collet chuck 185E High pressure cooling pump Air through turret

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
