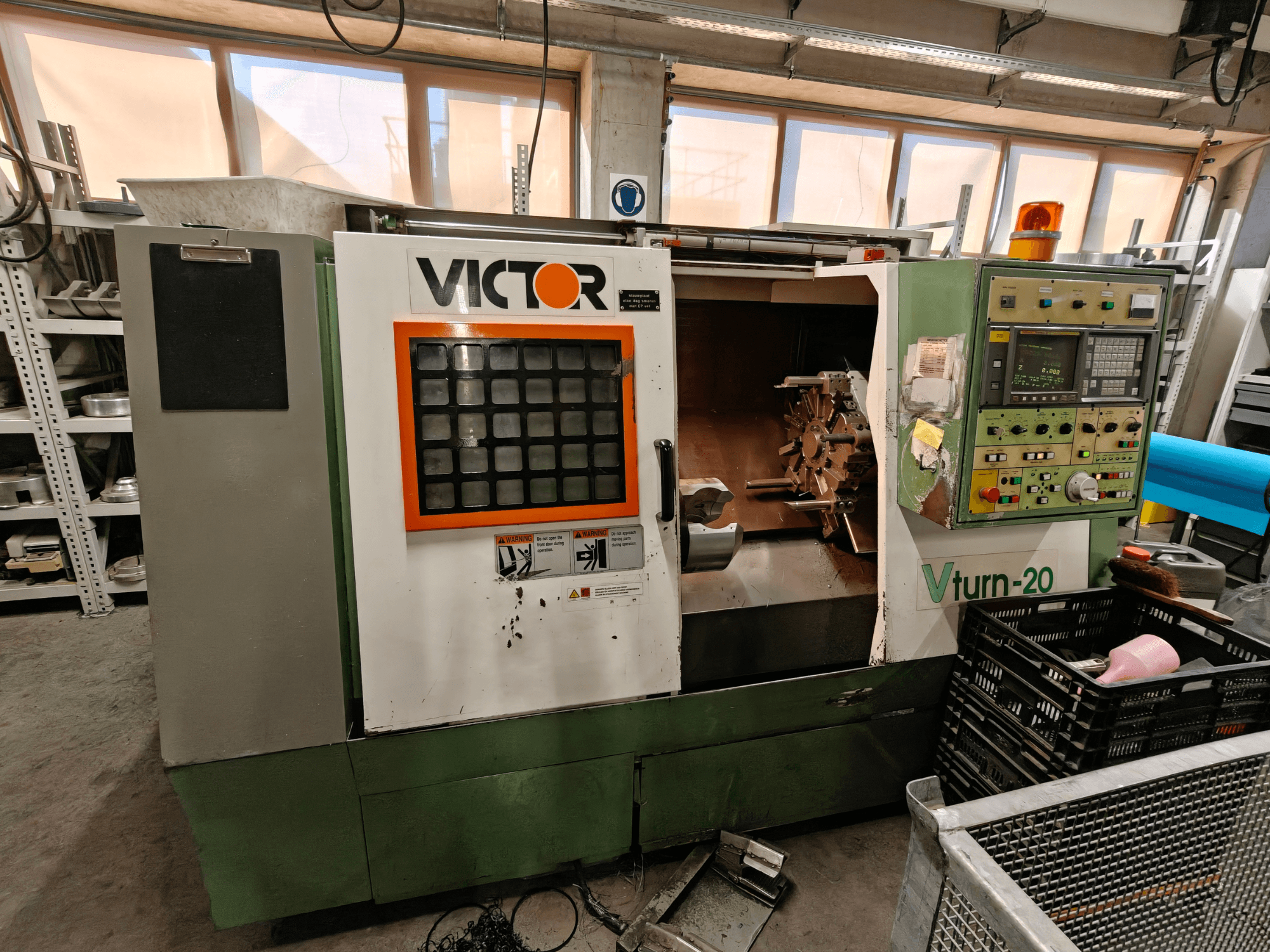

Victor Vturn-20 horizontal turning machine, side view, showcasing control panel, spindle, and workspace for machining.
Victor Vturn-20 horizontal turning machine, side view, showcasing control panel, spindle, and workspace for machining.

Victor - Vturn-20NL-TUR-VIC-1997-00001

Rs. 957,050
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

Horizontal turning machine manufactured in 1997. This Victor Vturn-20 features a maximum longitudinal travel of 600 mm and a standard turning diameter of 200 mm. It includes a turret with 10 tool positions and a spindle speed range of 42-4200 RPM. If you are looking to get high-quality turning capabilities, consider the Victor Vturn-20 machine we have for sale. Contact us for further details.

Overview

  • brand: Victor
  • year: 1997
  • MODEL: Vturn-20
  • production hours: 1601
  • application type: Turning
  • Location: Netherlands
  • machine type: Horizontal Turning Machine
  • Available from: 31/10/2026
  • control unit brand: FANUC

Technical Information - Victor Vturn-20

Control Unit

  • Control Brand: FANUC
  • Control Model: Series O-T

Dimensions

  • Machine Height: 1650 mm
  • Machine Length: 3290 mm
  • Machine Weight: 3300 kg
  • Machine Width: 1500 mm

Movement

  • Number of Axes: 2
  • X-axis Travel: 135 mm
  • Z-axis Travel: 600 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: No
  • Number of Tools: 10
  • Spindle Speed: 4200 RPM

Additional Information

  • Swing over bed/front cover: 450 mm

  • Standard turning diameter: 200 mm

  • Swing over carriage: 300 mm

  • Rapid feed: X 12 m/min, Z 15 m/min

  • Spindle nose: A2-6

  • Hole through spindle: 62 mm

  • Spindle bearing diameter: 100 mm

  • Spindle inside taper: 1/20

  • Turret tool positions: 10

  • Standard O.D. tool size: 20 mm

  • I.D. tool size (max): 32 mm

  • Tailstock quill diameter: 75 mm

  • Tailstock quill stroke: 80 mm

  • Tailstock quill taper (built-in): MT4

  • Center distance: 635 mm

  • Spindle motor (continuous/30 min): AC 10 HP / 12 HP

  • Feed motor: X 1.4 HP, Z 2.8 HP

  • Coolant capacity: 87 L

Additional equipment

  • Hydraulic power chuck: 200 mm (8")

  • Hole through power chuck tube: 50 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
