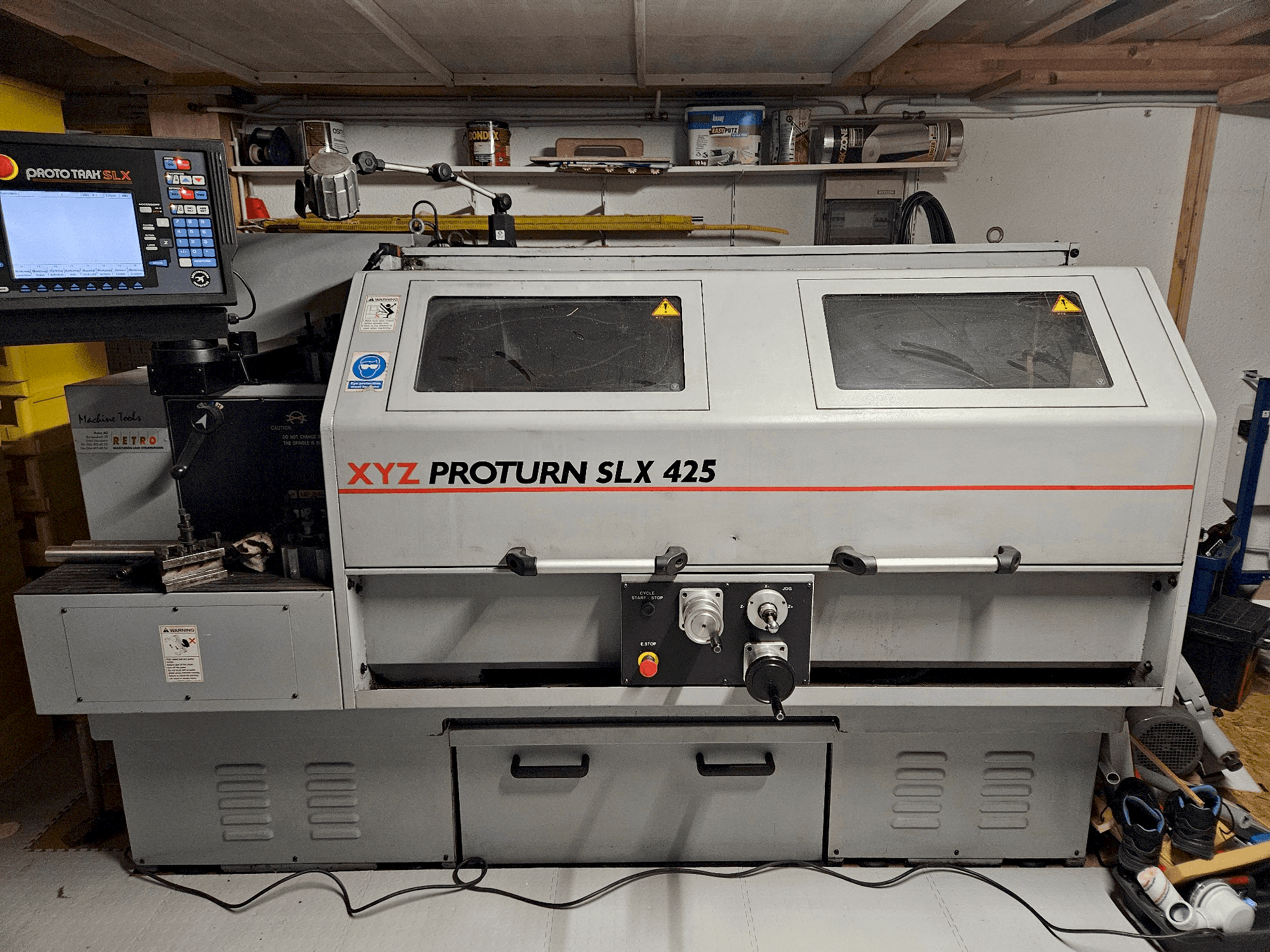

Front view of XYZ Proturn SLX 425 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

XYZ Proturn SLX 425

XYZ - Proturn SLX 425DE-TUR-XYZ-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Turning XYZ Proturn SLX 425 - 2007 - for sale | gindumac.com

Show in original language

This XYZ Proturn SLX 425 Turning from Germany was manufactured in 2007. It is equiped with 2 axis. This machine incorporates a Spindle bored of 80mm and a Spindle motor of 10 hp.

Overview

brand: XYZ
year: 2007
MODEL: Proturn SLX 425
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - XYZ Proturn SLX 425

General Data

Measurements width: 2600 MM
Measurements depth: 1500 MM
Measurements height: 1900 MM
Machine weight: 2850 KG

Main drive

Spindle motor power: 10 hp
Spindle bore: 80 mm
Number of axis: 2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle bored 80mm, spindle nose type d1-8, spindle taper mt5 in bush, spindle motor 10 hp.
- - Spindle low speed 15-300 rpm / spindle medium speed 50-850 rpm / spindle high speed 140-2500 rpm.
- - Ballscrew: x axis ballscrew diameter 20mm, z axis ballscrew diameter 32mm.
- - Tailstock travel 160mm, tailstock quill diameter 75´mm, taper mt5.
- - Bed width 370mm.

Extra information

- MACHINE UNDER POWER

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
