➤ Used XYZ XL780 Horizontal Lathe For Sale | gindumac.com

Show in original language

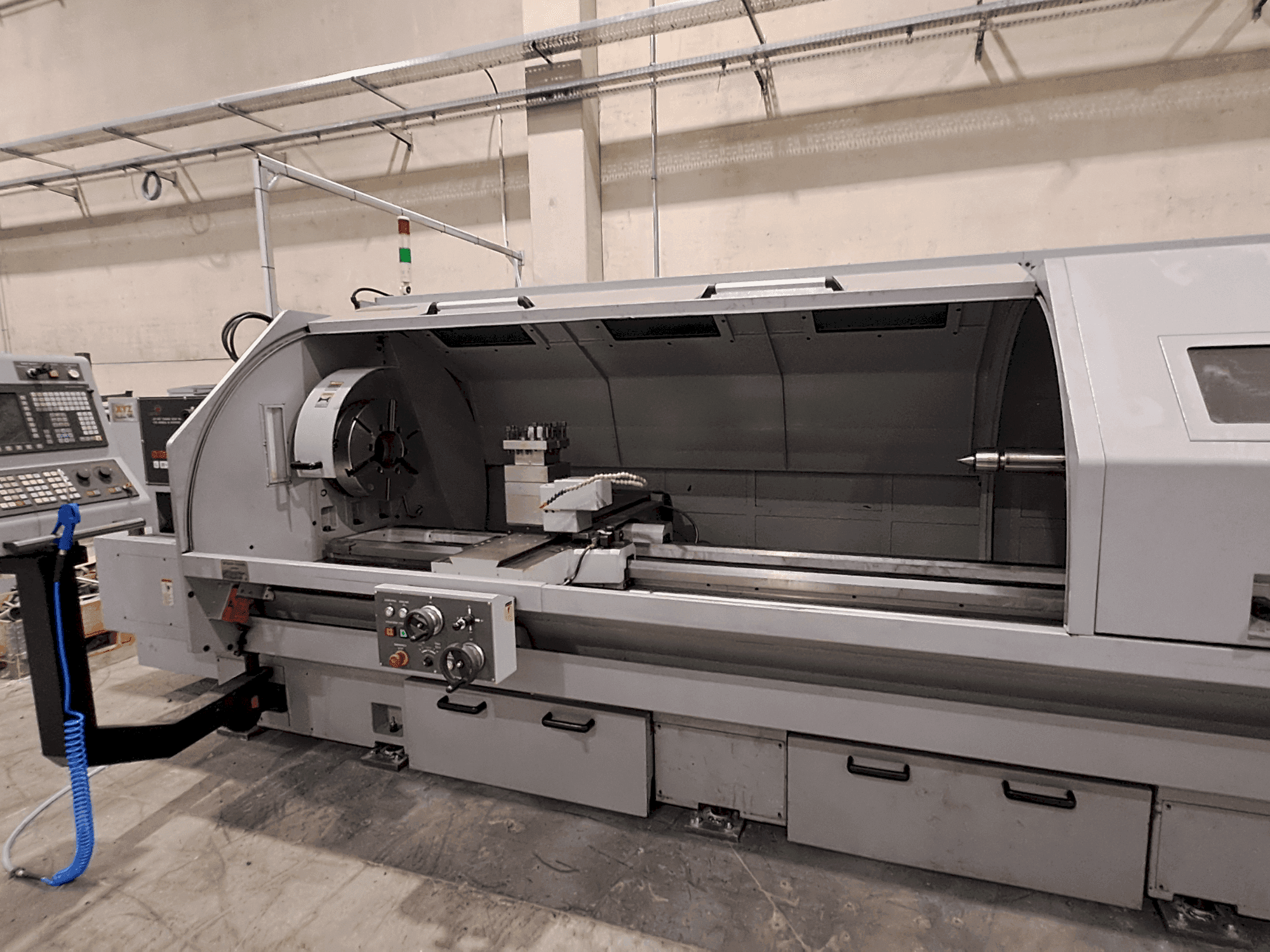

This XYZ XL780 was manufactured in 2015. A robust horizontal turning machine featuring a Siemens 828D ShopTurn control, it offers a swing over bed of 780mm and a maximum cutting length of 2,900mm. The spindle supports a 160mm diameter with speeds up to 1300 rpm. Includes a 3-jaw manual chuck and multiple steady rests. If you are looking to get high-quality turning capabilities consider the XYZ XL780 machine we have for sale. Contact us for more information.

Overview

brand: XYZ
year: 2015
MODEL: XL780
application type: Turning
Location: France
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - XYZ XL780

General Data

Measurements width: 2300 mm
Measurements depth: 5400 mm
Measurements height: 2100 mm
Machine weight: 8600 kg

Control Unit

Brand: SIEMENS
Model: Siemens 828D ShopTurn Touchscreen Control

Main drive

Spindle bore: 160 mm
Number of axis: 2

Workpiece

Workpiece drm over bed: 780 mm
Workpiece drm over support: 535 mm

Tail Stock

Pinol diameter: 105 mm
Pinol tool taper: MT6

Additional equipment

- Various Chuck Sizes depending on Machine
- Air Assist ‘Floating’ Tailstock with Towing Hitch
- Joystick Control for Rapid Movement
- Coolant // Worklight
- Automatic Lubrication
- Electromagnetic Spindle Brake
- Chuck Guard (Interlocked) // Swarf Guard (Interlocked)
- Dead Centres and Sleeves
- Networking // USB Port
- Compact Flash Card Slot

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Power requirements: 54a
- - Air requirements: 6 bar
- - Cross slide travel: 430 mm
- - Distance between centres: 3000 mm
- - Swing in gap: 1090 mm
- - Swing in gap: 1090 mm
- - Maximum cutting length: 2900 mm
- - Bed width: 50 mm
- - Bed width: 50 mm
- - 4 station auto indexing toolpost

Extra information

- Accessories 3-jaw manual chuck, Ø 500 (capacity Ø 730) 3 Adjustable Steady Rests (Ø 250, 400, and 540) 2 Sets of Hard Jaws for Internal/External Grip on Plate 1 Set of Hard Jaws for Single-Piece External Grip 4 Sets of Soft Jaws for Plate 1 Cm6 Live Center, Röhm Brand

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
