Kitamura - KNC 150 NSA FR-TUR-KIT-2010-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Kitamura KNC 150 NSA For Sale | gindumac.com
This 3-axis Kitamura KNC 150 NSA was manufactured in 2010. It features a twin spindle configuration with a maximum speed of 5,000 rpm and a spindle power of 7.5 kW. The machine includes an 8-station turret and a part catcher with a conveyor for efficient automation. If you are looking to get high-quality turning capabilities, consider the Kitamura KNC 150 NSA horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Kitamura
- year: 2010
- MODEL: KNC 150 NSA
- application type: Turning
- Location: France
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Kitamura KNC 150 NSA
Control Unit
- Control Brand: FANUC
- Control Model: 0-iTC
Movement
- Number of Axes: 2
- X-axis Travel: 100 mm
- Z-axis Travel: 240 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 7.5 kW
- Spindle Speed: 5000 RPM
Additional Information
Spindle
Configuration: Twin spindle
Bar capacity (main spindle): 42 mm
Bar capacity (sub-spindle): 25 mm
Tooling
Turret: 8 stations
Additional equipment

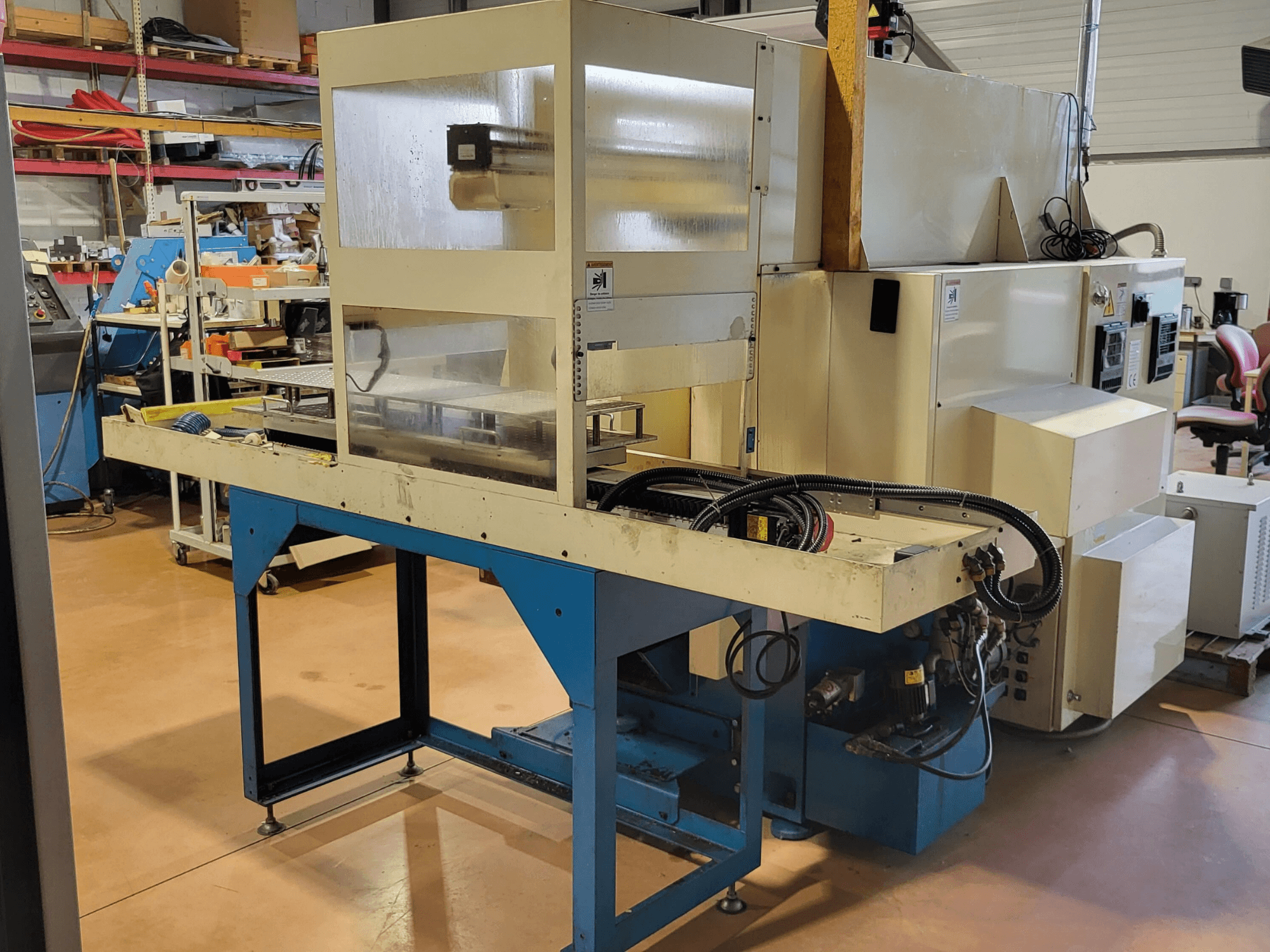

Part catcher with conveyor
Side chip conveyor
3-pallet robot system
120 positions Ø7 per pallet
120 positions Ø3 per pallet
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
