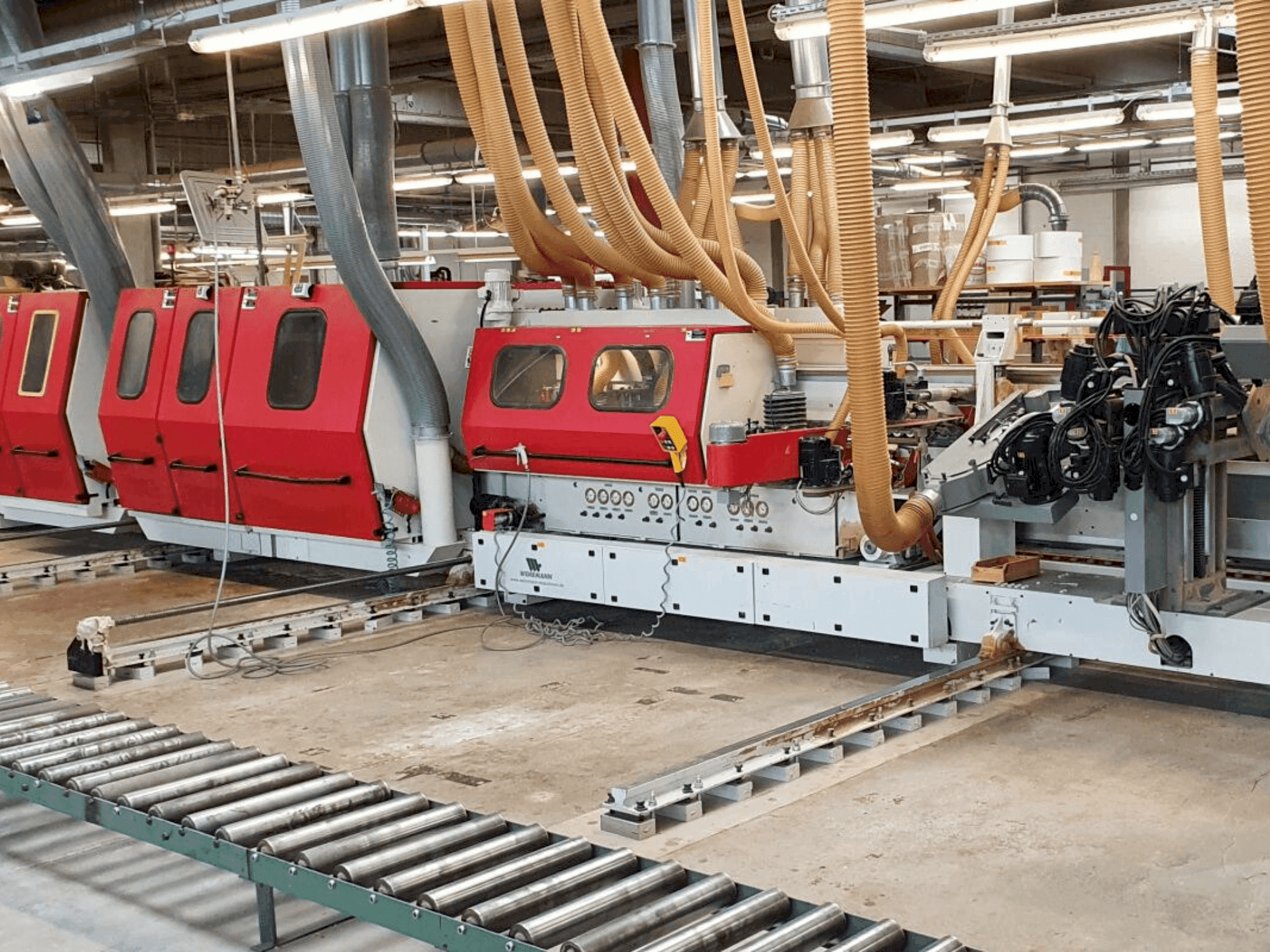

Front view of WEHRMANN Combima  machine

WEHRMANN - CombimaDE-WOO-WEH-2007-00002

Rs. 17,647,050
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Wehrmann Combima was manufactured in 2007. A robust double end tenoner for solid wood panels featuring a maximum working width of 2,500 mm and a minimum of 280 mm. Equipped with a Beckhoff machine control, fast Pentium computer, and touchscreen display. It includes a milling unit with a 6.6 kW motor and a double hogger unit for efficient processing. A great opportunity to buy this Wehrmann Combima woodworking machine. For more information about this woodworking machine, please reach out to us.

Overview

  • brand: WEHRMANN
  • year: 2007
  • MODEL: Combima
  • application type: Wood Working
  • Location: Germany
  • machine type: Wood
  • availability: Immediately
  • control unit brand: Beckhoff

Technical Information - WEHRMANN Combima

Control Unit

  • Brand: Beckhoff

    Additional equipment

    • - Milling units: Two controllable, non-pivotable milling units with motors of 6.6 kW each, capable of vertical and horizontal adjustments via electric axis.
    • - Double hogger unit: Upper and lower hogger motors each 4.4 kW, with horizontal and vertical adjustment.
    • - Profile/milling units: Three controllable, pivotable units with motors of 4.4 kW each, capable of comprehensive adjustments including swivel.
    • - Radius milling units: Three units with upper and lower motors of 660 W each, approximately 25 degrees pivotable.
    • - Edge sanding unit: For grinding vertical workpiece edges, oscillating, with a maximum workpiece height of approximately 80 mm.
    • - Profile sanding units: Multiple units for grinding small profiles, with motors of 0.55 kW and 1.1/1.8 kW.
    • - Suction sluice with blow nozzle.
    • - Extension device approximately 700 mm long.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Double end tenoner for massive wood panels
        • - Versatile processing capabilities with multiple milling, sanding, and profiling units, allowing for comprehensive treatment of wood panels.
        • - Nc controlled for precise adjustments and operations, enhancing the quality and efficiency of production.
        • - Modular equipment setup provides flexibility in configuring the machine for specific production requirements.
        • - Working width: maximum of approximately 2,500 mm and minimum of approximately 280 mm.
        • - Machine control via a fast pentium computer with a touchscreen display and integrated programming software, providing a user-friendly interface and efficient management of operations.
      • Qualitative Machine Benefits:
        • - High-quality construction and robust design ensure durability and consistent performance.
        • - Advanced sanding technology from heesemann ensures superior surface finish and detail in profiling.
        • - Equipped with low-maintenance precision roller transport chains for reliable and smooth operation.

      Extra information

      • - Machine control via a fast Pentium computer with a touchscreen display and integrated programming software, providing a user-friendly interface and efficient management of operations.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
