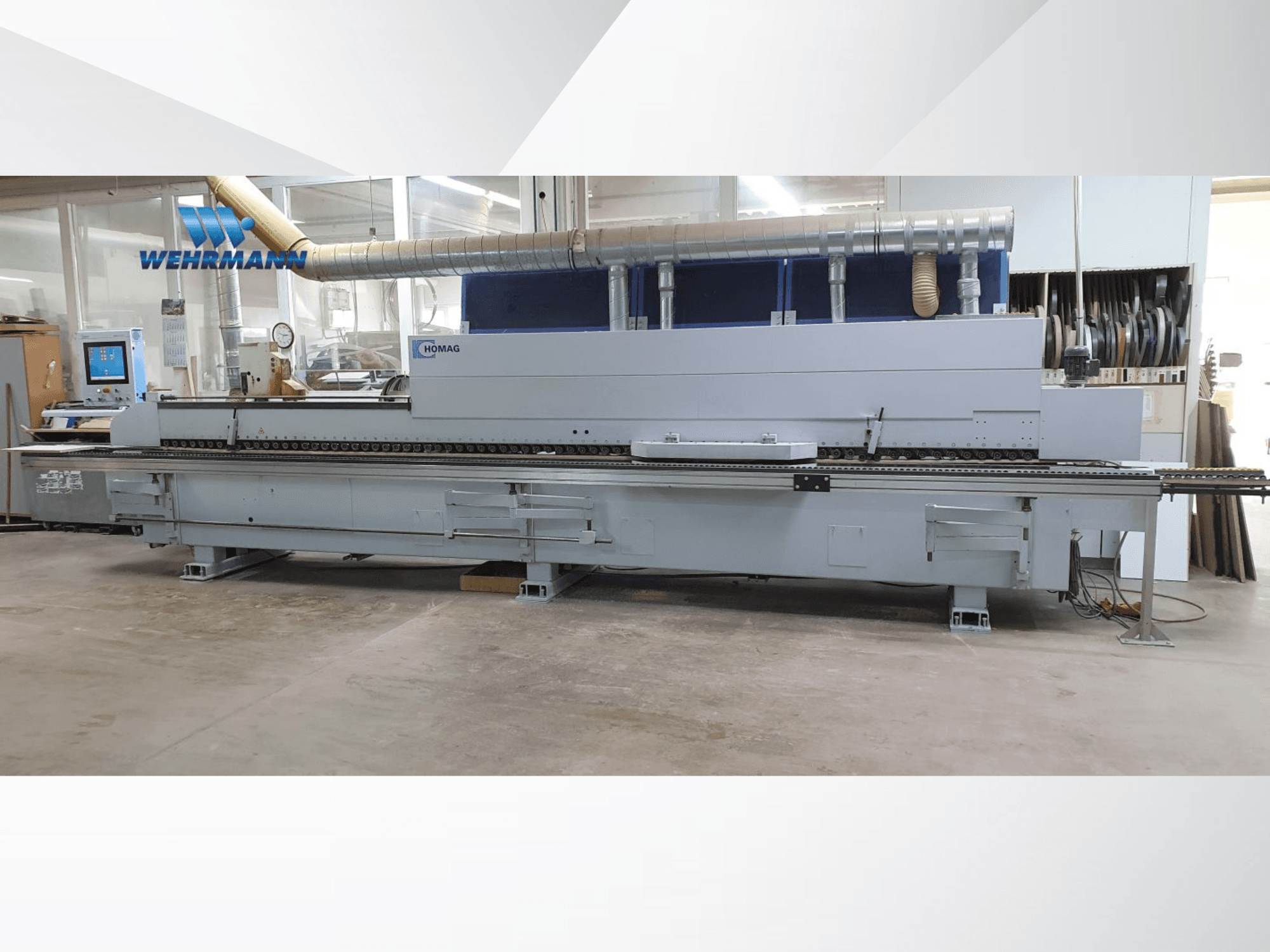

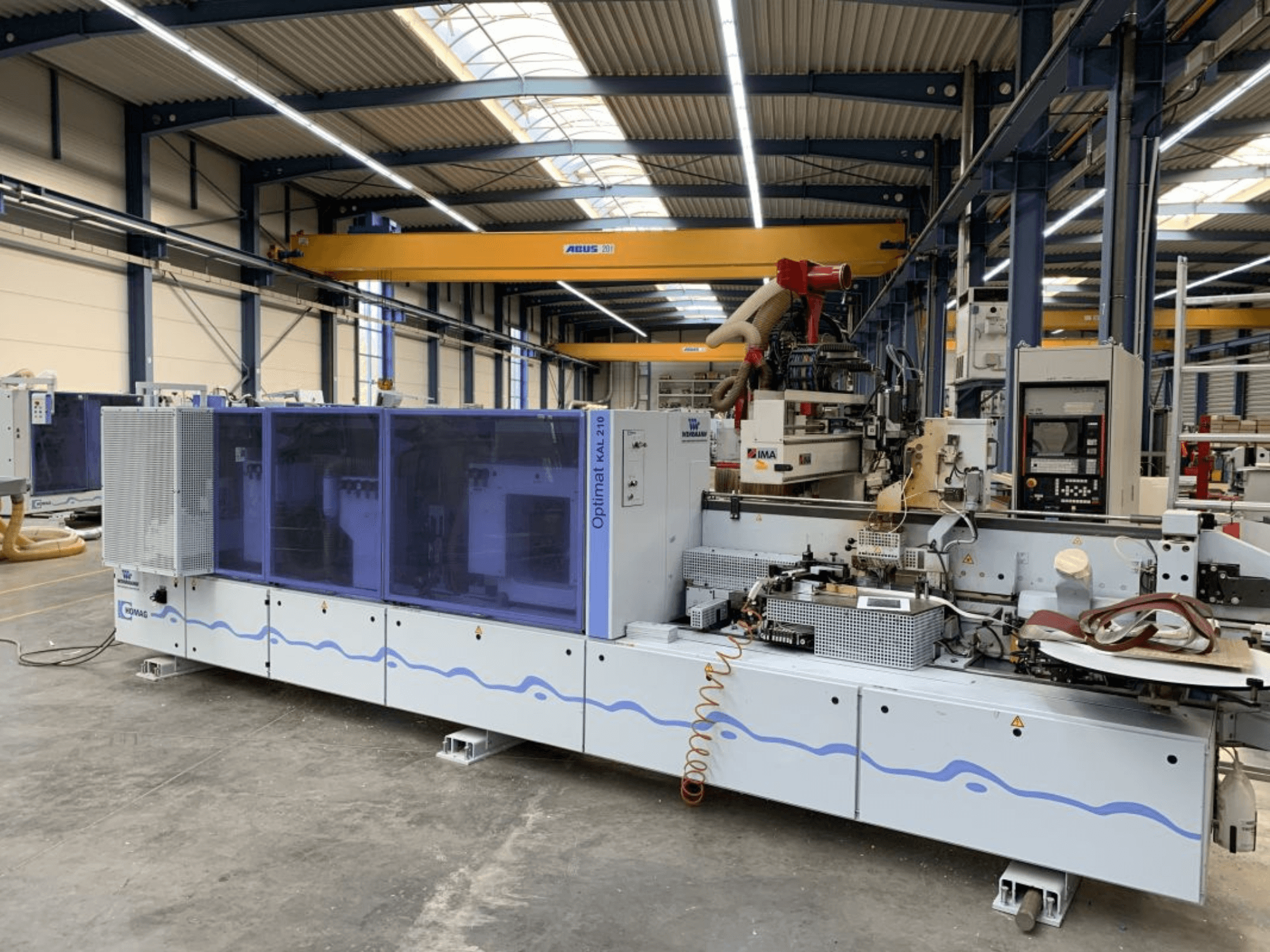

HOMAG - Optimat KAL210/6/A20/S2DE-EDG-HOM-2008-00001

Spindle motor power: Joint milling unit: 2 motors each 3 kW; End trimming unit: 2 motors each 0.8 kW; Pre-milling unit: 2 motors each 1.5 kW

Spindle speed range: Joint milling unit: 9,000 1/min; End trimming unit: 12,000 1/min; Pre-milling unit: 12,000 1/min

Single-sided machine for jointing straight workpiece edges, glueing and finishing of various edging materials from the roll or as strips, up to 20 mm edge thickness, in longitudinal and transverse pass.

Feed rate: 18 - 25 m/min.

Feed rate with form milling FK11 max. 20 m/min.

Workpiece thickness: 8 - 60 mm

Edge material strip max.: 0.4 - 20 mm

Edge material roll: 0.3 - 3 mm

Joint milling unit with electro-pneumatic control of both motors

Gluing unit A20 - 2 rollers

Quickmelt gluing unit

Temperature control electronic with LED display

Magazine 2 rolls manual

For solid edges, strips and rolls

1 edge feed

2 roll holders

Pressure zone C

1 driven pre-press roll diameter 150 mm

6 pressing rollers diameter 70 mm

Motors can be swivelled manually for bevel cutting

Shape trimming unit FK11 manual

For machining the edge protrusions on the upper and lower edge of the workpiece and for milling of the workpiece front and rear edge

Finishing unit profile PN10

For chamfering or rounding pre-milled PVC edges

Finishing unit consisting of finishing unit glue joint and buffing unit

Automation package chamfer / radius KAL210/6/A20

Automatic adjustment of infeed ruler

Automatic adjustment of pressure zone

Pneumatic adjustment from chamfer to straight cut

Pneumatic adjustment of the trimming motors for flush or projection trimming

Pneumatic adjustment of pre-milling unit for flush or projection milling

Automatic adjustment from chamfer to radius milling for form milling

Pneumatic adjustment PN10 / FA11

Electronic height adjustment

Note: The specifications and descriptions are a copy of the order confirmation at that time. Data are for information and are not binding.
