- ➤ Used IMA Combima Systems / I/R751220/R3 | Edgebander

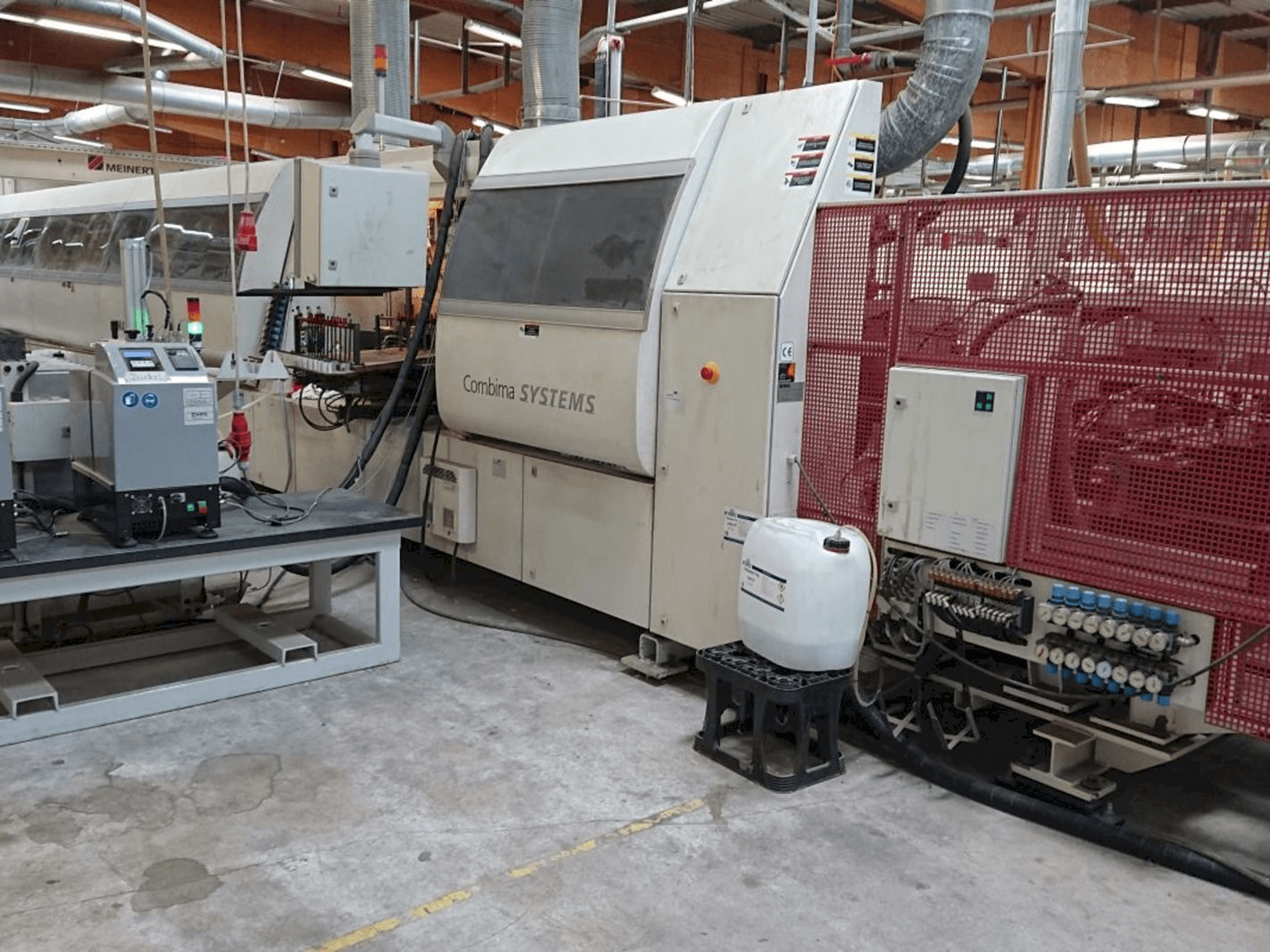

This edgebander was manufactured in 2005. It is a single-sided combination machine ideal for formatting, edge gluing, and finishing panel-shaped workpieces made of wood or wood-based materials. Features include an automatic insertion table, NC insertion system, and a 12-compartment edge magazine for roll material up to 3 mm thick. It also boasts a variable feed speed of 5-25 m/min and a PC control ICOS open system. For more information about this edgebander, please reach out to us.
Overview
- brand: IMA
- year: 2005
- MODEL: Combima Systems / I/R751220/R3
- application type: Edge Banding
- Location: Germany
- machine type: Edgebander
- availability: Immediately
- control unit brand: ICOS
Technical Information - IMA Combima Systems / I/R751220/R3
Control Unit
- Brand: ICOS
Additional equipment
- - Automatic insertion table
- - Agregado KFA Return
- - NC insertion system
- - Inclined roller table as inlet section
- - Additional stop ruler, adjustable via NC axis
- - Agregado double 08.376
- - Radiator 300 lg, 2x1.5 kW
- - Multiple profile/bevel unit
- - Contour milling unit KFA 30
- - Multiple profile scraper unit
Additional Information
- Technical Machine Benefits:
- - Workpiece amplification: min. 238 mm, max. 2350 mm
- - Workpiece width: min. 142 mm, max. 800 mm
- - Workpiece thickness: min. 8 mm, max. 40 mm
- - Edge height: min. 14 mm, max. 45 mm
- - Edge thickness: 0. 3 - 3. 0 mm
- - Feed speed: 5-25 m/min
- - Glue specification for workpiece thickness: max. 50mm
- - Pre-melting containers for pu glue: 2
- - Edge magazine: 12-compartment for roll material 0. 3-3 mm thick
- - Roll holder vertical: max. Roll diameter 850 mm, max. Edge height 45 mm
- Qualitative Machine Benefits:
- - Cutting unit: 08. 42, for 2 motors
- - Milling/profile milling/grooving units: two units, each with 1 motor, 100 hz, 6000 rpm and 600 rpm respectively
- - Motor shaft for hydro-format tool system
- - Return system: meinert brand
- - Flat scraper blade 08. 517
- - Copy buffing unit 08. 604
- - Buffing unit 08. 617-2
- - Double base 75,184 1050 mm high level
- - Precision in edge processing with multiple units for cutting, milling, and buffing
- - High-quality glue application system for straight edges
- - Machine still under power. The machine is designed for single-sided combination processing including formatting, edge gluing, and edge finishing of wood or wood-based panel-shaped workpieces. It is specifically tailored for the production of strand goods in the second run.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
