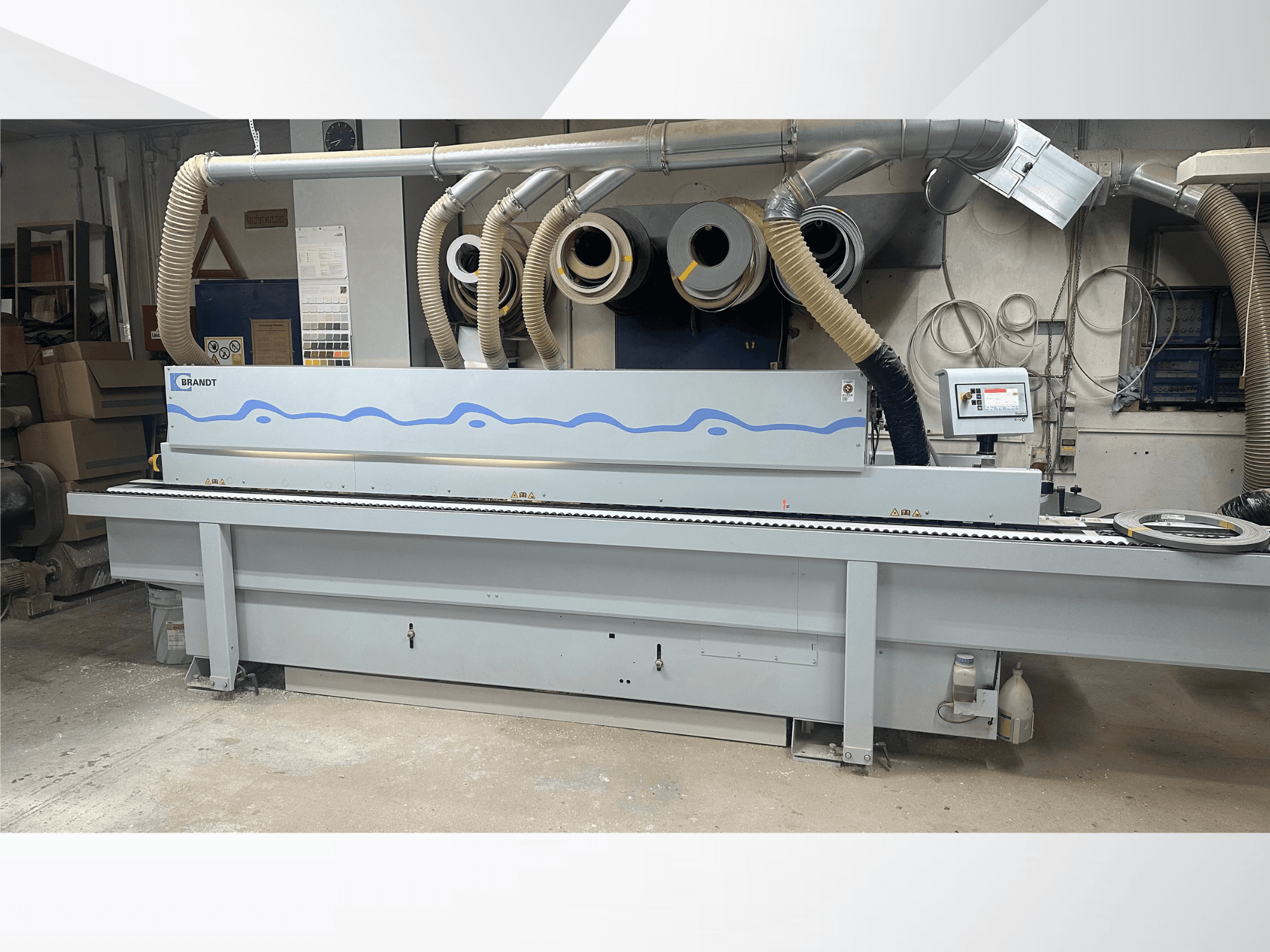

HOMAG - KDF 230DE-EDG-HOM-2014-00001

- Total Operating Hours: 1174:30.12 h

- Total Workpieces Processed: 65,428 Stck

- Total Edge Length Processed: 108,908.92 m

- Application Unit Temperature: 190 °C (Target), 76 °C (Actual)

- Feed Speed: 11 m/min

- Working Height: 950 mm

- Pneumatic Connection: min. 6 bar

- Overall Machine Length: 4,770 mm

- Workpiece Width min.: 70 mm (at 8-22 mm thickness), 120 mm (at 23-40 mm thickness), 150 mm (at 41-60 mm thickness)

- Workpiece Overhang: 38 mm

- Workpiece Thickness: 8 - 60 mm

- Edge Material Roll: 0.4 - 3 mm (max. cross section 135 mm² for PVC, 100 mm² for veneer, roll diameter max. 830 mm)

- Edge Material Strip: 0.4 - 6 mm (max. cross section 165 mm²)

- Control System: EasyTouch 2

- Operating Voltage: 400 V / 3Ph / 50Hz

- Joint Trimming Unit: 2 x 2.2 kW, 200 Hz with DIA cutter set (100 x 65 x 30 mm, Z=3, max. workpiece thickness 60 mm)

- Gluing Unit: Standard A6 with workpiece pre-heater and quick-change application unit (suitable for Granulate / PU)

- End Trimming Unit: 2 x 0.18 kW, 200 Hz, 12,000 rpm (swivel range 0-15 degrees) with pneumatic adjustment

- Fine Trimming Unit: 2 x 0.27 kW, 200 Hz, 12,000 rpm with pneumatic adjustment (chamfer/radius/straight), DFC combination cutters, and multi-roller sensing

- Corner Rounding / Form Trimming Unit: 1 x 0.35 kW, 200 Hz, 12,000 rpm (max. edge thickness 3 mm, max. workpiece thickness 60 mm, min. workpiece length 250 mm) with structural floor attachment

- Profile Scraper Unit: Quick-change heads, pneumatic adjustment, and special multi-roller sensing

- Glue Joint Scraper Unit: Included with top/bottom tracing and dust extraction

- Buffing Unit: 2 motors x 0.09 kW, tilt and height adjustable

- Pressure Line: Smooth PU top pressure rollers

- Additional Features: Hood internal lighting, feed fence extension (+300 mm), automatic edge infeed (KDX 1210/1400)
