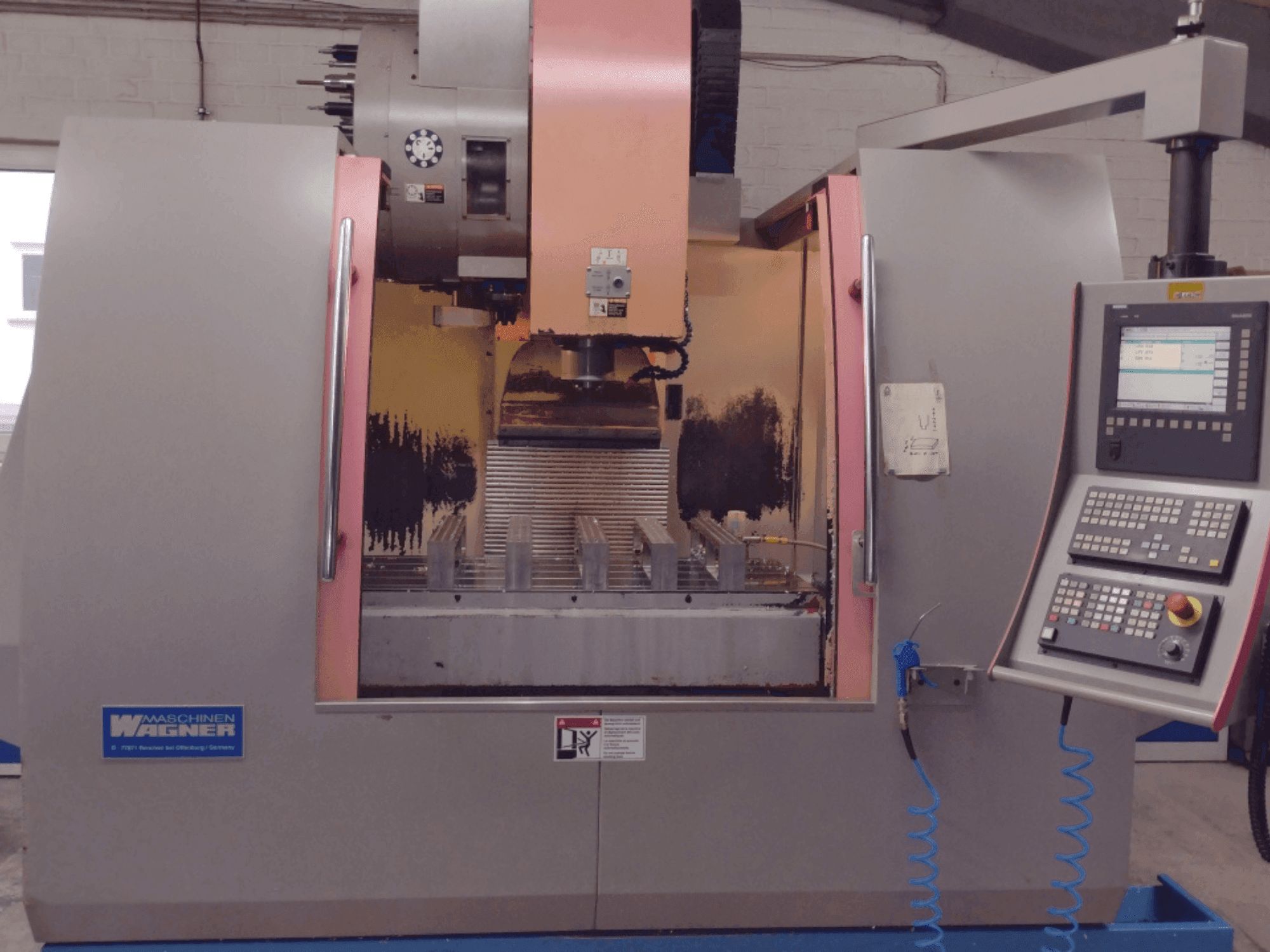

This 3-axis Wagner WMC 1100 vertical machining center was manufactured in 2004. It features a Siemens 810D control system, a spindle speed range of 1-8000 rpm, and a table load capacity of 1000 kg. Equipped with a double-arm automatic tool changer with 24 stations and preparations for a 4th axis and coolant through the spindle. Ideal for complex machining tasks. If you are looking to get high-quality machining capabilities consider the Wagner WMC 1100 machine we have for sale. Contact us for more information.

Overview

brand: WAGNER
year: 2004
MODEL: WMC 1100
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - WAGNER WMC 1100

Control Unit

Control Brand: SIEMENS
Control Model: 810D

Dimensions

Machine Depth: 3000 mm
Machine Height: 2250 mm
Machine Weight: 8000 kg

Movement

X-axis Travel: 1100 mm
Y-axis Travel: 650 mm
Z-axis Travel: 600 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Speed: 8000 RPM
Taper Size: SK 40

Additional Information

Additional equipment

Full machine enclosure with doors
Automatic tool changer with double arm
Spindle cooling system
Preparation for 4th axis / Preparation for coolant through the spindle / Preparation for chip conveyor
Flat guides with Turcite B counteracting coating
Complete cooling chain system
Automatic central lubrication
Spindle bleedout function
Signal light
Machine light

Machine Benefits

Technical Machine Benefits

Table dimensions: 1300 x 600 mm
T-slots: 18 x 5 mm
Positioning accuracy: ± 0. 003 mm
Repeatability: ± 0. 005 mm
Type: double-arm design with freely selectable tool choice
Tool change time: 2 seconds
Chip-to-chip time: 4 seconds
Spindle nose to table: 140 - 740 mm
Spindle center to column: 700 mm
Power supply: 400v / 50 hz

Extra Information

Machine feet with leveling screws Tool box with operating tools Documentation CE norm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
