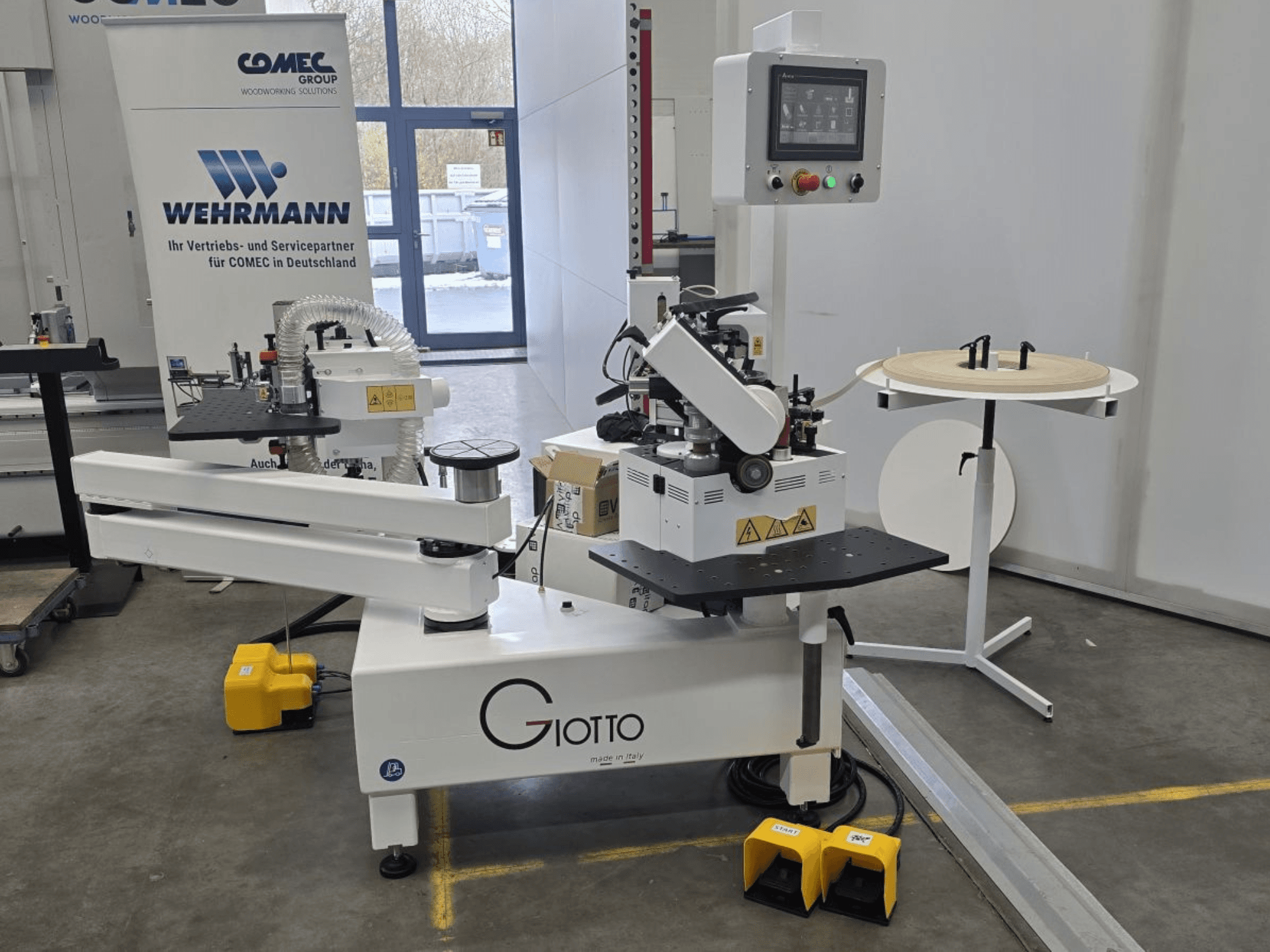

VITAP - GIOTTODE-EDG-VIT-2025-00001

Circle: min-Ø 300mm, max-Ø 2700mm

Panels with inner radii min. 250mm

Panels with outer radii min. 30-80mm (depending on edge thickness)

Panel thickness: 10-60mm

Band thickness: 1-3mm

Flush milling station with 2 motors, each 0.55 KW, 12000 rpm

Tools with R=2

Teflon-coated glue pot with 1 kg capacity, quick-change device, and integrated glue application roller

2 guide rollers for contoured workpieces

1 swiveling feed/pressure

Adjustable glue application quantity and glue temperature

Automatic roll cutting device for coil materials up to max. 3 x 45 mm

Three kinds of work: by length input, by length input with laser recognition, by foot pedal

Laser measurement for easy length recognition of closed parts without additional length measurement

Speed reduction by laser or foot pedal for radii and workpiece

Elevatable support table for small parts for manual glueing and flush milling

Reinforced, swiveling arm for workpiece support with integrated vacuum

Precise joint gluing with integrated flush milling saves time

1 person can work in pendulum use with CNC center efficiently, saving an expensive gluing unit

Vacuum arm makes handling easier

Glue feeder with sensor + tefloned gluing station for 1 kg PUR glue

Edging and milling kit for internal radii of 15mm (R=2)

Wider feeding roller for better adherence

Additional lower roller

Rectangular work plan for executing large panels
