Victor Vturn A26

Photo Gallery

Victor - Vturn A26NL-TUR-VIC-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Victor Vturn A26 For Sale | gindumac.com

Show in original language

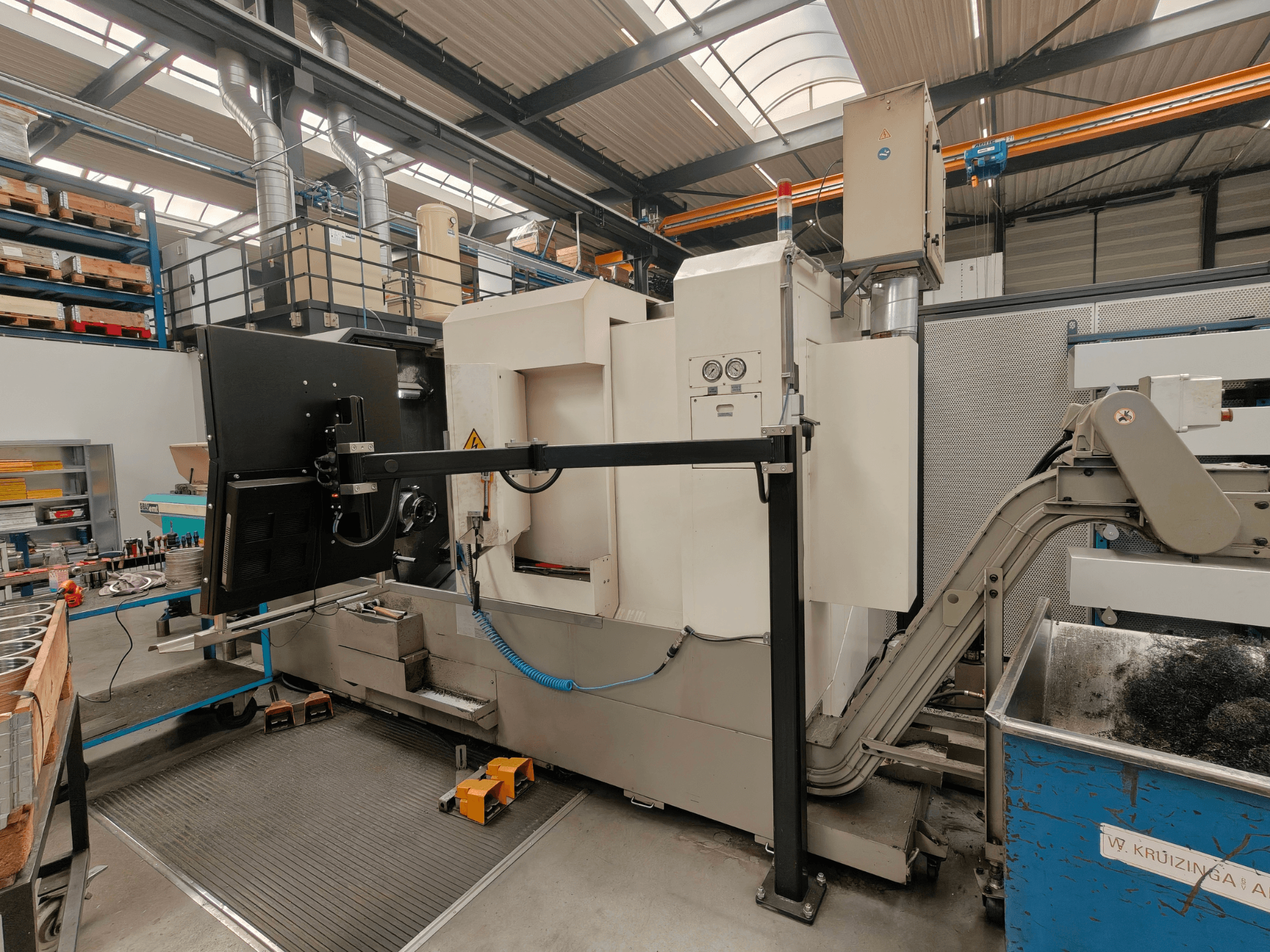

This 5-axis Victor Vturn A26 was manufactured in 2010. It features a maximum turning diameter of 381 mm and a standard turning diameter of 294 mm. The machine is equipped with a turret that holds 12 tools and has a rapid feedrate of 24 m/min. If you are looking to get high-quality turning capabilities, consider the Victor Vturn A26 horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Victor
year: 2010
MODEL: Vturn A26
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Victor Vturn A26

Control Unit

Control Brand: FANUC
Control Model: Series 18i-TB

Dimensions

Machine Height: 2350 mm
Machine Length: 4100 mm
Machine Weight: 9000 kg
Machine Width: 2100 mm

Movement

Number of Axes: 5
X-axis Travel: 260 mm
Z-axis Travel: 1300 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 18.5 kW
Spindle Speed: 3500 RPM
Tool Stations: 12

Additional Information

Swing over bed: 900 mm
Swing over carriage: 700 mm
Between centers: -
Max. turning dia.: 381 mm
Std. Turning dia.: 294 mm
Bar capacity: 75 mm
Spindle nose (chuck): A2-8(10")
Spindle bore: 86 mm
Bearing inside dia.: 130 mm
Sub-spindle Max. spindle speed: 4500 rpm
Sub-spindle Spindle nose (chuck): A2-5(6")
Sub-spindle Spindle bore: 52 mm
Sub-spindle Bearing inside dia.: 90 mm
Sub-spindle C axis least unit: 0.001 deg
Turret No. of tools: 12
Turret Tool shank size: 25 mm
Turret Max. boring bar dia: 40 mm
Turret Exchange time (T-T): 0.2 sec
Turret Milling axis speed: 3000 rpm
Tailstock Quill dia.: -
Tailstock Quill taper: -
Tailstock Quill stroke: -
Rapid feedrate: X/Z/B : 24/24/12 m/min
Cutting feedrate: X/Z : 0~1260 mm/min
Spindle motor: 15/18.5 KW
Sub-spindle motor: 5.5/7.5 Kw
Feed servo motor: X/Z/B : 3.0/4.0/3.0 KW
Milling motor: 4.0 KW
Tank capacity: 410 L
Power: 45 kva

Additional equipment

Chips conveyor type: Chain type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
