Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Victor - V Centre-80IE-MIL-VIC-1995-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Victor V Centre-80 Vertical Machining Center
Show in original language

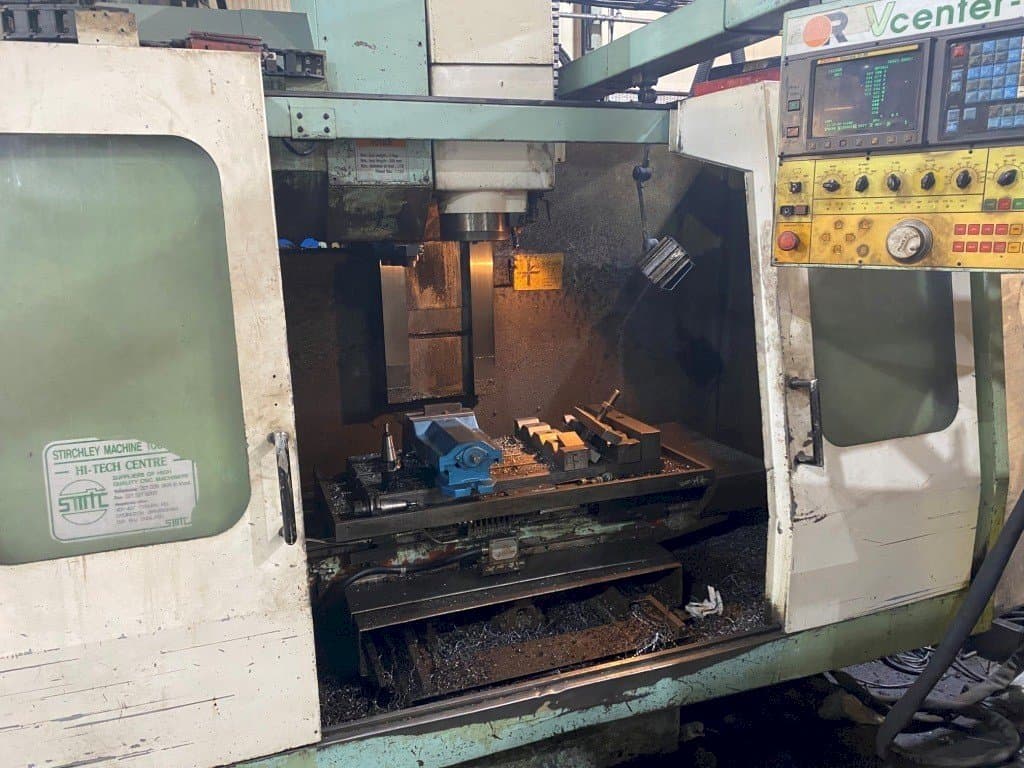

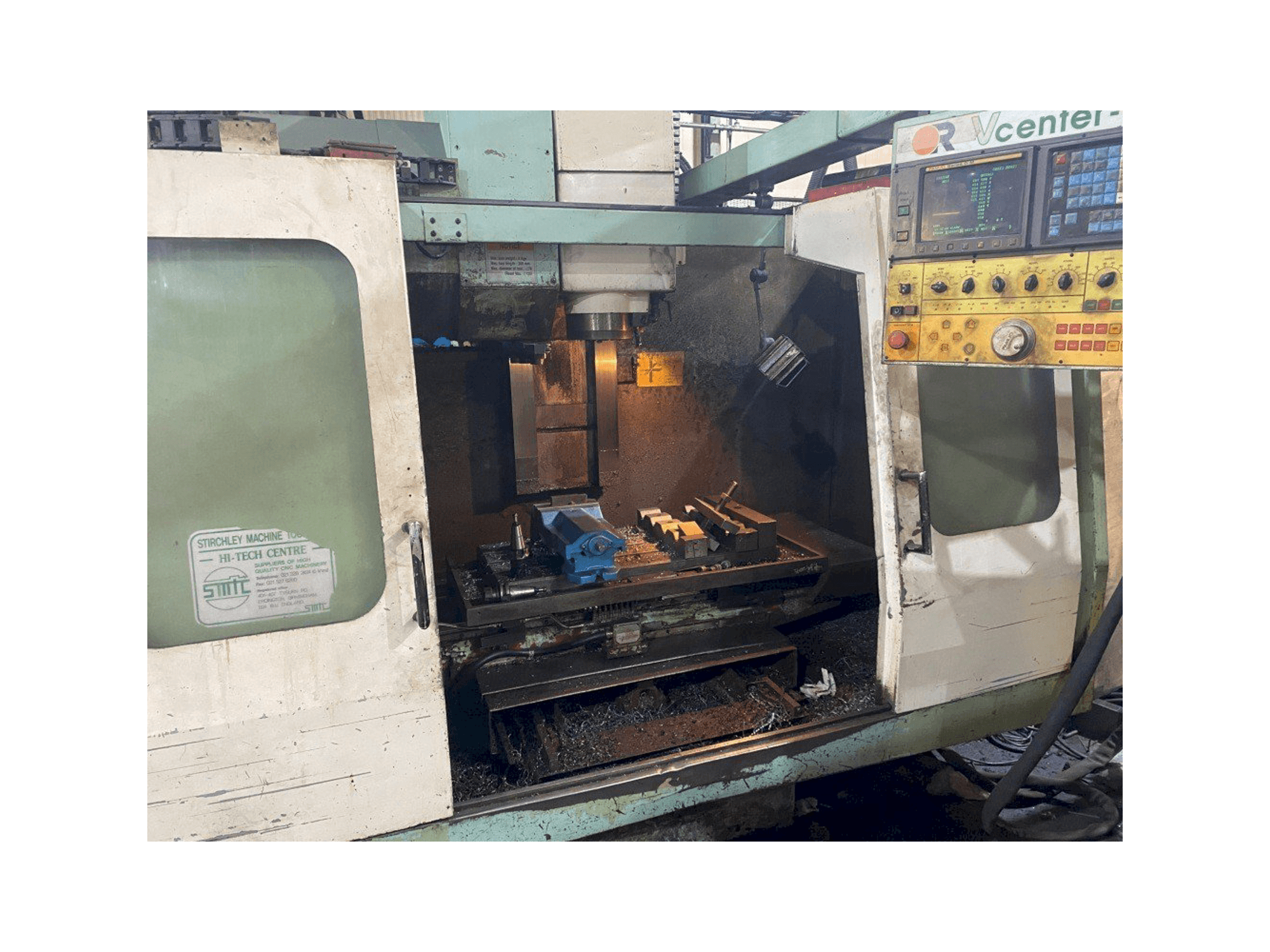

This Victor V Centre-80 Vertical Machining Center was built in the year in 1995 in Taiwan. It is equipped with a FANUC Series O-M control unit. This 3 axis machine operates with a spindle speed up to 6000 rpm.
Overview
- brand: Victor
- year: 1995
- MODEL: V Centre-80
- application type: Milling
- Location: Ireland
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Victor V Centre-80
Control Unit
- Control Brand: FANUC
- Control Model: Series O-M
Dimensions
- Machine Depth: 2825 mm
- Machine Height: 2740 mm
- Machine Weight: 4600 kg
- Table Length: 890 mm
- Table Width: 400 mm
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 410 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Number of Tools: 24
- Spindle Speed: 6000 RPM
Additional Information
Additional equipment
- Habor Chiller
Machine Benefits
Qualitative Machine Benefits
- Well maintained machine
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
