CHIRON - FZ 12 S High speedDE-MIL-CHI-1996-00003
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used CHIRON FZ 12 S High speed For Sale | gindumac.com

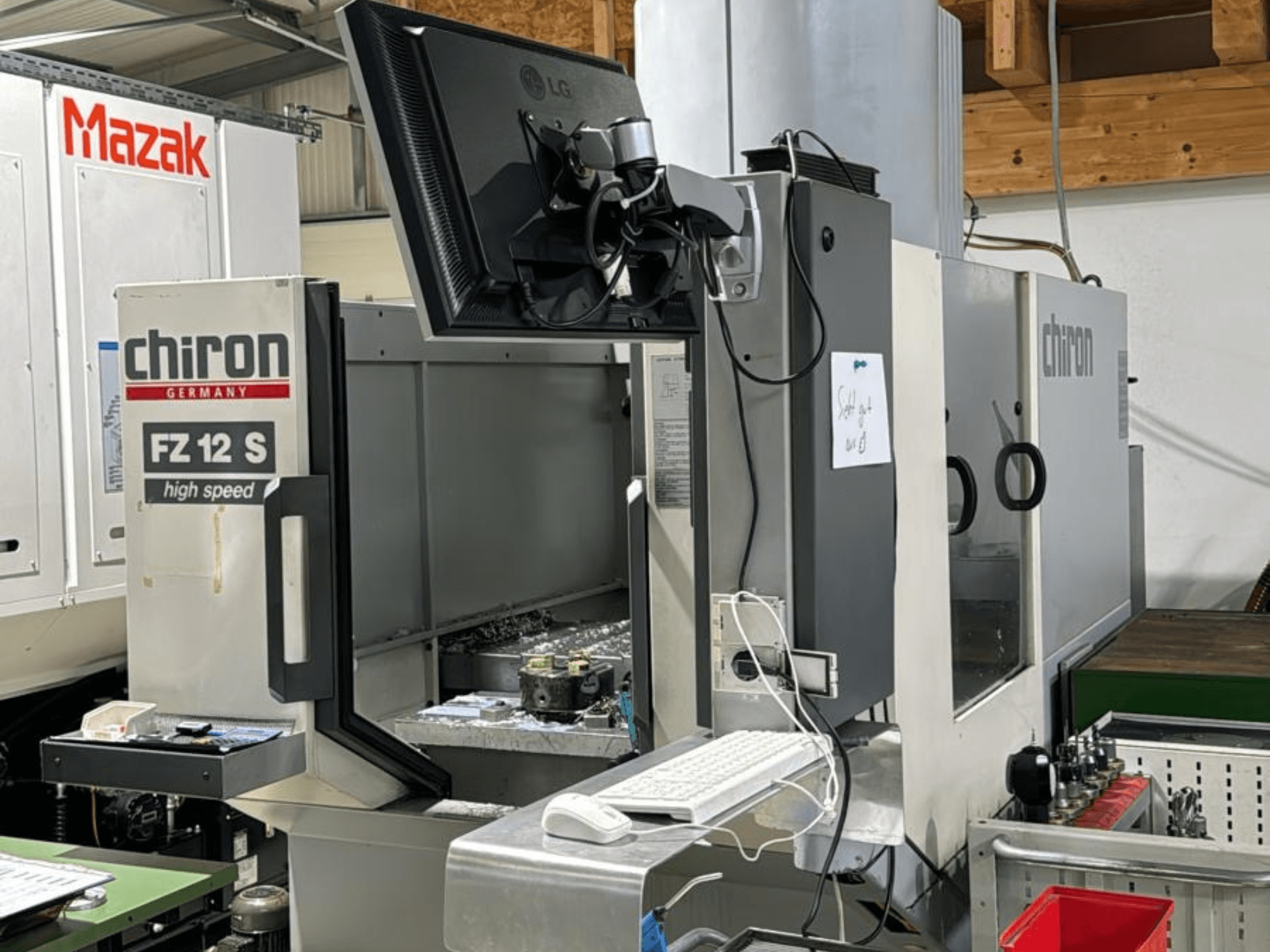

This 3-axis CHIRON FZ 12 S High speed was manufactured in 1996. It features an X-axis travel of 550 mm, Y-axis travel of 330 mm, and Z-axis travel of 425 mm. The machine has a spindle speed of 12,000 rpm and a tool capacity of 12 tools. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 12 S High speed vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: CHIRON
- year: 1996
- MODEL: FZ 12 S High speed
- production hours: 5696
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - CHIRON FZ 12 S High speed
Control Unit
- Control Brand: FANUC
- Control Model: Series 21M
Movement
- Number of Axes: 3
- X-axis Travel: 550 mm
- Y-axis Travel: 330 mm
- Z-axis Travel: 425 mm
Technical Specification
- Number of Tools: 12
- Spindle Speed: 12000 RPM
- Taper Size: SK 30
Additional Information
Installed options: Preparation for 4th and 5th axis (control cabinet ready)
Status: Powered on, fully functional
Machine hours: 5,696 h
Additional equipment
Pneumatic vices
Approximately 40 tool holders
Chip tray
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
