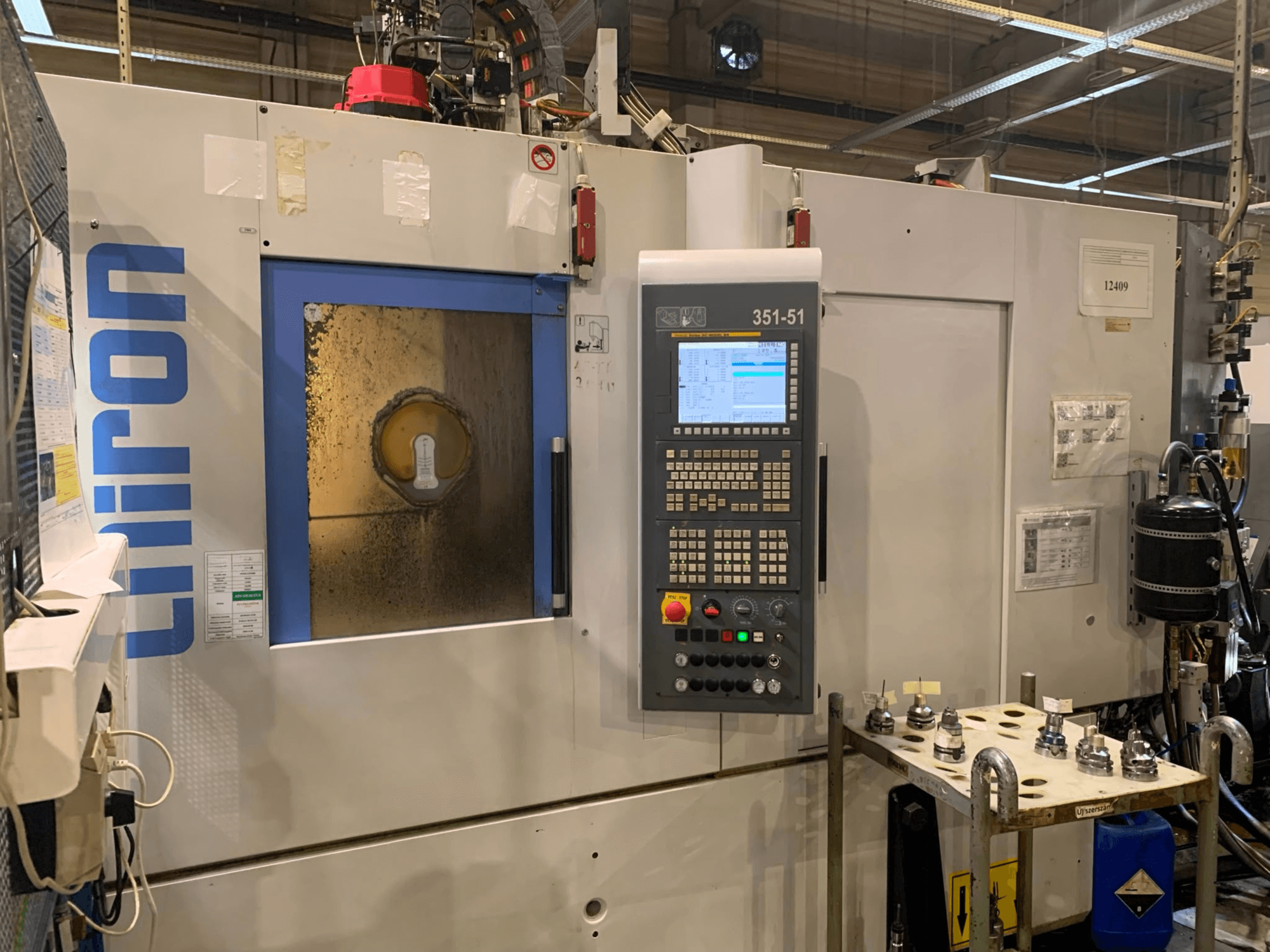

This 3-axis CHIRON DZ15W MAGNUM HS was manufactured in 2015. It features an X-travel of 730 mm, Y-travel of 400 mm, and Z-travel of 425 mm. The machine is equipped with a robust table surface measuring 1,060 mm x 430 mm. If you are looking to get high-quality machining capabilities, consider the CHIRON DZ15W MAGNUM HS vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: CHIRON
- year: 2015
- MODEL: DZ15W MAGNUM HS
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- Available from: 14/07/2026
- control unit brand: FANUC
Technical Information - CHIRON DZ15W MAGNUM HS
Control Unit
- Control Brand: FANUC
- Control Model: Series 31i B5
Movement
- Number of Axes: 3
- X-axis Travel: 730 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 425 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 12000 RPM
- Taper Size: HSK 63
Additional Information
Quantity: 4 units available
Spindle drive: 14/15 kW
Max. torque: 95 Nm
Table surface: 1.060 mm x 430 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
