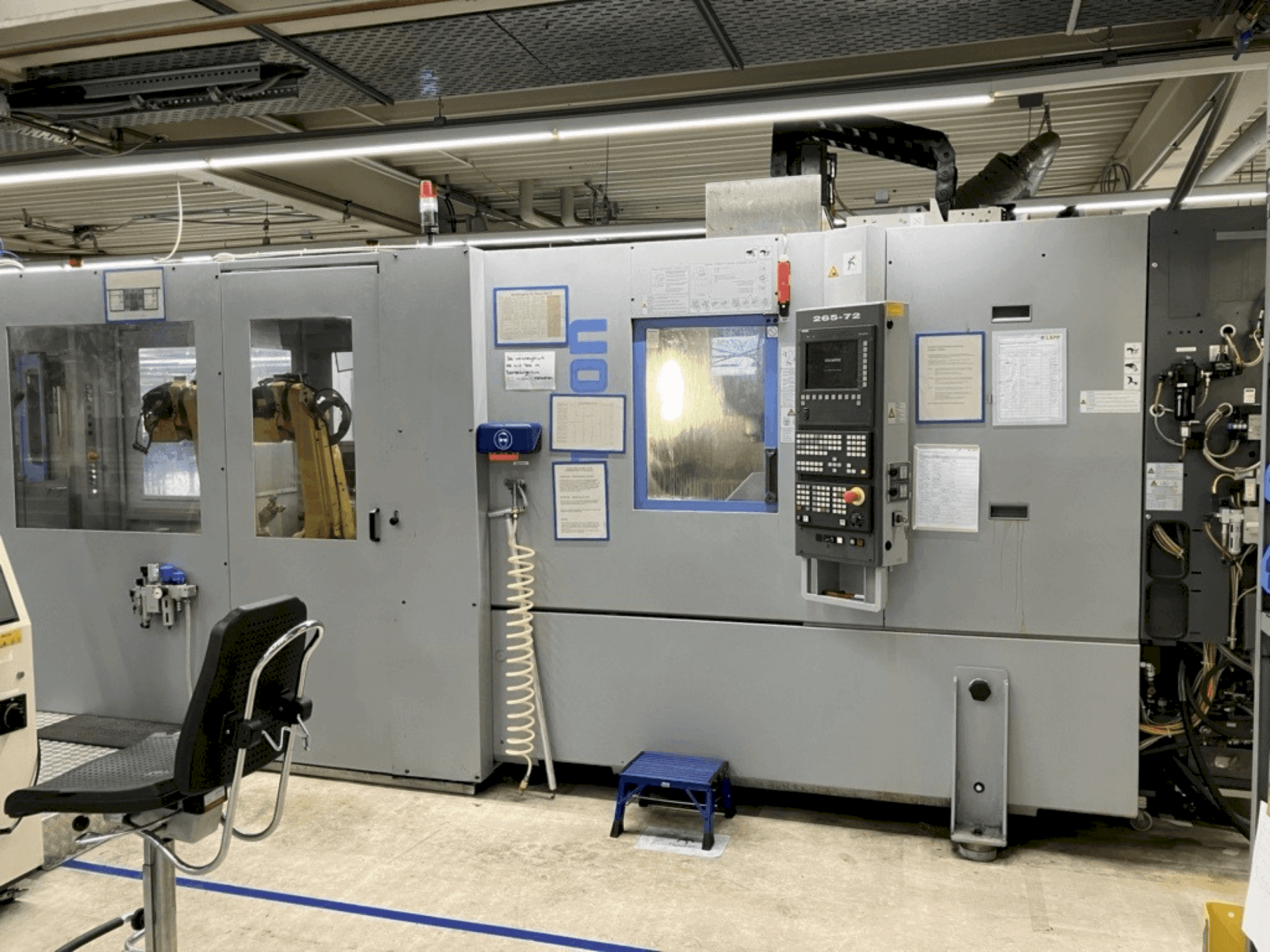

This 3-axis CHIRON FZ 12 KW vertical machining center was manufactured in 2012. It features a high-speed spindle with a maximum speed of 12,000 rpm and a rapid traverse speed of up to 60 m/min on the Z-axis. The machine includes a 24-slot automatic tool changer and can handle a table load of up to 500 kg. Ideal for precision machining tasks. Contact us for more information about this machine. Two Chiron units in combination with two x Fanuc M - 20iA (2011)
Overview
- brand: CHIRON
- year: 2012
- MODEL: FZ 12 KW + Fanuc M - 20iA (2011)
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - CHIRON FZ 12 KW + Fanuc M - 20iA (2011)
Dimensions
- Table Load: 500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 550 mm
- Y-axis Travel: 320 mm
- Z-axis Travel: 360 mm
Technical Specification
- Max. Tool Weight: 5 kg
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
Controlled axes: 6 axes
Reach: 704 mm
Acceleration/deceleration: 0 to 12000 min-1 in 0. 6 seconds
Clamping surface: 820 x 440 mm²
Drilling capacity in st 60: Ø 16 mm
Tapping: m 16
Milling capacity in st 60: 80 cm³/min
Acceleration: x & y axis 0. 7 g, z axis 1. 0 g
Extra Information
Movement Axis Movement Range and Speed: J1: 340°/360° (option) at 350°/s J2: 200° at 350°/s J3: 388° at 400°/s J4: 380° at 450°/s J5: 240° at 450°/s J6: 720° at 720°/s Allowable Load Moment: J4 & J5: 11.9 Nm J6: 6.7 Nm Repeatability: +/- 0.02 mm Maximum Speed J1: 195°/s J2: 175°/s J3: 180°/s J4 & J5: 400°/s J6: 600°/s Allowable Load Moment J4 & J5: 7.7 Nm J6: 9.8 Nm Tools Automatic Tool Changer: Tool Pockets: 24 Tool Change Time: approx. 0.9 s Chip-to-Chip Time: approx. 2.4 s The workpieces are supplied via an automated feeding system and sequentially loaded into the Chiron machining centres by two Fanuc industrial robots. Depending on the process specifications, these are either palletised automatically or further processed in a downstream step, for example by riveting. The entire system operates fully automatically.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
