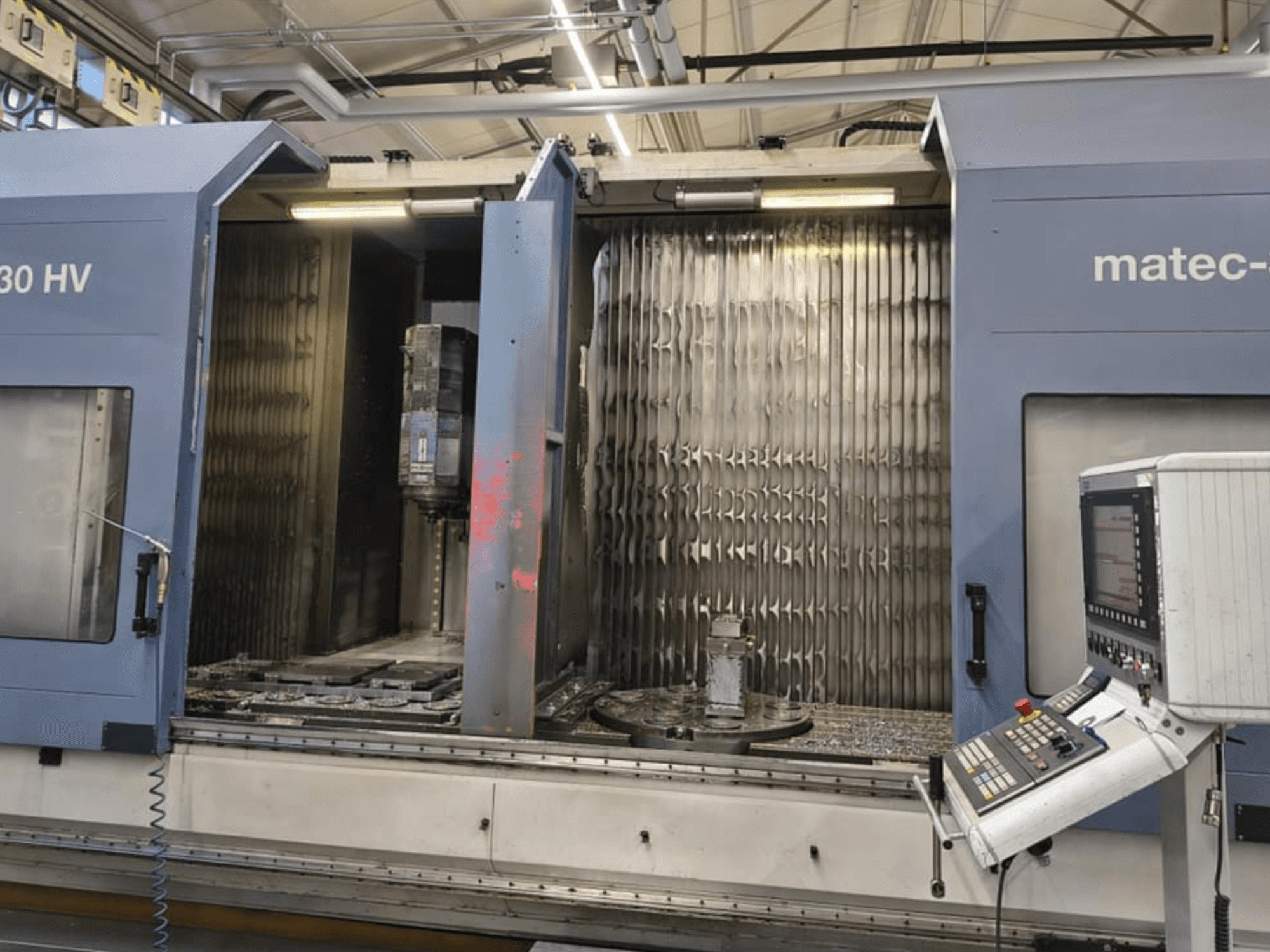

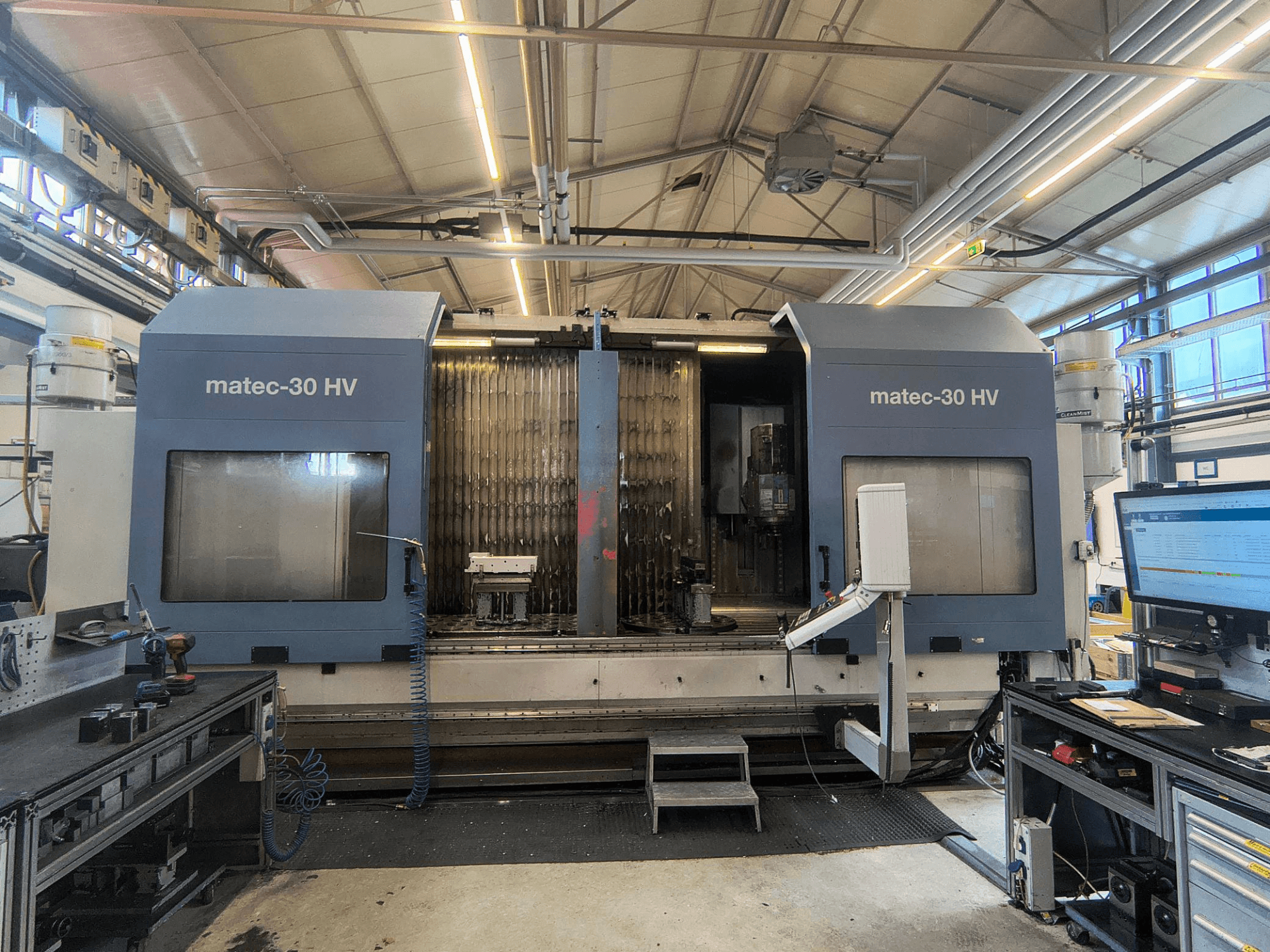

This 4-axis Matec 30 HV vertical machining centre was manufactured in 2012. It features a generous X-axis travel of 3000 mm, Y-axis travel of 800 mm, and Z-axis travel of 800 mm (horizontal). The machine is equipped with a powerful motor spindle, capable of speeds up to 9000 rpm, and a maximum table load of approximately 2500 kg. If you are looking to get high-quality machining capabilities, consider the Matec 30 HV machine we have for sale. Contact us for further details.
Overview
- brand: Matec
- year: 2012
- MODEL: 30 HV
- production hours: 50106
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - Matec 30 HV
Movement
- Number of Axes: 4
- X-axis Travel: 3000 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Power: 16 kW
- Spindle Speed: 9000 RPM
- Taper Size: SK 40
Additional Information
Travel Z: 800 mm (horizontal)
Travel Z: 700 mm (vertical)
Tilting swivel head with 1° indexing (Hirth coupling)
Swivel radius: 250 mm
Spindle power: 16 kW (40% duty cycle)
Spindle power: 11 kW (100% duty cycle)
Torque: 100 Nm (40% duty cycle)
Voltage: 400 V
Installed power: 55 kW
Central lubrication system
Machine status: fully functional
Operating hours: 50,106 h
Control: Rexroth IndraMotion MTX
Additional equipment
NC rotary table Ø800 mm (horizontal), maximum table load approx. 2500 kg
Internal coolant supply through spindle (20 bar)
Paper band filter coolant system with approx. 450 l tank
Electronic handwheel
3D measuring probe (Renishaw)
Work area lighting
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
