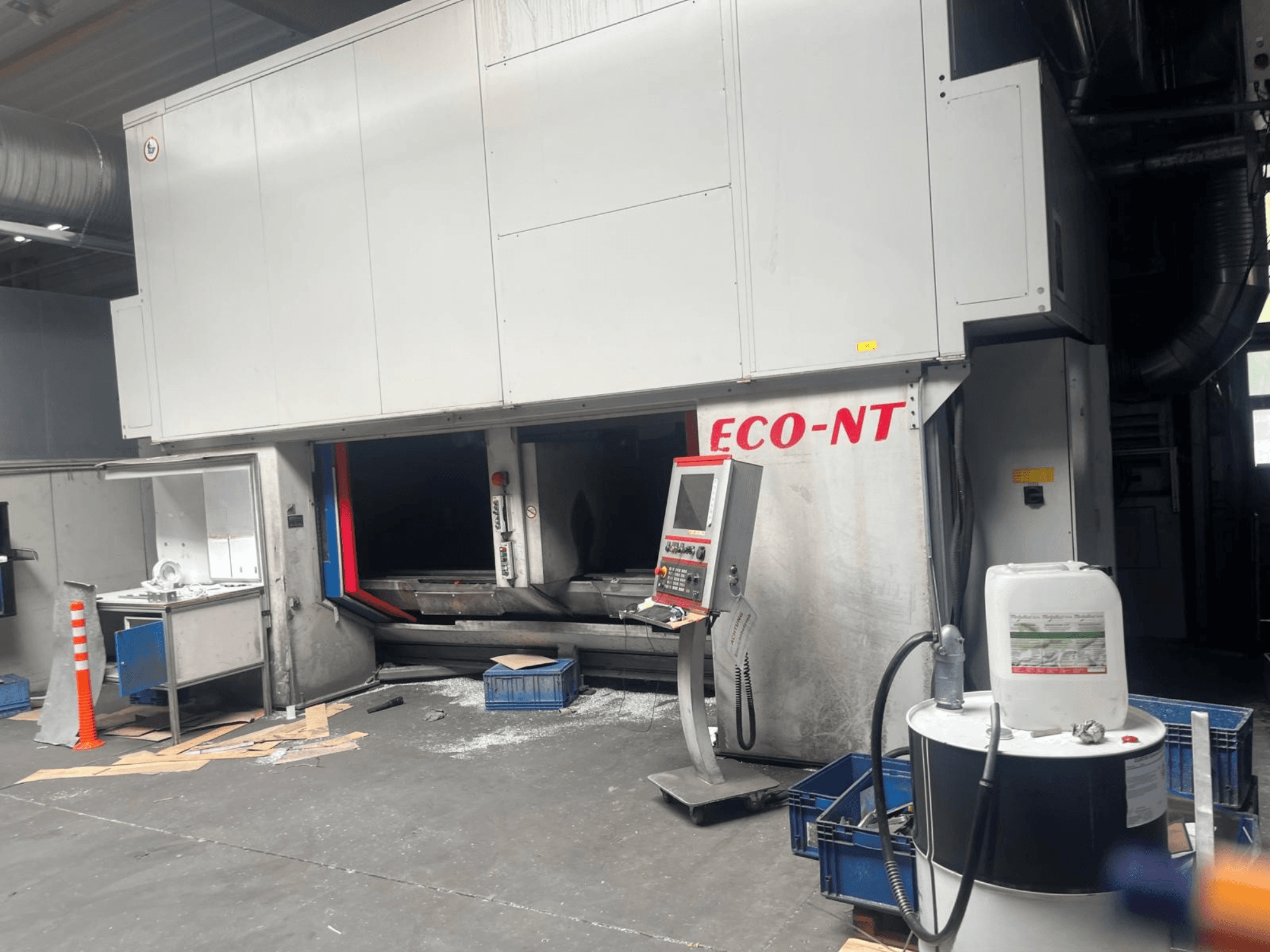

Hamuel Reichenbacher - ECO-NTDE-MIL-HAM-2011-00001

• Unit Configuration: 5-axis milling units with cardan or fork-mounted spindle

• Reckert Spindle Power: 4.6 kW - 15 kW

• Reckert Spindle Speed: 0 - 60,000 rpm

• Reckert Tool Holder: HSK F25 - F63

• Omlat Spindle Power: 3.5 kW - 7 kW

• Omlat Spindle Speed: 0 - 45,000 rpm

• Omlat Tool Holder: HSK F25 - F63

• Tool Changer: 4- to 24-position tool changer

• Extraction & Chip Disposal: Room extraction nozzle for lubricant mist and dust, clamping device extraction

• Machine Table Equipment: HPL table surface (smooth or grid), Aluminum table surface (smooth or grid), Steel strips with fitting and threaded bushes

• Working Envelope ECO-NT 5411 2K (X Axis): 2x 4,845 mm

• Workpiece Clamping Technology: Vacuum clamps, Pneumatic clamps, Special clamping devices

Control Options:

• Mobile control panel, HT2 hand-held terminal (optional), HT8 hand-held terminal (optional), Control expansion (Siemens Milling Processing Package), Remote diagnosis option (TeamViewer), Machine data acquisition option, OEM runtime license option

• Safety Features: Machine enclosure with automatic doors

Additional Equipment:

• Loading and unloading systems, Torque support for additional units, Air blow nozzles, Air ionisation, Minimal quantity lubrication, Tool breakage control, Tool recognition system, Camera system, Laser projector

Supported Materials:

• Wood, Aluminum, Steel, Inconel, Titanium, Plastic, Composite materials, GRP, Hybrid plastic/metal parts
