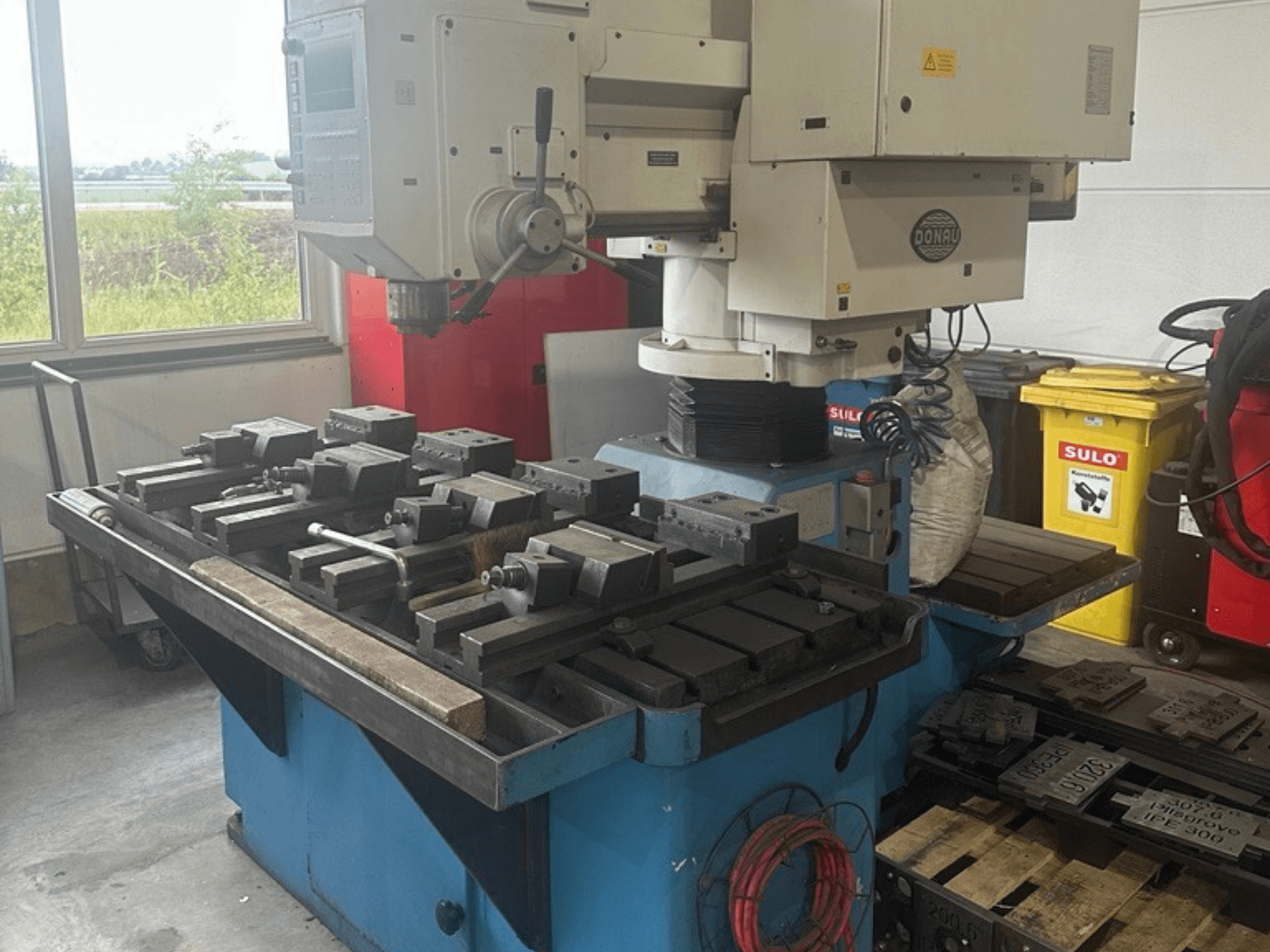

DONAU - Danumeric 440DE-MIL-DON-1997-00001

- Drilling Capacity in Solid Steel (St 60): 40 mm dia.

- Drilling Capacity in Cast Iron (GG 22): 50 mm dia.

- Tapping Capacity (Steel St 60): M 36

- Tapping Capacity (Cast Iron GG 22): M 45

- Tool Taper: SK 40 (DIN 69871, Form A)

- Spindle Speed Range: 15 – 2,800 rpm (infinitely variable)

- Spindle Motor (AC, frequency-controlled): 5.5 kW

- Spindle Torque: max. 250 Nm (constant from 15 to 200 rpm)

- Gearbox: 2-step automatically shifting (i_max 1:7)

- Quill Feed (Z-Axis): 5 – 2,000 mm/min (infinitely variable)

- Quill Travel / Stroke (Z-Axis): 200 mm

- Quill Feed Force / Pressure: 12,000 N

- Column Elevation / Hub (W-Axis): 410 mm

- Column Diameter: 195 mm

- Radial Arm Travel: 750 mm

- Drilling Radius: min. 540 mm / max. 1,290 mm

- Standard Work Table Dimensions: 600 x 1,200 mm (with 4 T-slots 18 mm, pitch 125 mm)

- Table Height: 900 mm

- Distance Spindle Nose to Table: 95 – 705 mm

- Distance Spindle Nose to Floor: 995 – 1,605 mm

- Maximum Workpiece Dimensions: L 2,950 mm x W 1,050 mm x H 1,350 mm

- Rapid Traverse (X / Y Axis): 7.5 m/min

- Rapid Traverse (Z-Axis): 5.0 m/min

- Rapid Traverse (W-Axis): 3.0 m/min

- Positioning Accuracy (X, Y): ± 0.075 mm

- Repeatability (X, Y): ± 0.030 mm

- Positioning Accuracy (Z, W): ± 0.05 mm

- Repeatability (Z, W): ± 0.03 mm

- Control System: 32-Bit CPU CNC Control (4 axes: X, Y, Z, W)

- Screen: 9" Electroluminescent Display (EL, illuminated)

- Program Memory: 2,000 NC blocks

- Interfaces: V.24 / RS-232-C

- Operating Voltage: 400 V / 50 Hz

- Control Voltage: 24 V DC

- Connected Load: 13.0 kVA

- Machine Weight: approx. 2,610 kg (with 600 x 1,200 mm table)
