Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Unisign - UNICOM 8DE-MIL-UNI-2001-00002
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Unisign UNICOM 8 Vertical Machining center

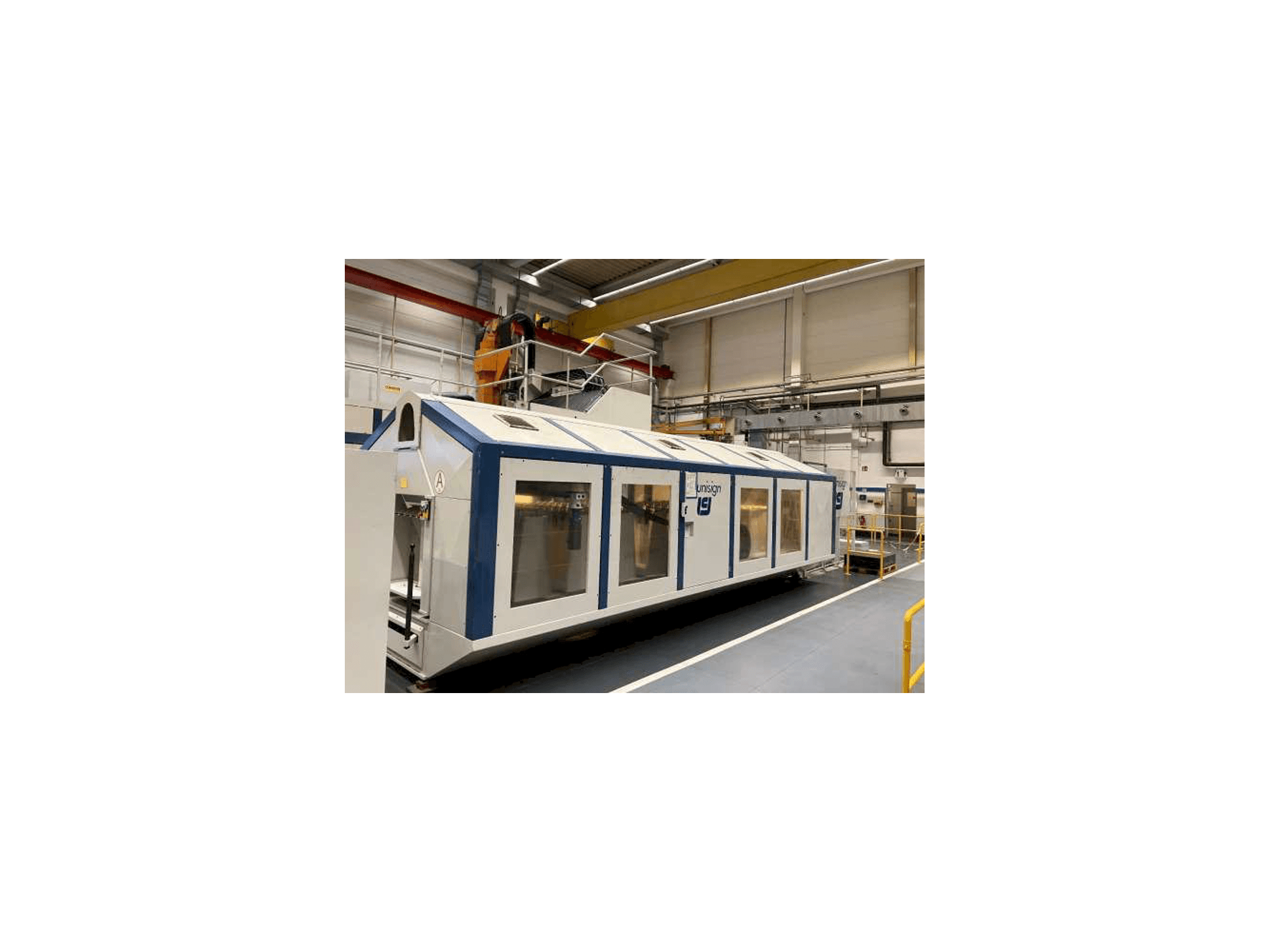

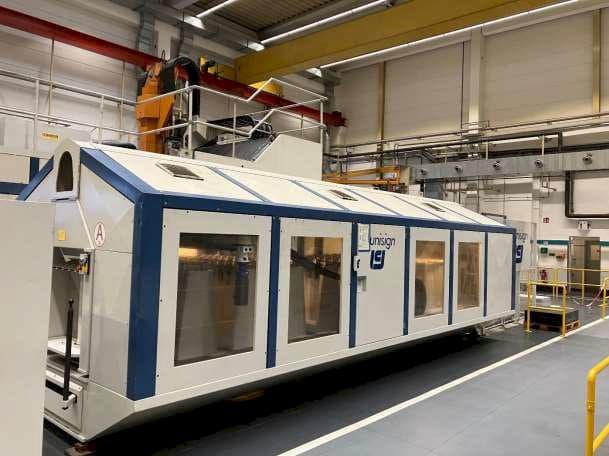

This Unisign UNICOM 8 Vertical Machining center was manufactured in the year 2001 and has 60632 production hours. The machine has a spindle speed of 6000 rpm.
Overview
- brand: Unisign
- year: 2001
- MODEL: UNICOM 8
- production hours: 60632
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - Unisign UNICOM 8
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Technical Specification
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Pallet station
- Slot table 140mm grid for max. M20
- Table rotation and head swivel fulfill the 4 and 5 axis
Technical Machine Benefits
- Pallets 3 pieces 1700x1700mm
- Long spindle up to 4000 1/min
- Long angle head up to 4000 1/min
- Angle head up to 6000 1/min (rotary union defective)
- Swivel head up to 10000 1/min
- Visiport near the control panel
- Wkz magazine
- Max d=200mm 208 places
- Max d=250mm 2 places
- Tool breakage control
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
