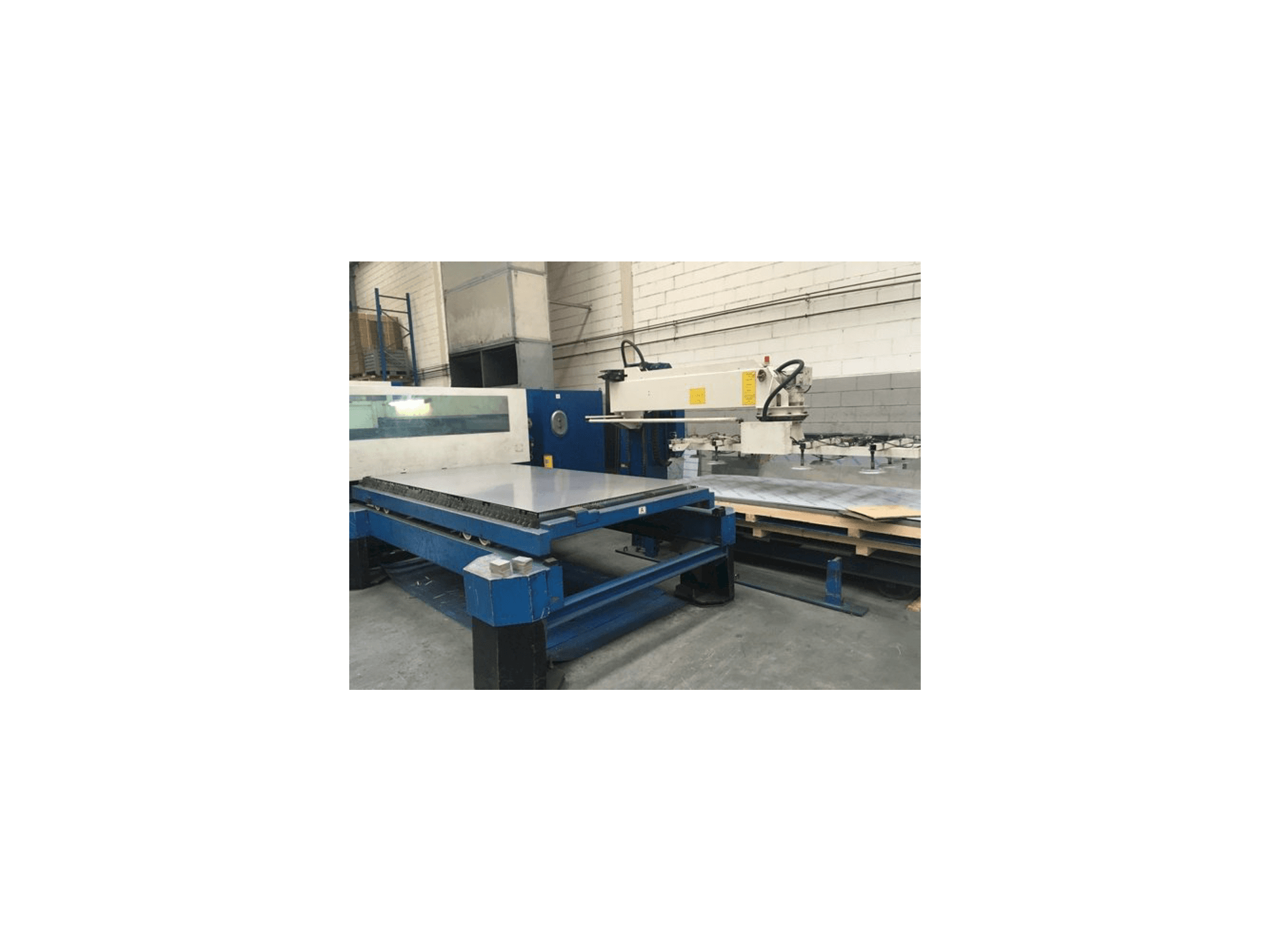

Front view of Trumpf Trumatic L3050 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L3050

Photo Gallery

TRUMPF - Trumatic L3050ES-LAS-TRU-2002-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Trumatic L3050 by Trumpf - Pre-Owned Laser Machine

Show in original language

This Trumpf Trumatic L3050 Laser Cutting Machine was built in 2002 in Germany and has been operative for 43039 hours. Operated through a SIEMENS SINUMERIK 840 D Control unit, this machine can work with a laser power of 5 kW.

Overview

brand: TRUMPF
year: 2002
MODEL: Trumatic L3050
production hours: 43039
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3050

General Data

Measurements width: 11100 mm
Measurements depth: 4600 mm
Measurements height: 2400 mm
Machine weight: 12000 kg

Control Unit

Model: Sinumerik 840 D
Brand: SIEMENS

Main drive

Laserpower: 5 kW
Laser type: TLF 500

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 100 mm

Max Material thickness

Stainless steel: 20 mm
Aluminum: 12 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
