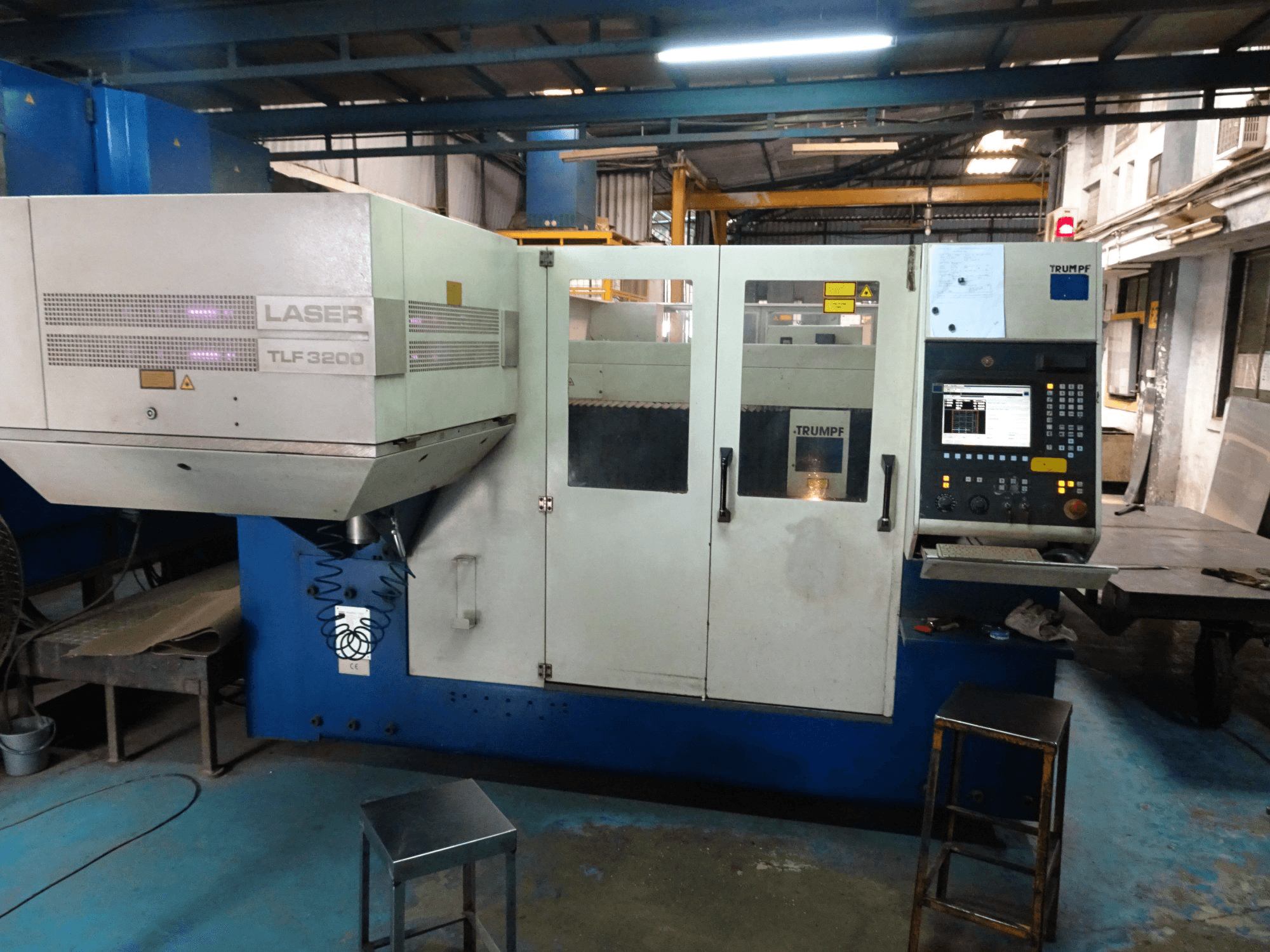

Front view of Trumpf Trumatic L3020 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L3020

Photo Gallery

TRUMPF - Trumatic L3020IN-LAS-TRU-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic L3020 Laser Cutting Machine

Show in original language

This Trumpf Trumatic L3020 Laser Cutting Machine, made in Germany in 2005, has a working record of around 32000 production hours. Equipped with a SIEMENS SINUMERIK 840D Control unit, this well maintained machine has mainly worked with 4 mm steel sheets during the past and comes with a nozzle and software included.

Overview

brand: TRUMPF
year: 2005
MODEL: Trumatic L3020
production hours: 32000
application type: Cutting
Location: India
machine type: CO2 Laser Cutting Machine

Technical Information - TRUMPF Trumatic L3020

General Data

Measurements width: 4600 mm
Measurements depth: 9300 mm
Measurements height: 2000 mm
Machine weight: 10500 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Laserpower: 3.2 kW
Laser type: CO2
Laser brand: Trumpf

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Max Material thickness

Steel: 15 mm
Stainless steel: 10 mm
Aluminum: 3 mm

Media

Main electronic connection: 415 V / 50 Hz
Power consumption: 73 kVA
Internal cooling: Yes

Additional equipment

- Nozzle
- Software

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
