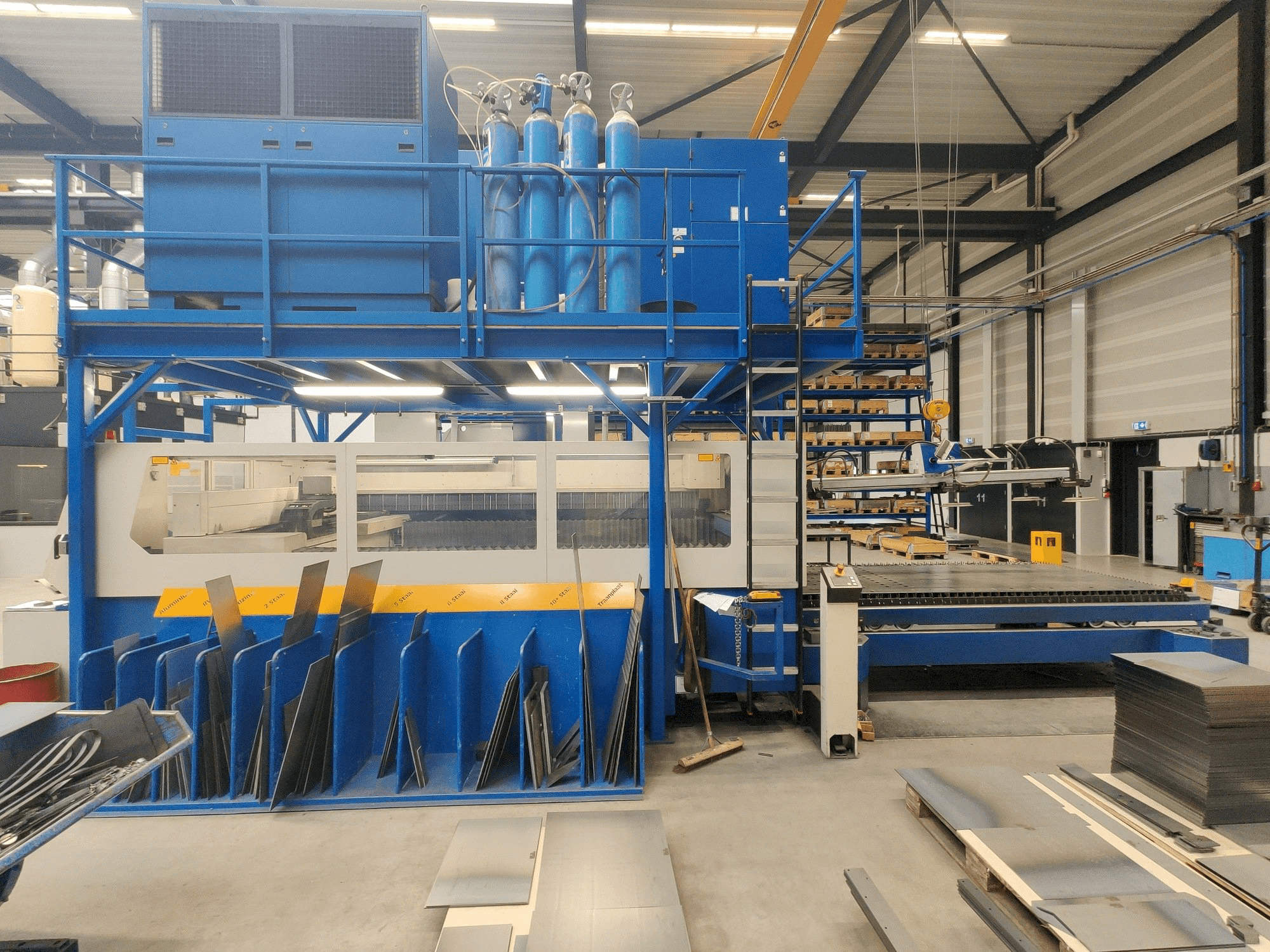

Left side view of Trumpf Trumatic L 3030 machine
Left side view of Trumpf Trumatic L 3030 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - Trumatic L 3030NL-LAS-TRU-2005-00002

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf Trumatic L 3030 Laser Cutting Machine was manufactured in the year 2005 in Switzerland. It has just 42043 of cutting hours. This machine work with a laser power of 4 kW, and sheets up to 3000 x 1500 mm. There is one licence of TruTops included with the machine.

Overview

  • brand: TRUMPF
  • year: 2005
  • MODEL: Trumatic L 3030
  • production hours: 42043
  • application type: Cutting
  • Location: Netherlands
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold

Technical Information - TRUMPF Trumatic L 3030

General Data

  • Measurements width: 9800 mm
  • Measurements depth: 5300 mm
  • Measurements height: 2000 mm
  • Machine weight: 11500 kg

Main drive

  • Laserpower: 4 kW
  • Laser type: CO2

Movement

  • X-AXIS Movement: 3000 mm
  • Y-AXIS Movement: 1500 mm
  • Z-AXIS Movement: 115 mm

Media

  • Main electronic connection: 400 V / 50 Hz
  • Power consumption: 88 kVA

    Additional equipment

    • - there is one licence of TruTops included with the machine.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Incl 7,5, 5,0, 3,75inch lenses
        • - Sheets: up to 3000x1500 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
