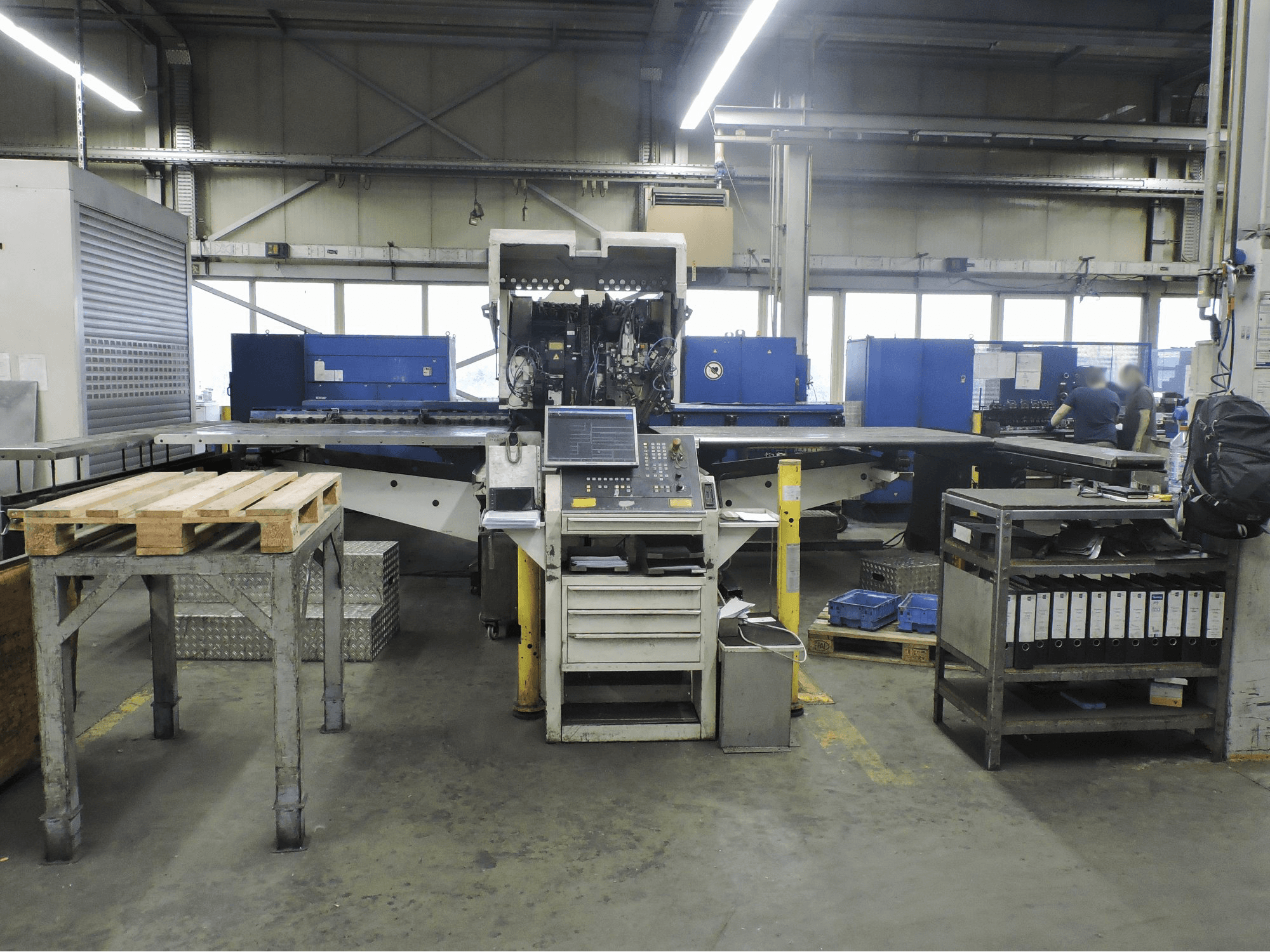

Front view of Trumpf Trumatic 600L machine
Front view of Trumpf Trumatic 600L machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - Trumatic 600LDE-PUN-TRU-1997-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf Trumatic 600L Laser Punch Combination Machine was manufactured in Germany in 1997 and has a working record of approximately 95000 working hours. This large span punching machine is equipped with three clamps and a SIEMENS 840D Control unit with RS232 interface. In the past, this equipment has worked mostly on up to 2 mm thick mild steel, but can handle materials with a thickness up to 6 mm and stands in a very good condition, including the complete machine head assembly that has been aligned last year. Station cartridges and tools are included as additional equipment.

Overview

  • brand: TRUMPF
  • year: 1997
  • MODEL: Trumatic 600L
  • production hours: 95000
  • application type: Cutting
  • Location: Germany
  • machine type: CO2 Laser Cutting Machine
  • control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic 600L

General Data

  • Machine weight: 23000 kg

Control Unit

  • Model: SINUMERIK 840D
  • Interface: RS232
  • Brand: SIEMENS

Main drive

  • Laserpower: 2.2 kW
  • Laser type: Co2
  • Punching force: 220 kN
  • Maximum sheet thickness: 6 mm
  • Laser brand: Trumpf

Movement

  • X-AXIS Movement: 2500 mm
  • Y-AXIS Movement: 1500 mm

Table

  • Max punching diameter: 76.2 mm

Tools

  • Number of index: 18
  • Number of stations: 18
  • Max tool diameter: 76.2 mm

Max Material thickness

  • Steel: 6 mm
  • Stainless steel: 4 mm
  • Aluminum: 6 mm

Machine specific data

  • Power meas. by software: 1975 W
  • Power meas. at head: 2000 W
  • Number of cutting heads: 1
  • Size of cutting head 1: 5"
  • Laser turbine details: Oil turbine
  • TASC Version: 3

Media

  • Main electronic connection: 400 V
  • Power consumption: 66 kVA
  • Air pressure: 7 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
