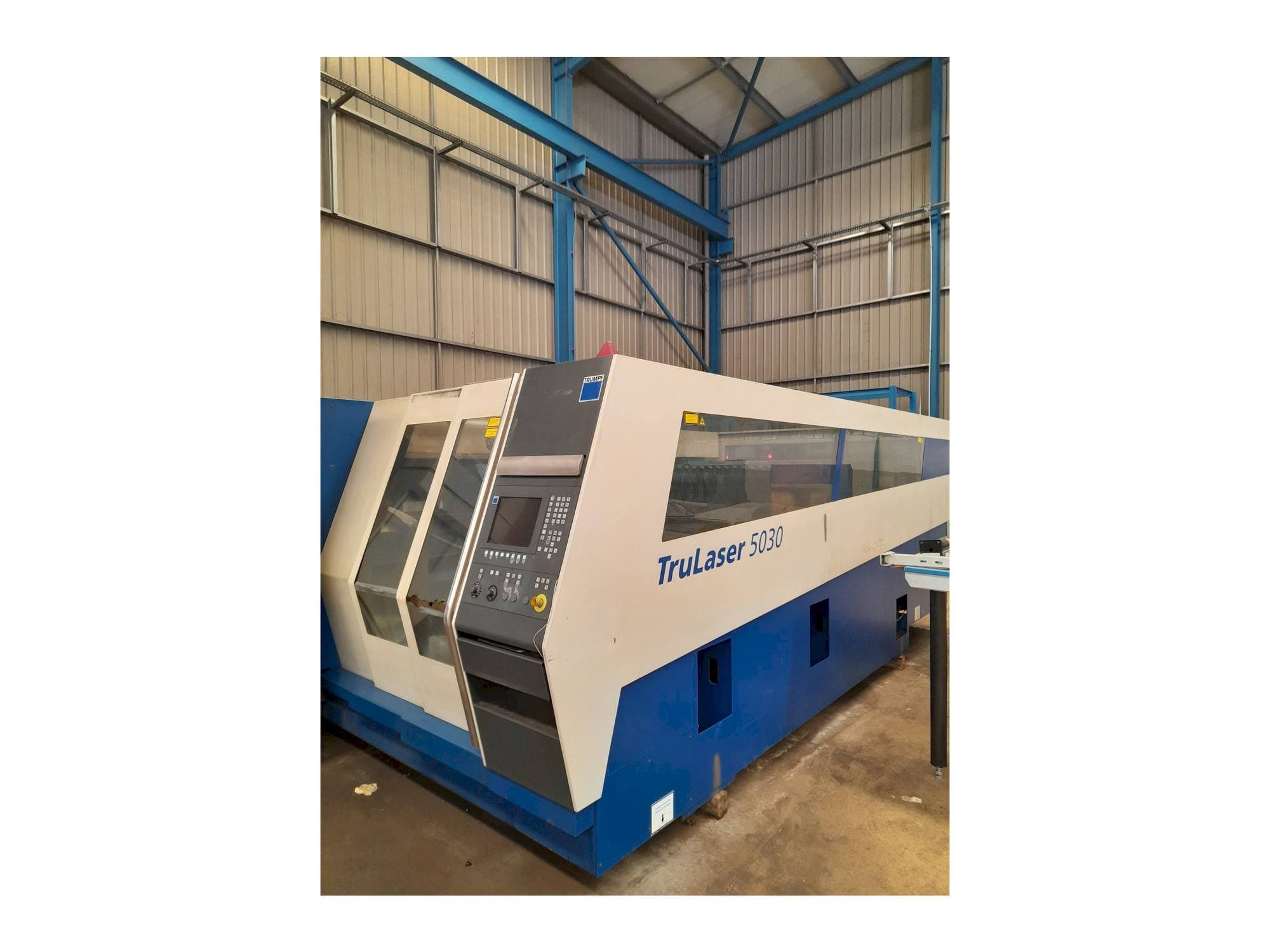

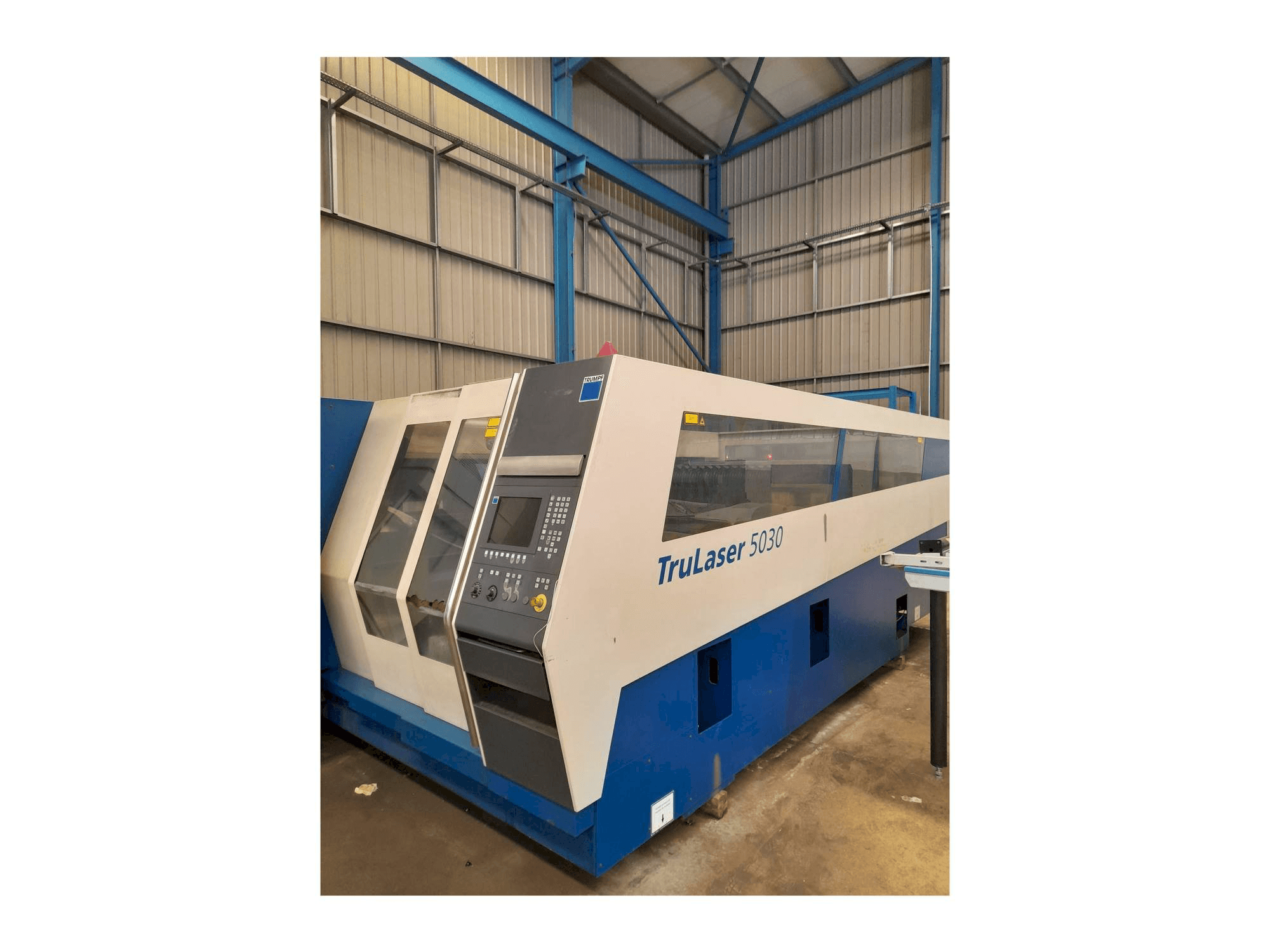

TRUMPF TruLaser 5030
TRUMPF - TruLaser 5030
2007
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Trumpf TruLaser 5030 Laser cutting machine
This Trumpf TruLaser 5030 Laser cutting machine was made in 2007 in Switzerland and has 55015 production hours. It is equipped with a SIEMENS SINUMERIK 840D control unit. The machine has a laser power of 6 kW.
Overview
- brand: TRUMPF
- year: 2007
- MODEL: TruLaser 5030
- production hours: 55015
- application type: Laser Cutting
- Location: Spain
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: ES-LAS-TRU-2007-00001
Technical Information
General Data
- Measurements width: 11250 MM
- Measurements depth: 4600 MM
- Measurements height: 2400 MM
- Machine weight: 12500 KG
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 840D
Main drive
- Laserpower: 6 KW
- Laser type: CO2
- Laser brand: TRUFLOW
Movement
- X-AXIS Movement: 3000 MM
- Y-AXIS Movement: 1500 MM
- Z-AXIS Movement: 115 MM
Workpiece
- Workpiece x: 3000 MM
- Workpiece y: 1500 MM
- Workpiece weight: 900 KG
Max Material thickness
- Steel: 25 MM
- Stainless steel: 20 MM
- Aluminum: 15 MM
Media
- Main electronic connection: 400 V / 50 HZ
- Air pressure: 7-10 BAR
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
