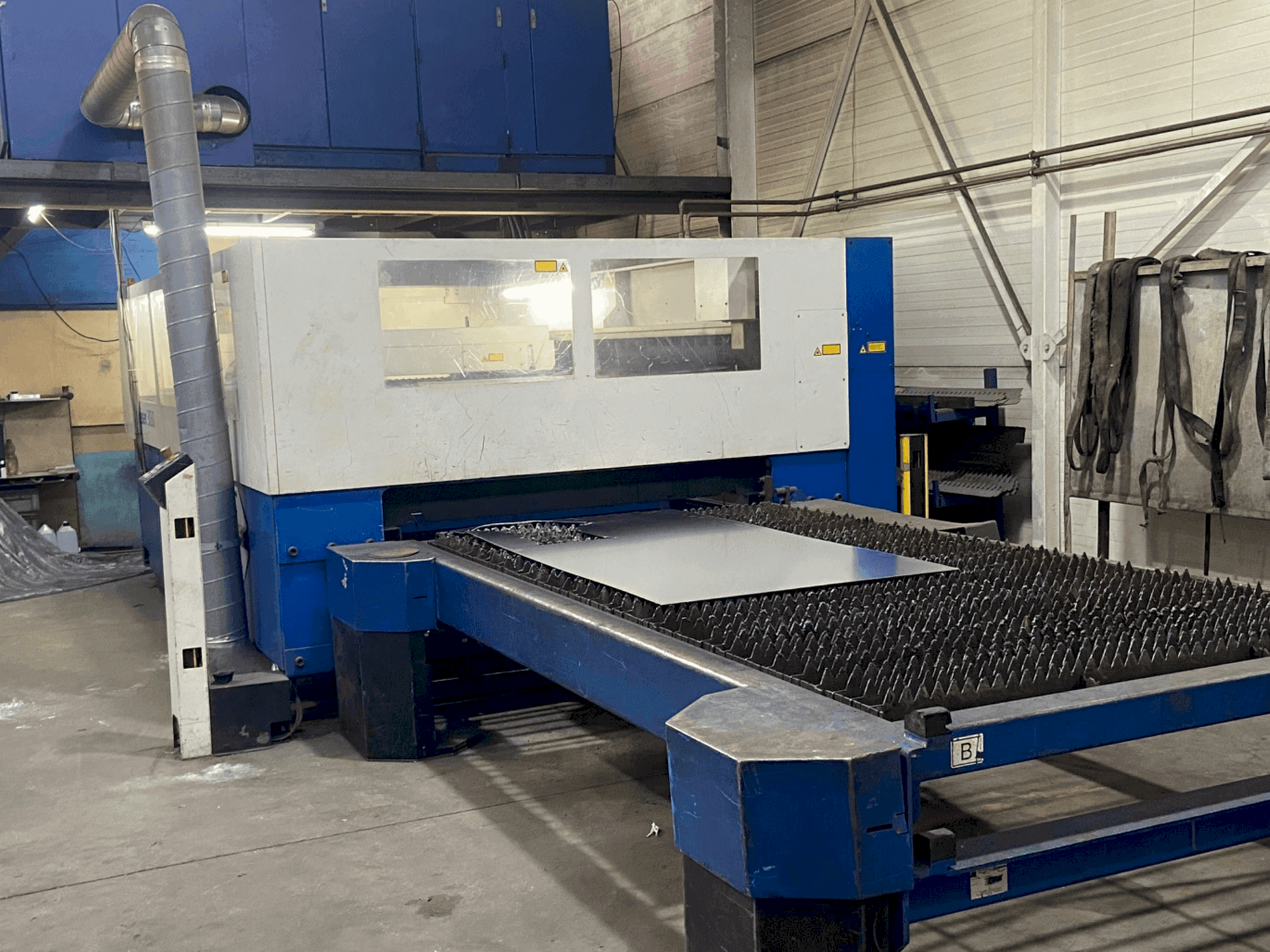

Front view of TRUMPF TruLaser 3030  machine

TRUMPF - TruLaser 3030PL-CUT-TRU-2007-00001

Rs. 3,398,900
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis TRUMPF TruLaser 3030 was manufactured in 2007. A robust CO2 laser cutting machine, it features a TRUMPF TruFlow 4000 laser source with a power of 4.0 kW, capable of cutting up to 20 mm in mild steel, 12 mm in stainless steel, and 10 mm in aluminum. It includes an automated LiftMaster loading system. Ideal for high precision and efficiency, the TRUMPF TruLaser 3030 machine we have for sale. Contact us for further details regarding this co2 laser cutting machine.

Overview

  • brand: TRUMPF
  • year: 2007
  • MODEL: TruLaser 3030
  • production hours: 42745
  • application type: Cutting
  • Location: Poland
  • machine type: CO2 Laser Cutting Machine
  • availability: Immediately

Technical Information - TRUMPF TruLaser 3030

General Data

  • Measurements width: 5300 mm
  • Measurements depth: 9800 mm
  • Measurements height: 2000 mm
  • Machine weight: 11500 kg

Main drive

  • Laserpower: 4.0 kW
  • Laser type: CO2 Laser
  • Number of axis: 3

Movement

  • X-AXIS Movement: 3000 mm
  • Y-AXIS Movement: 1500 mm
  • Z-AXIS Movement: 115 mm

    Additional equipment

    • - LiftMaster: Automated material loading system included

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Laser source: trumpf truflow 4000
        • - Wavelength: 10. 6 μm
        • - Max material dimensions: 3000 x 1500 mm
        • - Max cutting thickness (mild steel): 20 mm
        • - Max cutting thickness (stainless steel): 12 mm
        • - Max cutting thickness (aluminum): 10 mm
        • - The laser is in very good technical condition, the machine is connected and it can be tested

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
