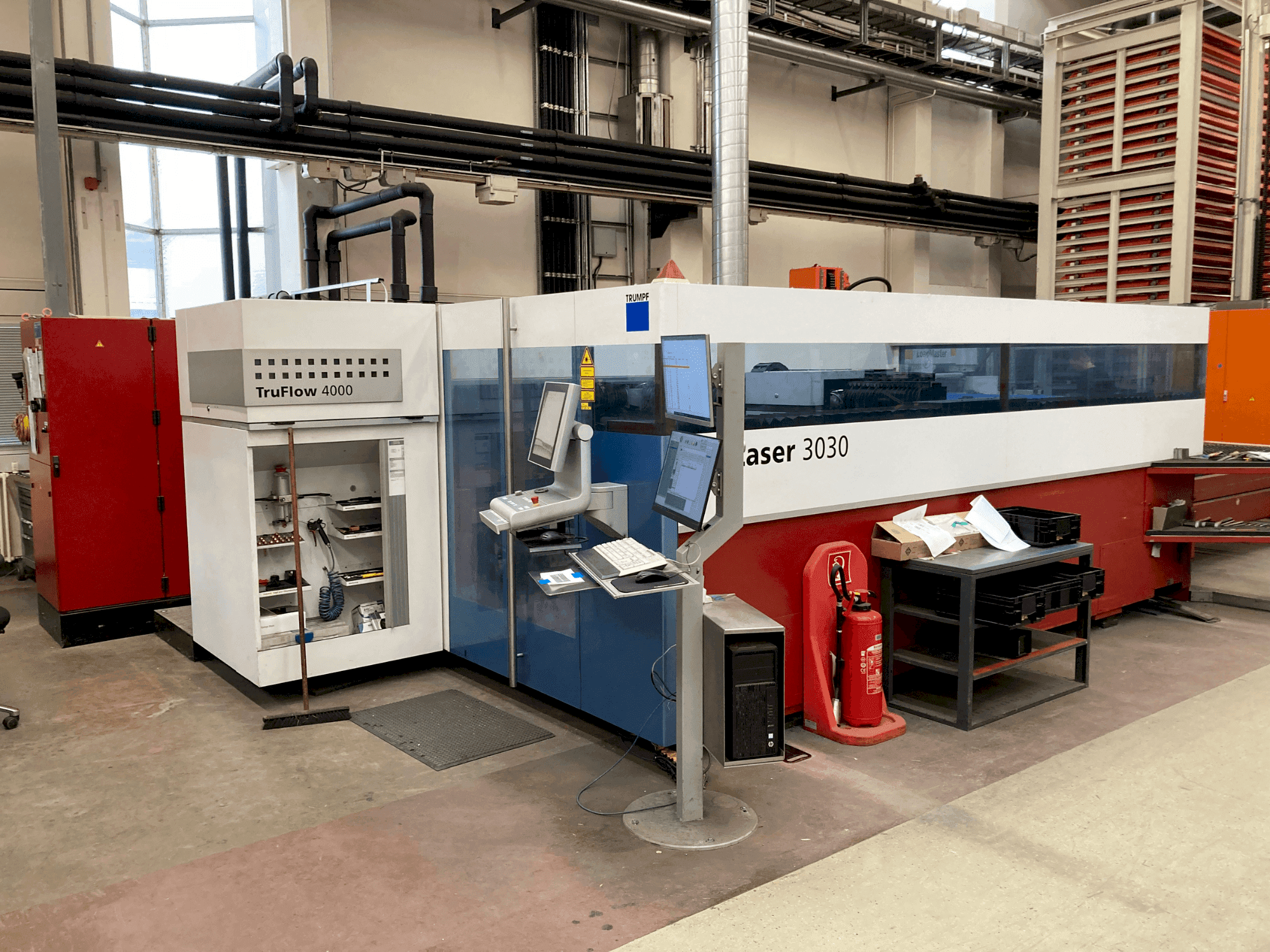

Front view of TRUMPF TruLaser 3030 machine
Front view of TRUMPF TruLaser 3030 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - TruLaser 3030DE-CUT-TRU-2012-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis TRUMPF TruLaser 3030 was manufactured in 2012. It features a Siemens Sinumerik 840D SL control system and a Trumpf TruFlow 3200 laser with 3200W power. Capable of cutting mild steel up to 20mm, stainless steel up to 12mm, and aluminium alloy up to 8mm. Includes FocusLine, NitroLine, PlasmaLine, and a cooling unit. Ideal for high-speed precision cutting with a maximum speed of 140m/min. Contact us for further details regarding this co2 laser cutting machine.

Overview

  • brand: TRUMPF
  • year: 2012
  • MODEL: TruLaser 3030
  • application type: Cutting
  • Location: Germany
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3030

General Data

  • Measurements width: 4600 MM
  • Measurements depth: 9300 MM
  • Measurements height: 2200 MM
  • Machine weight: 12000 KG

Control Unit

  • Model: Sinumerik 840D SL
  • Brand: SIEMENS

Main drive

  • Laserpower: 3200 W KW

Movement

  • X-AXIS Movement: 3000 mm
  • Y-AXIS Movement: 1500 mm
  • Z-AXIS Movement: 115 mm (reduced by 25 mm with automation)

Table

  • Outer length: 3000 mm
  • Outer width: 1500 mm

Max Material thickness

  • Steel: 20 mm
  • Stainless steel: 12 mm
  • Aluminum: 8 mm

    Additional equipment

    • - PerceLIne
    • - FocusLine
    • - NitroLine
    • - PlasmaLine
    • - Cooling unit

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High simultaneous speed of 140 m/min

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Alessandro Martini

    Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
