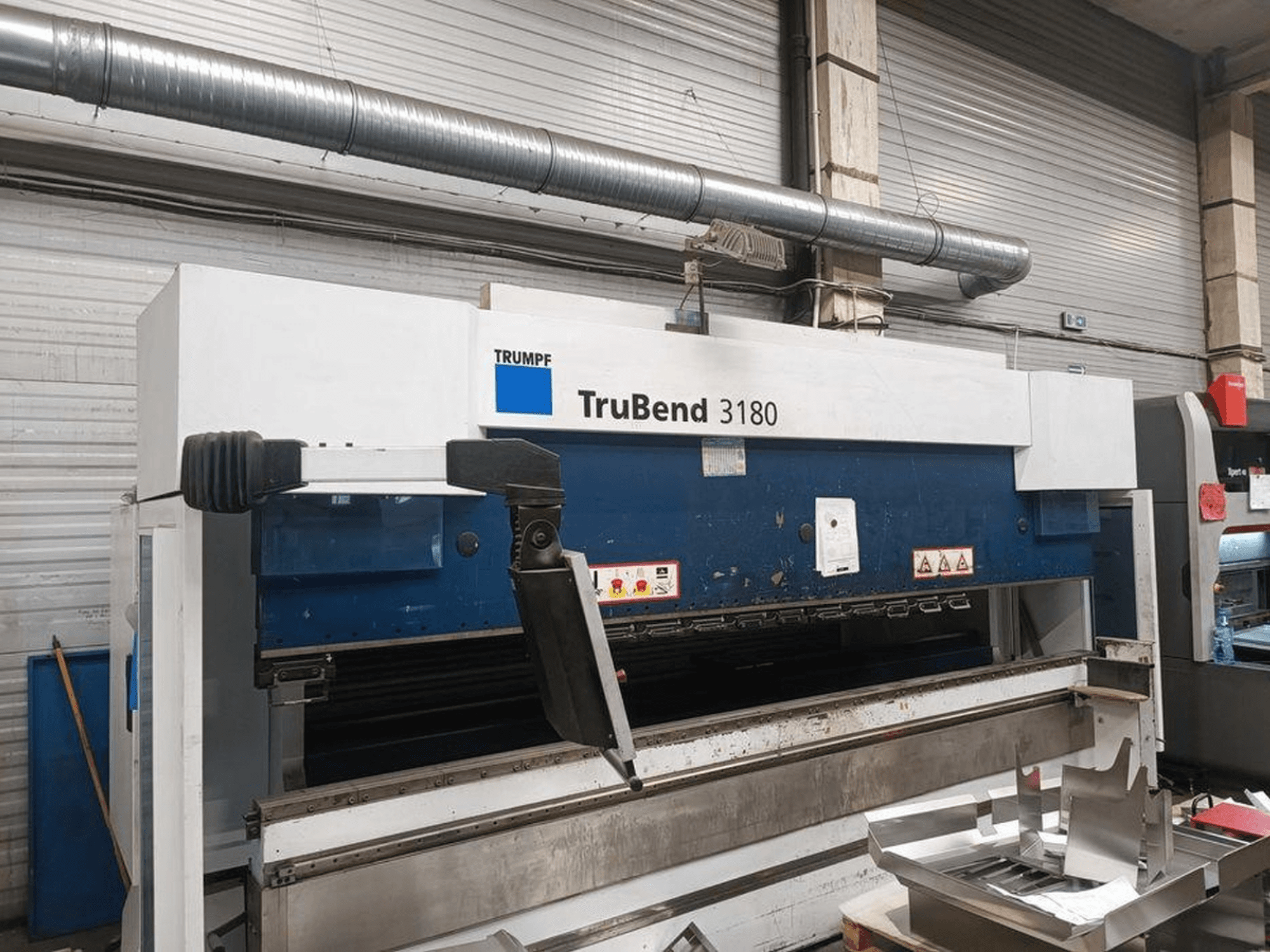

TRUMPF - TRUBEND 3180PL-BEN-TRU-2013-00001

• Installation height: 347 mm

• Maximum opening height (table to upper beam): 470 mm

• Beam tilt adjustment: ±3 mm

• Free-standing frame gap: 3680 mm

• Throat depth: 420 mm

• Table width: 150 mm

• Working height: 1000 mm

Axes & travel

• Y-axis rapid traverse: 200 mm/s

• Y-axis working speed: 10–15 mm/s

• Y-axis return speed: 180 mm/s

• Y-axis positioning accuracy: 0.01 mm

• X-axis maximum backgauge range: 880 mm

• X-axis speed: 500 mm/s

• X-axis positioning accuracy: 0.05 mm

• R-axis travel: 340 mm

• R-axis speed: 200 mm/s

• R-axis positioning accuracy: 0.1 mm

• CNC backgauge: 4 axes (X, R, Z1, Z2)

Control & clamping

• CNC control: Delem T3000 (standard 2-D graphical control)

• CNC control features: 2D + Colour

• Upper tool holder: TRUMPF

• Lower tool holder: Manual

• Clamping system: Quick Clamp

Electrical

• Voltage: 400 V

• Power consumption: 18.5 kW

• Tank heater: No

Included options

• Additional gauge finger: Yes

• Gauge finger: Standard

• Foot switch: Yes

• Colour: Standard white-blue
