- Trumpf TruLaser 5030 Laser cutting machine

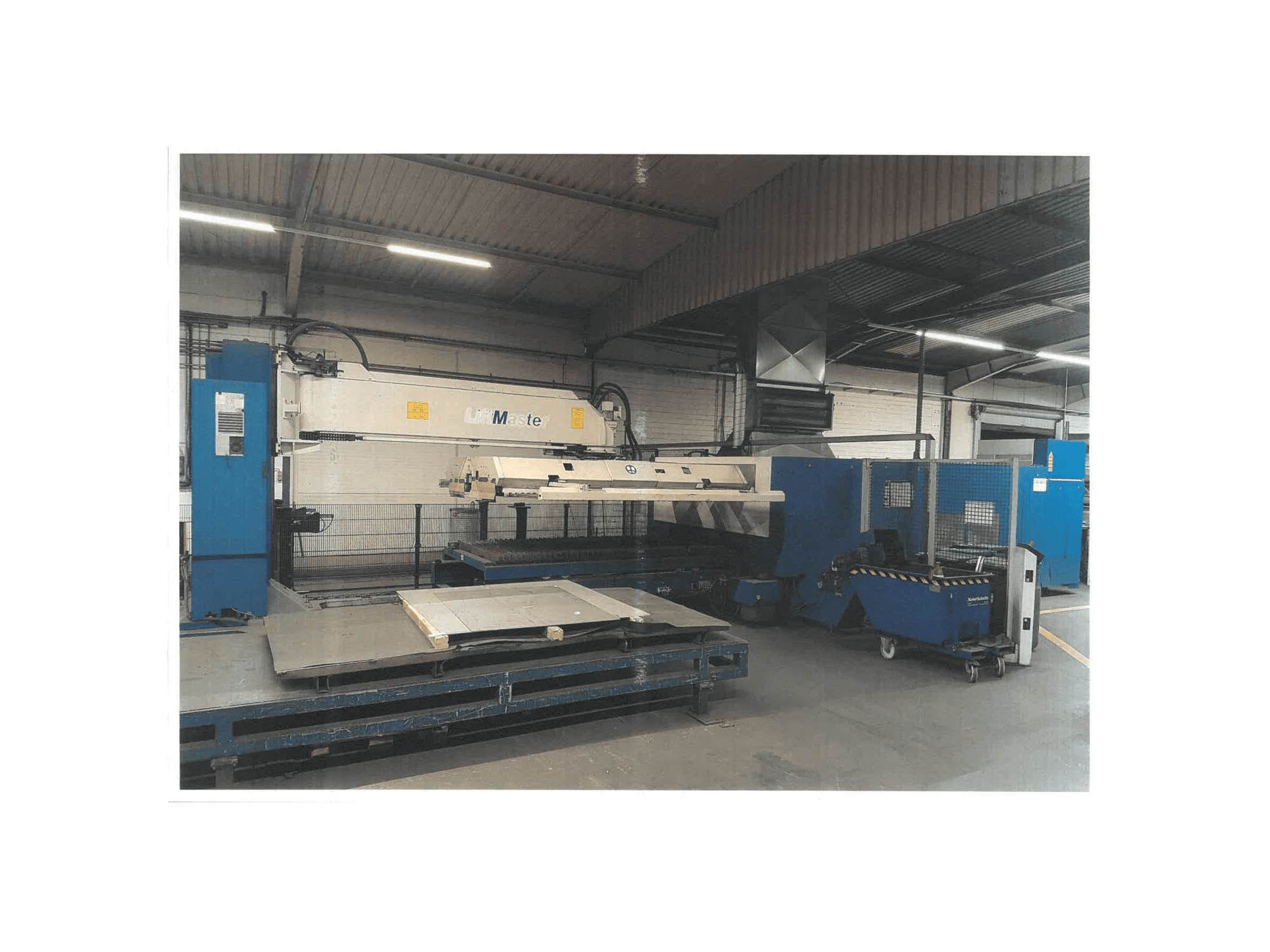

This Trumpf TruLaser 5030 Laser cutting machine was made in 2008 and has 65422 production hours, of which 33890 are laser hours. It is equipped with a Siemens Sinumerik 840 D control unit. The machine has a laser power of 5 kW.
Overview
- brand: TRUMPF
- year: 2008
- MODEL: TruLaser 5030
- production hours: 65322
- application type: Laser Cutting
- Location: Germany
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
- control unit brand: Siemens
Technical Information - TRUMPF TruLaser 5030
Control Unit
- Brand: Siemens
- Model: Sinumerik 840 D
Main drive
- Laserpower: 5 kW
- Laser type: CO2
Workpiece
- Workpiece weight: 900 kg
Table
- Outer length: 3000 mm
- Outer width: 1500 mm
Additional Information
- Technical Machine Benefits:
- - Feeding: automatic pallet changer (liftmaster)
- - Incl. Unloading rake and suction frame up to 900 kg
- - Material supply: automatic via sheet storage
- - Cutting capacity: mild steel up to 25 mm
- - Stainless steel up to 20 mm
- - Aluminum up to 12 mm
- - Liftmaster included
- - Cutting head: universal cutting head
- - Max. Speed: 200 m/min, cutting speeds up to 28 m/min
- Qualitative Machine Benefits:
- - Resonator renewed in 2018
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
