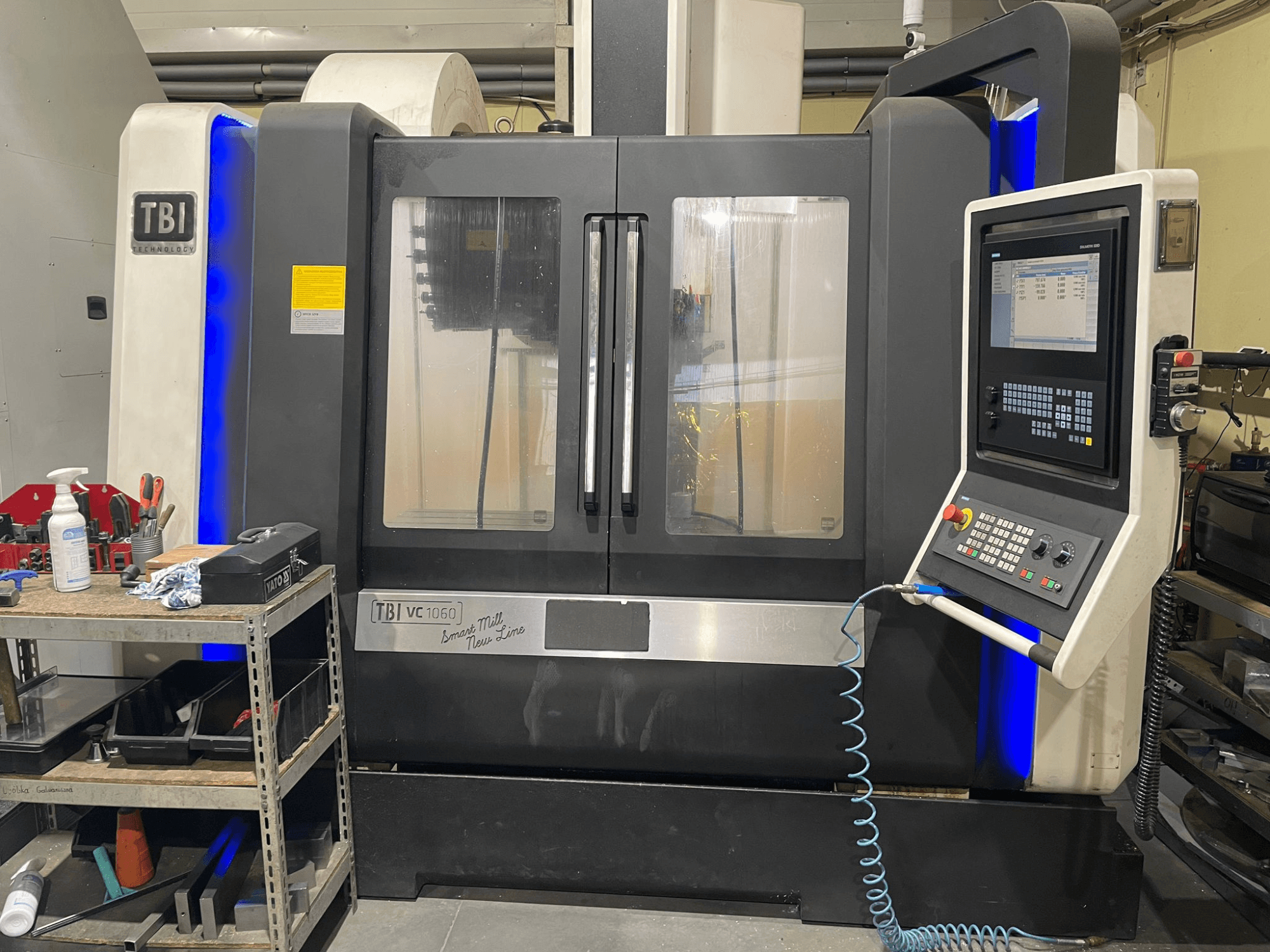

TBI VC 1060 HH Vertical Machining Centre, front view, showing control panel, dust cover, and illuminated blue accents.
TBI VC 1060 HH Vertical Machining Centre, front view, showing control panel, dust cover, and illuminated blue accents.

TBI - VC 1060 HHPL-MIL-TBI-2020-00001

Rs. 9,177,064
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis TBI VC 1060 HH was manufactured in 2020. It features an X-axis travel of 1000 mm, Y-axis travel of 600 mm, and Z-axis travel of 650 mm. The machine includes a robust table size of 1100 x 500 mm and a maximum table load of 1000 kg. If you are looking to get high-quality machining capabilities, consider the TBI VC 1060 HH vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: TBI
  • year: 2020
  • MODEL: VC 1060 HH
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - TBI VC 1060 HH

Control Unit

  • Control Brand: SIEMENS
  • Control Model: SINUMERIK 828D

Dimensions

  • Machine Height: 2800 mm
  • Machine Length: 2900 mm
  • Machine Weight: 6800 kg
  • Machine Width: 2100 mm
  • Table Load: 1000 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1000 mm
  • Y-axis Travel: 600 mm
  • Z-axis Travel: 650 mm

Technical Specification

  • Max. Tool Weight: 7 kg
  • Spindle Speed: 10000 RPM
  • Taper Size: SK 40

Additional Information

  • Rigid tapping (no compensation holder required)

  • Manual handwheel

  • Table size: 1100 × 500 mm

  • Distance spindle to table: 150–800 mm

  • Through-spindle coolant: 20 bar

  • Coolant tank capacity: 330 l; flow: 200 l/min

  • Rapid traverse (X/Y/Z): 36 / 36 / 36 m/min

  • Positioning accuracy: ±0.005 mm

  • Repeatability: ±0.003 mm

  • Linear guideways X/Y/Z (roller type)

  • Telescopic covers for X/Y/Z axes

  • Pneumatic counterbalance on Z-axis

  • Digital axis drives

  • Tool magazine: 24 positions (SK40), double arm

  • Max tool diameter: 80 mm; max tool length: 300 mm

  • Tool change time: 1.5 s (fast double-arm tool changer)

  • Spindle temperature stabilization

  • Spindle air purge system

  • Tool cooling: air and coolant

  • Central lubrication system

  • Electrical cabinet cooling

  • Data interface: V.24 / RS232-C / USB

  • Chip flushing system (bottom)

  • Total power: 35 kVA

Additional equipment

  • Integrated chip conveyor with bin

  • Oil skimmer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
