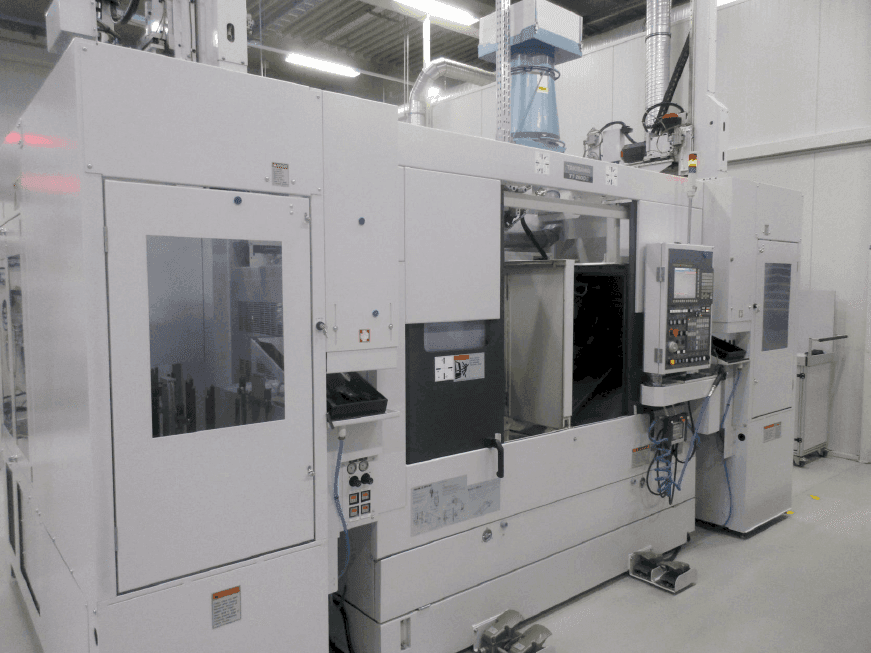

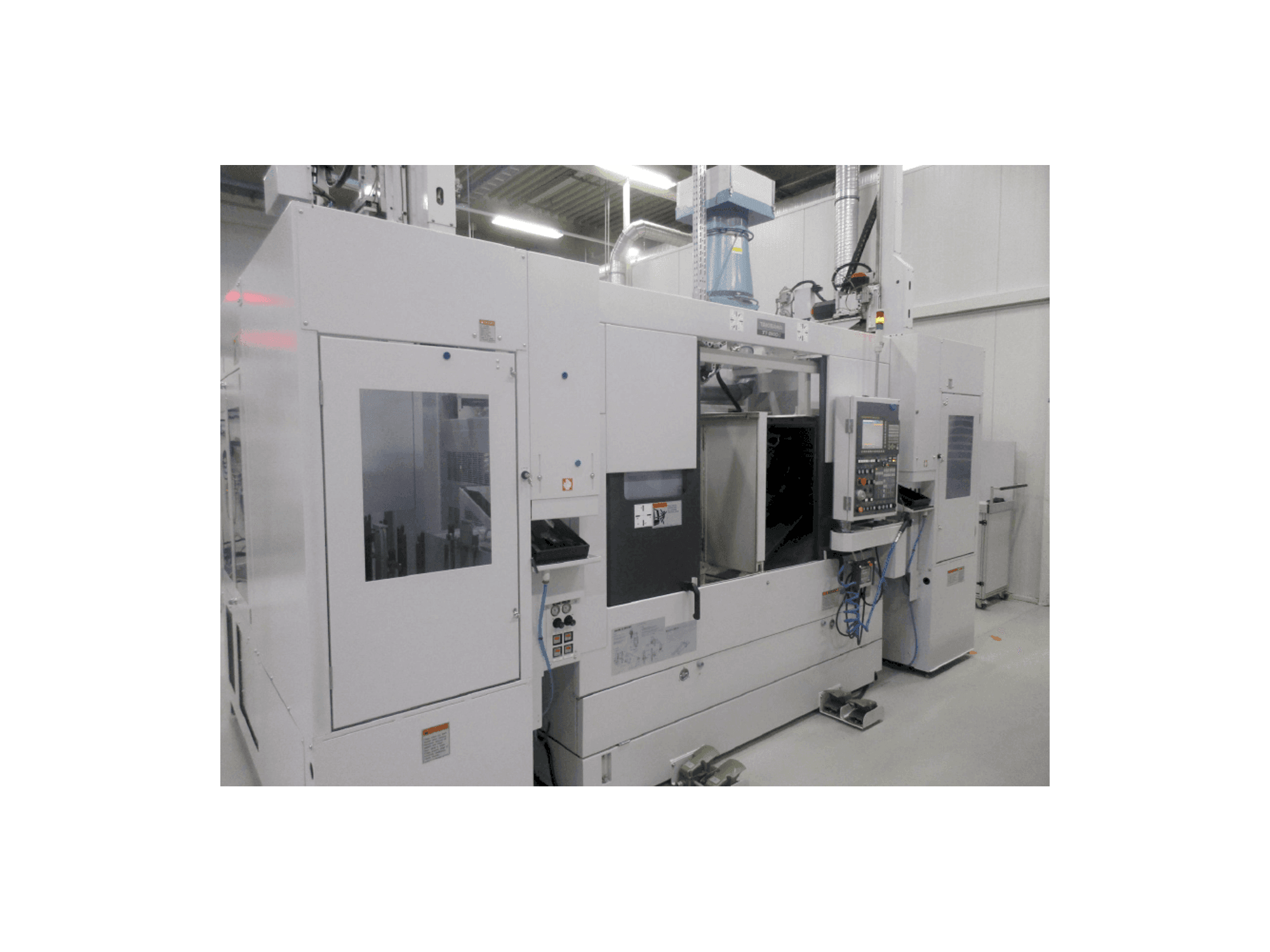

Front view of Takisawa TT-2600GD machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Takisawa TT-2600GD

Takisawa - TT-2600GDDE-TUR-TAK-2017-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Takisawa TT-2600GD Lathe

Show in original language

This Takisawa TT-2600GD Lathe was made in Japan in the year 2017. It has been working for only 2666 hours. It is controlled with a Fanuc Series 31i-Model B control unit. This machine can operate with a spindle speed up to 3200 rpm. It presents very good conditions.

Overview

brand: Takisawa
year: 2017
MODEL: TT-2600GD
production hours: 2666
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Takisawa TT-2600GD

Control Unit

Model: Series 31i-Model B
Brand: FANUC

Main drive

Spindle speed range: 3200 1/MIN
Spindle motor power: 11/15 kW

Media

Main electronic connection: 400 V - 50/60Hz

Additional equipment

- Including one set of tool holders without cutting tools.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Operating pressure 7-10 bar, piston area 48 cm/2
- - Tractive force at 40 bar 19 kn
- - 2 portal loaders type d with 1 magazine each right and left
- - 2 x gripper hand with 2 chucks for workpieces with a maximum of 2 x 8kg
- - 2 pieces 14-fold workpiece pallet magazine
- - Workpiece diameter maximum 200 mm, workpiece length maximum 120 mm, loading weight maximum 70 kg per pallet
- - Stacking height per pallet maximum 400 mm, turning station with 2 pieces 2 jaw chucks, automatic loading and unloading door (each spindle)
- - Basic holder for holding external turning tools 25x25 mm
- - U-drill holder with a bore of 40 diameter for holding

Extra information

- The machine is sold without clamping devices.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
